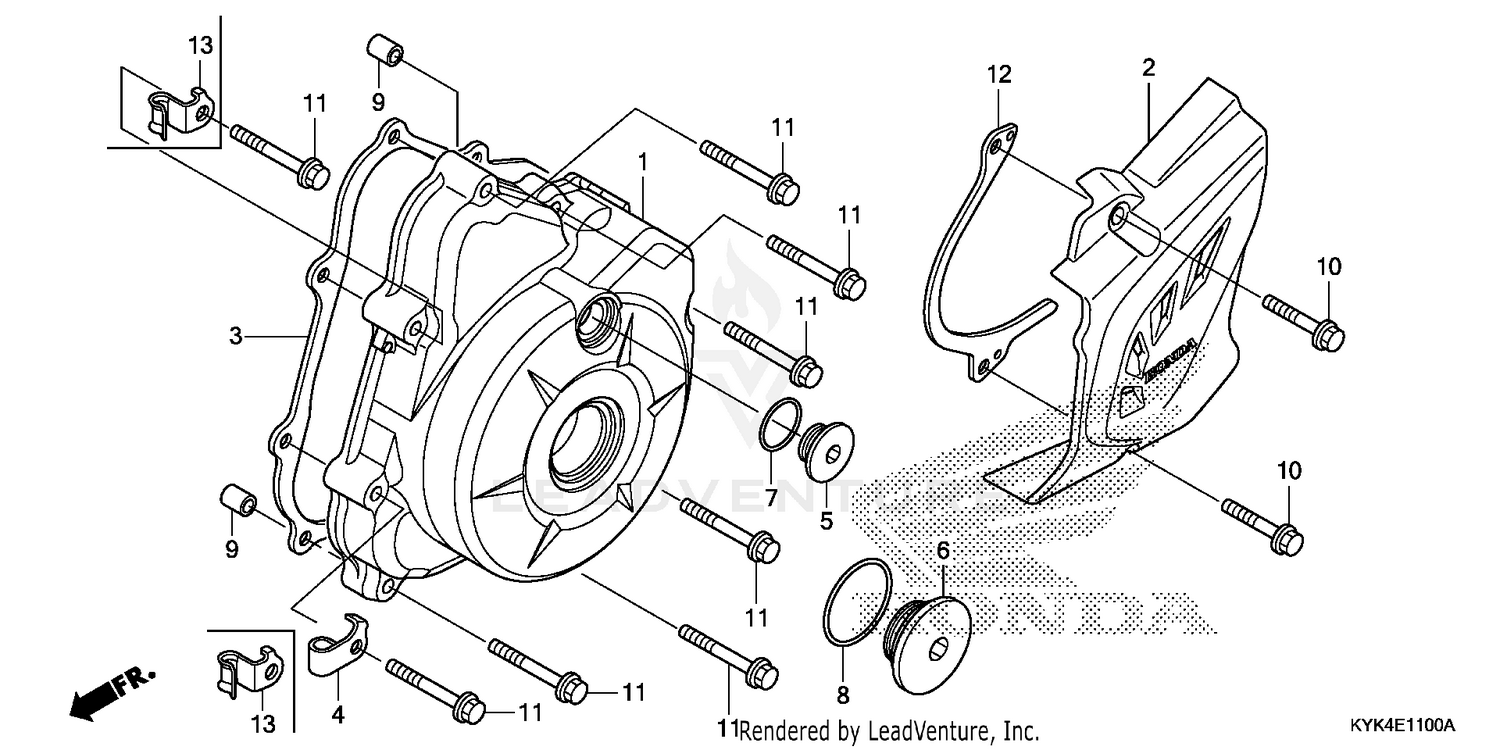

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-KWV-000
|
$72.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11361-KYK-910
|
$50.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. CRANKCASE COVER
11395-KWB-920
Superseded by 11395-K58-TC0
|
$13.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. CRANKCASE COVER
11395-K58-TC0
|
$13.31 | ||
|
Unavailable |
|||
|
#4
CLAMP, OVERFLOW
16236-KWW-A00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP (14MM)
90084-KTT-900
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP (30MM)
90087-KWW-C00
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (13.8X2.5)
91308-KVR-C00
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (30MM)
91312-KWW-C00
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, DRIVE CHAIN
11363-KYK-910
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
