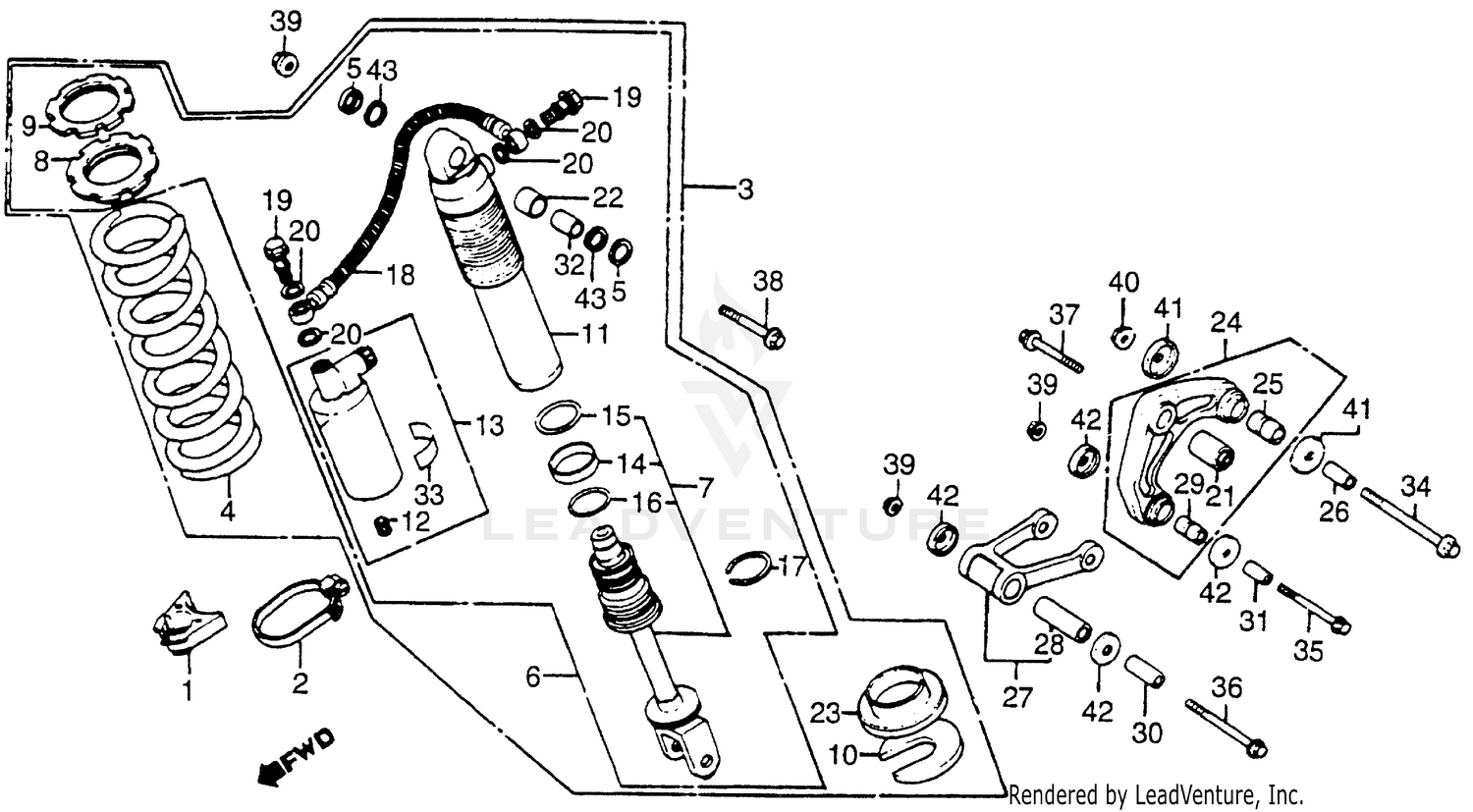

Rear Shock Absorber 83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-KA3-710
|
$5.58 | ||
|
Unavailable |
|||
|
#2
BAND, SUB-TANK (NOT AVAILABLE)
50252-KA3-710
Superseded by 50252-KA3-830
|
$15.63 | ||
|
Unavailable |
|||
|
#3
SHOCK ABSORBER ASSY.
52400-KA4-681
Superseded by 52400-KA4-682
|
$1,179.21 | ||
|
Unavailable |
|||
|
#3
SHOCK ABSORBER ASSY.
52400-KA4-682
|
$1,179.21 | ||
|
Unavailable |
|||
|
#3
SHOCK ABSORBER ASSY.
52400-KA4-682
|
$1,179.21 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (6.0 BLUE)
52401-KA4-681
|
$208.82 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (5.6 GREEN)
52401-KA4-711
|
$221.73 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (6.4 BLACK) (NOT AVAILABLE)
52402-KA4-681
|
$180.82 | ||
|
Unavailable |
|||
|
#5
CAP, DUST SEAL
52406-KB7-003
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, RR. (NOT AVAILABLE)
52410-KA4-681
Superseded by 52410-KA4-682
|
$858.21 | ||
|
Unavailable |
|||
|
#6
DAMPER, RR. (NOT AVAILABLE)
52410-KA4-682
|
$858.21 | ||
|
Unavailable |
|||
|
#7
ROD, PISTON
52421-KA4-681
|
$371.76 | ||
|
Unavailable |
|||
|
#8
ADJUSTER, SPRING
52422-MA0-003
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTER
52423-KA3-711
|
$25.55 | ||
|
Unavailable |
|||
|
#10
STOPPER, SPRING SEAT
52424-KA3-711
|
$15.07 | ||
|
Unavailable |
|||
|
#11
CASE, SHOCK ABSORBER
52425-KA4-711
|
$260.58 | ||
|
Unavailable |
|||
|
#12
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUB-TANK ASSY. (NOT AVAILABLE)
52430-KA3-711
|
$125.57 | ||
|
Unavailable |
|||
|
#14
RING, PISTON
52431-MA0-771
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (2.0X34.5) (NOT AVAILABLE)
52432-MA0-771
|
$2.45 | ||
|
Unavailable |
|||
|
#16
O-RING (3.5X33.7)
52434-KA3-681
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER
52435-MA0-771
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, JOINT
52440-KA3-711
Superseded by 52440-KA3-712
|
$95.73 | ||
|
Unavailable |
|||
|
#18
HOSE, JOINT
52440-KA3-712
|
$95.73 | ||
|
Unavailable |
|||
|
#18
HOSE, JOINT
52440-KA3-712
|
$95.73 | ||
|
Unavailable |
|||
|
#19
BOLT, OIL (10X22)
52441-KA3-711
|
$8.32 | ||
|
Unavailable |
|||
|
#20
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, SHOCK ABSORBER (LOWER)
52451-MA0-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH, SHOCK ABSORBER (UPPER)
52452-KB7-003
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT C, SPRING
52459-KA3-711
|
$35.01 | ||
|
Unavailable |
|||
|
#24
ARM ASSY., SHOCK ABSORBER
52460-KA3-710
|
$401.55 | ||
|
Unavailable |
|||
|
#25
BUSH, DAMPER ARM
52462-MA0-013
|
$23.97 | ||
|
Unavailable |
|||
|
#26
COLLAR, DAMPER ARM PIVOT
52463-MA0-010
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)
52470-KA4-710
|
$236.49 | ||
|
Unavailable |
|||
|
#28
BUSH, DAMPER CONNECTING ROD (NOT AVAILABLE)
52472-KA3-711
|
$28.49 | ||
|
Unavailable |
|||
|
#29
BUSH, RUBBER CONNECTING ROD
52472-MA0-013
|
$35.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR, CONNECTING ROD PIVOT (NOT AVAILABLE)
52473-KA3-710
|
$12.60 | ||
|
Unavailable |
|||
|
#31
COLLAR, CONNECTING ROD PIVOT
52473-MA0-010
Superseded by 52473-MA0-020
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR, SHOCK ABSORBER (UPPER)
52486-KB7-003
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-MA0-003
|
$4.73 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (12X105)
90128-KA4-003
|
$10.80 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (10X78)
90129-KA3-710
|
$13.41 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (10X98)
90130-KA3-710
|
$14.17 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (10X45) (NOT AVAILABLE)
90153-MA0-003
|
$4.27 | ||
|
Unavailable |
|||
|
#38
BOLT, SPECIAL FLANGE (10X58)
90182-KA4-003
Superseded by 90153-965-000
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (12MM)
90306-KA4-003
Superseded by 90306-181-761
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (12MM)
90306-181-761
|
$7.64 | ||
|
Unavailable |
|||
|
#41
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-711
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-712
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Unavailable |
|||
|
#42
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-711
Superseded by 91262-KA3-712
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-712
|
$14.09 | ||
|
Unavailable |
|||
|
#43
DUST SEAL B
91351-KB7-003
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
