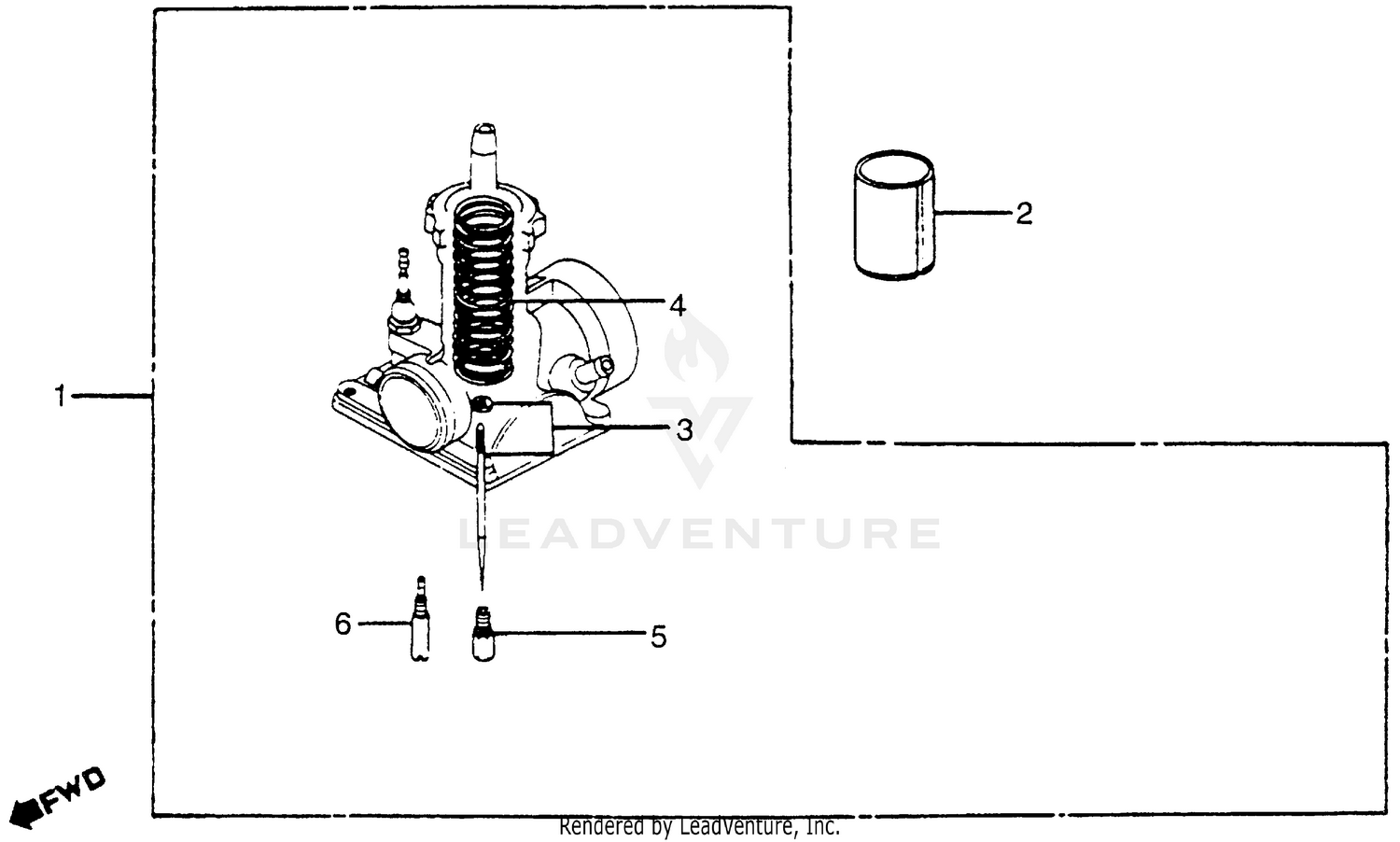

Carburetor Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PARTS KIT, CARBURETOR OPTIONAL
16020-KA4-711
|
$303.77 | ||
|
Unavailable |
|||
|
#2
VALVE, THROTTLE (#3.0)
16111-KA4-813
|
$108.03 | ||
|
Unavailable |
|||
|
#2
VALVE, THROTTLE (#4.0) (NOT AVAILABLE)
16111-KA4-823
|
$79.32 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16204-KA4-004
|
$17.31 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16205-KA4-004
|
$16.70 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16206-KA4-004
Superseded by 16012-KA3-004
|
$14.99 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16207-KA4-004
|
$15.62 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16208-KA4-004
|
$14.72 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16209-KA4-004
|
$14.72 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16201-KA4-711
|
$20.04 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16202-KA4-711
|
$22.76 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16203-KA4-711
|
$22.76 | ||
|
Unavailable |
|||
|
#4
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16210-KA5-004
|
$13.27 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#145)
99101-357-1450
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#148)
99101-357-1480
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#150)
99101-357-1500
Superseded by 99113-GHB-1500
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#152)
99101-357-1520
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#155) JET, MAIN (#158)
99101-357-1550
Superseded by 99113-GHB-1550
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#162)
99101-357-1620
Superseded by 99113-GHB-1620
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#165)
99101-357-1650
Superseded by 99113-GHB-1650
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#168)
99101-357-1680
Superseded by 99113-GHB-1680
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#170)
99101-357-1700
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#172)
99101-357-1720
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#150)
99113-GHB-1500
|
$11.11 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#155)
99113-GHB-1550
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#165)
99113-GHB-1650
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#170)
99113-GHB-1700
Superseded by 99101-357-1700
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#172) JET, MAIN (#155)
99113-GHB-1720
Superseded by 99101-357-1720
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#142)
99101-357-1420
|
$10.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
JET, MAIN (#160)
99101-357-1600
Superseded by 99113-GHB-1600
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#160)
99113-GHB-1600
|
$11.44 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#68)
99103-441-0680
|
$12.07 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#78) (NOT AVAILABLE)
99103-441-0780
|
$9.91 | ||
|
Unavailable |
|||
