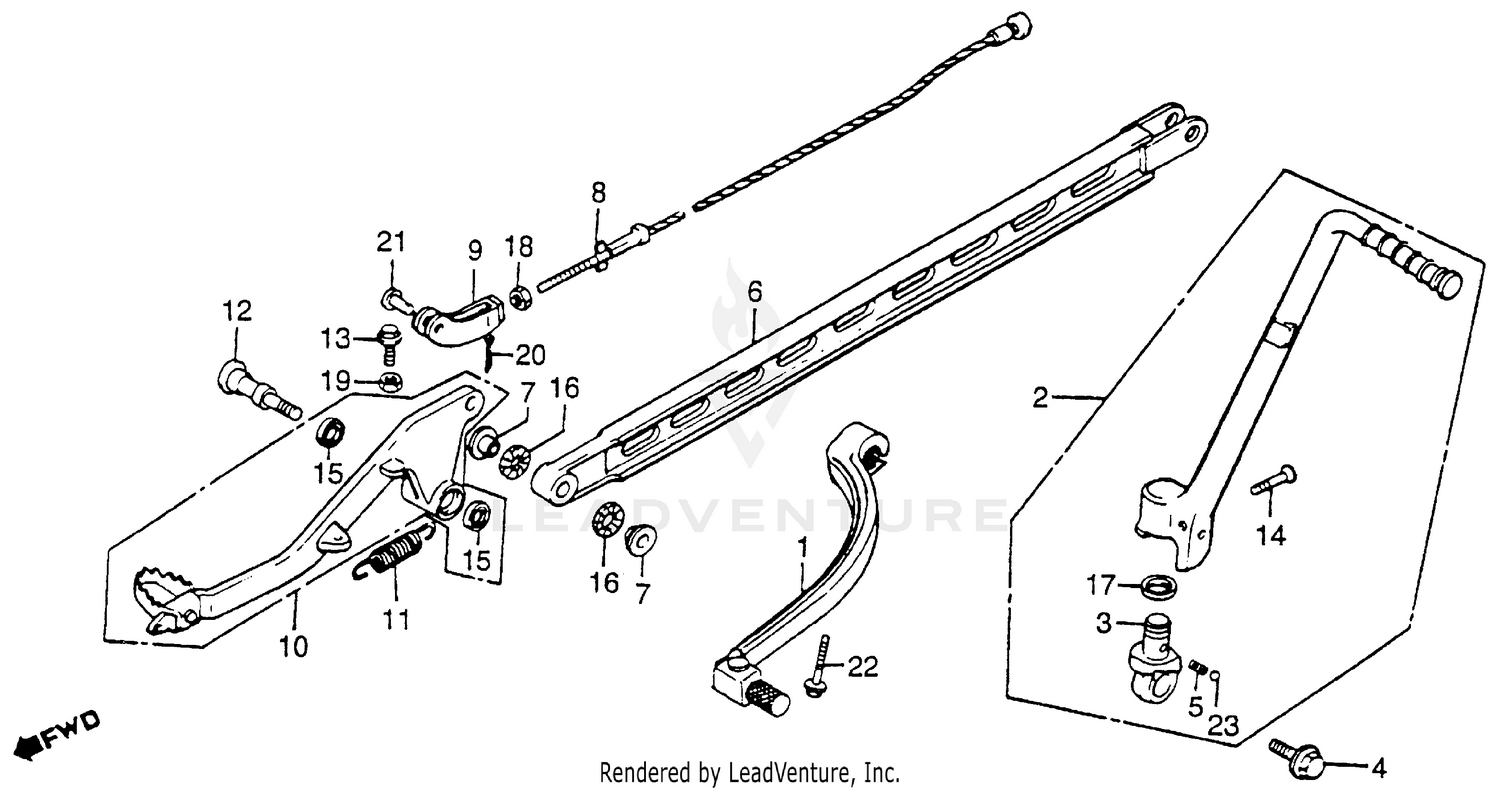

Gearshift Pedal + Brake Pedal + Kick Starter Arm 83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT (NOT AVAILABLE)
24700-KA4-710
|
$77.46 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-KA4-710
|
$93.45 | ||
|
Unavailable |
|||
|
#3
JOINT, KICK ARM (NOT AVAILABLE)
28302-KA4-710
|
$72.05 | ||
|
Unavailable |
|||
|
#4
BOLT, KICK JOINT
28306-KA4-700
|
$8.61 | ||
|
Unavailable |
|||
|
#5
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, RR. BRAKE STOPPER
43431-KA4-711
|
$130.95 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. BRAKE STOPPER ARM
43432-KA3-710
|
$8.78 | ||
|
Unavailable |
|||
|
#8
CABLE, RR. BRAKE (NOT AVAILABLE)
43451-KA4-710
|
$8.45 | ||
|
Unavailable |
|||
|
#9
JOINT, RR. BRAKE (NOT AVAILABLE)
43458-KA4-710
|
$9.85 | ||
|
Unavailable |
|||
|
#10
PEDAL, BRAKE (NOT AVAILABLE)
46510-KA4-710
|
$184.49 | ||
|
Unavailable |
|||
|
#11
SPRING, BRAKE PEDAL
46511-KA4-710
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, BRAKE PIVOT (NOT AVAILABLE)
46513-KA5-770
|
$18.11 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X20)
90015-KA4-710
|
$1.99 | ||
|
Unavailable |
|||
|
#14
BOLT, KICK ARM
90101-KA4-700
Superseded by 90101-MAC-680
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, KICK ARM
90101-MAC-680
|
$7.44 | ||
|
Unavailable |
|||
|
#15
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST SEAL (13X18X3)
91272-KA3-711
Superseded by 91272-KA3-712
|
$8.30 | ||
|
Unavailable |
|||
|
#16
DUST SEAL (13X18X3)
91272-KA3-712
|
$8.30 | ||
|
Unavailable |
|||
|
#17
DUST, SEAL (19X25X3)
91303-KA4-003
|
$1.88 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06080-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN B, BRAKE ROD JOINT
95015-52000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
