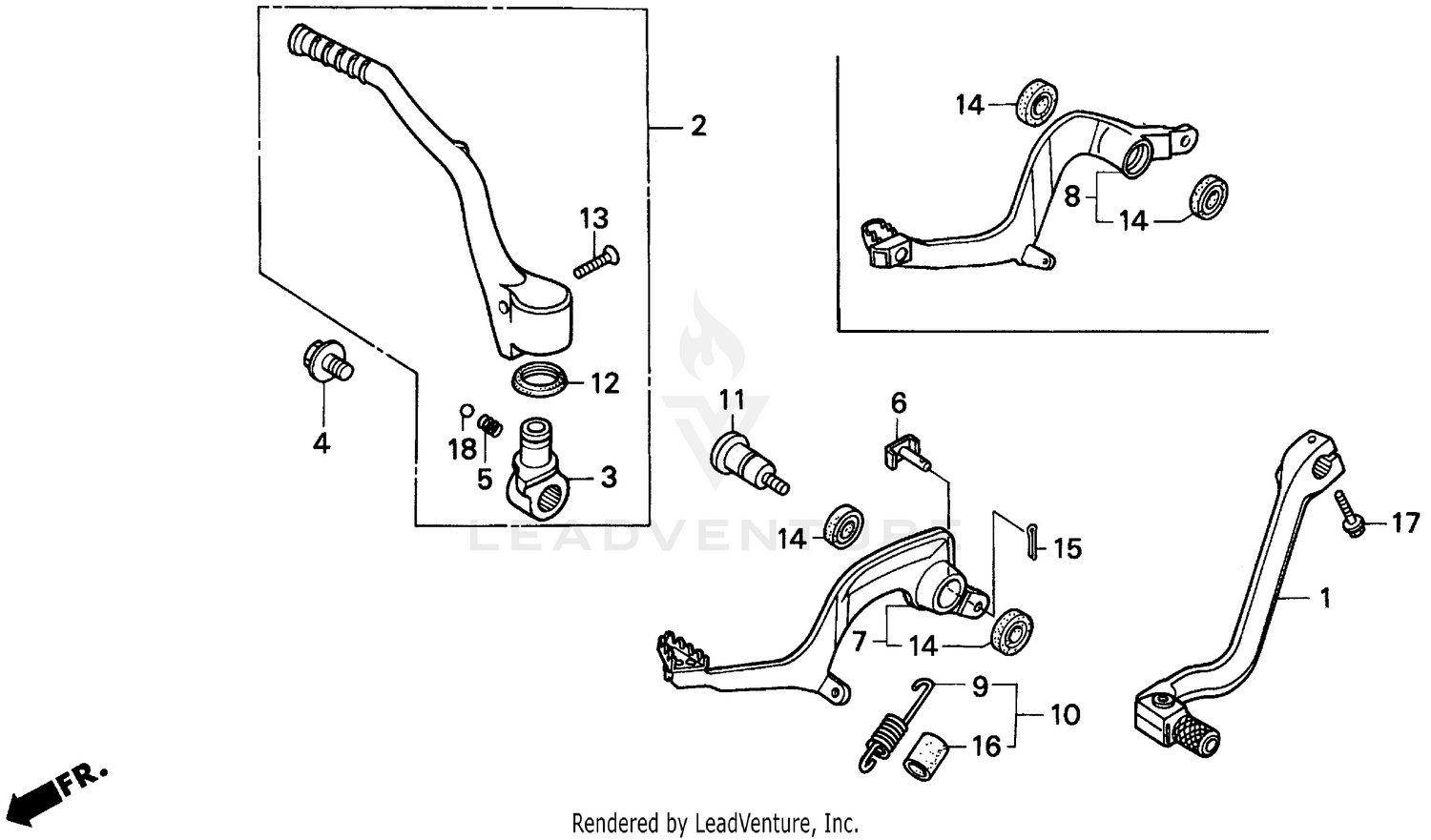

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-KZ3-860
Superseded by 24700-KZ3-890
|
$79.04 | ||
|
Unavailable |
|||
|
#1
PEDAL, GEARSHIFT
24700-KZ3-890
|
$79.04 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KZ3-860
Superseded by 28300-KZ3-A10
|
$176.13 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KZ3-600
Superseded by 28300-KZ3-A10
|
$176.13 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KZ3-A10
|
$176.13 | ||
|
Unavailable |
|||
|
#3
JOINT, KICK ARM
28302-KZ3-860
|
$75.44 | ||
|
Unavailable |
|||
|
#4
BOLT, KICK JOINT
28306-KA3-830
Superseded by 28306-KAE-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-KAE-000
|
$14.40 | ||
|
Unavailable |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
Unavailable |
|||
|
#7
PEDAL, RR. BRAKE
46510-KZ3-860
|
$89.54 | ||
|
Unavailable |
|||
|
#10
SPRING ASSY., BRAKE PEDAL
46512-KZ3-860
Superseded by 46512-KZ4-710
|
$7.40 | ||
|
Unavailable |
|||
|
#10
SPRING ASSY., BRAKE PEDAL
46512-KZ4-710
|
$7.40 | ||
|
Unavailable |
|||
|
#11
SHAFT, BRAKE PIVOT
46513-KZ3-860
Superseded by 46513-KZ3-600
|
$19.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, BRAKE PIVOT
46513-KZ3-600
|
$19.69 | ||
|
Unavailable |
|||
|
#12
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, KICK ARM
90101-KA4-700
Superseded by 90101-MAC-680
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, KICK ARM
90101-MAC-680
|
$7.44 | ||
|
Unavailable |
|||
|
#14
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BULK HOSE, VINYL (13X15X8000) (13X15X40)
95003-43008-10M
|
$63.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
