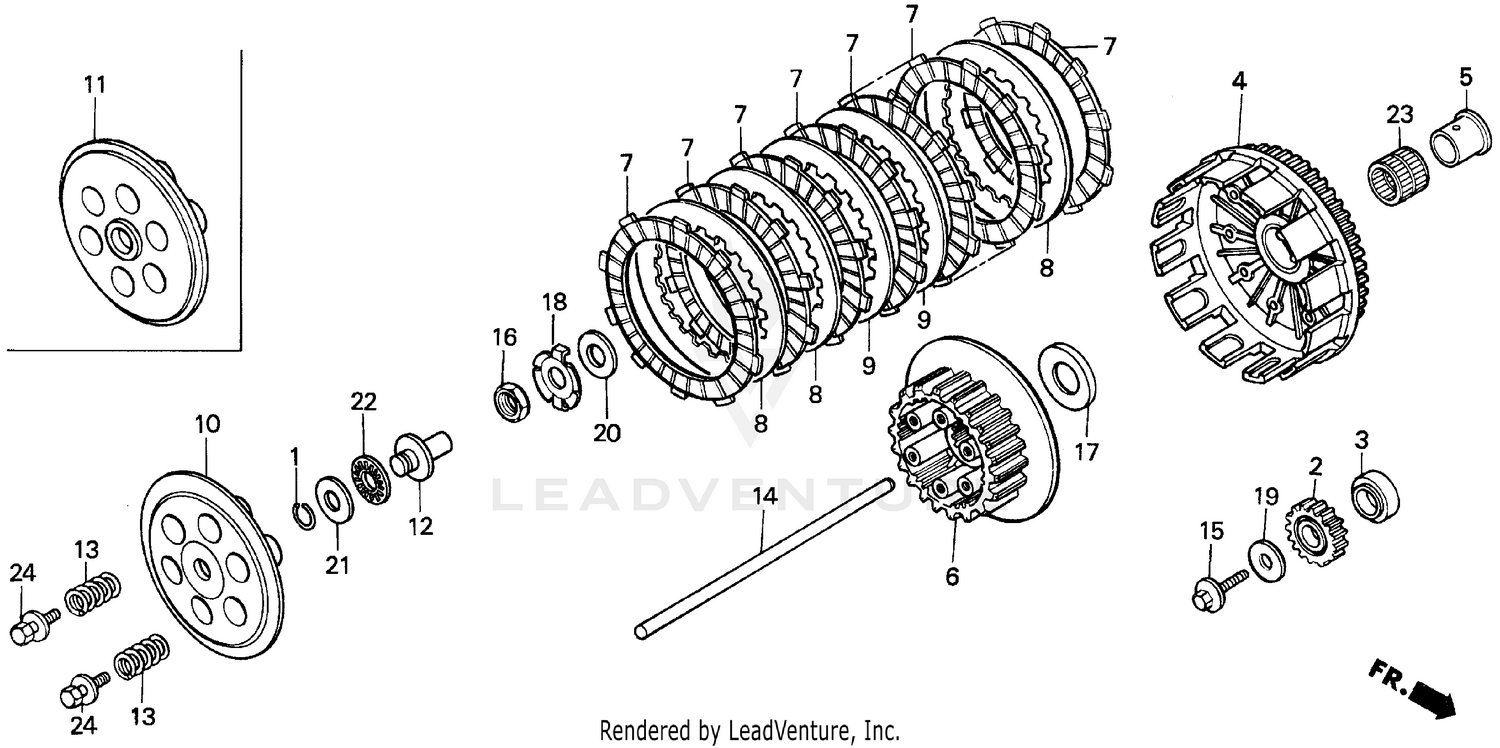

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVE (21T)
13615-KS7-000
|
$73.09 | ||
|
Unavailable |
|||
|
#3
COLLAR, DRIVE GEAR
13617-ML3-000
|
$63.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH (OUTER)
22100-KZ3-J20
Superseded by 22100-KSK-670
|
$447.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH (OUTER)
22100-KZ3-L10
Superseded by 22100-KSK-670
|
$447.09 | ||
|
Unavailable |
|||
|
#4
CLUTCH (OUTER)
22100-KZ3-860
Superseded by 22100-KSK-670
|
$447.09 | ||
|
Unavailable |
|||
|
#4
CLUTCH (OUTER)
22100-KZ3-861
Superseded by 22100-KSK-670
|
$447.09 | ||
|
Unavailable |
|||
|
#4
CLUTCH (OUTER)
22100-KZ3-862
Superseded by 22100-KSK-670
|
$447.09 | ||
|
Unavailable |
|||
|
#5
COLLAR, CLUTCH (OUTER)
22106-KS7-000
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
CENTER, CLUTCH
22120-KZ3-860
Superseded by 22120-MEN-A00
|
$146.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CENTER, CLUTCH
22120-KZ3-861
Superseded by 22120-MEN-A00
|
$146.05 | ||
|
Unavailable |
|||
|
#6
CENTER, CLUTCH
22120-KZ3-B10
Superseded by 22120-MEN-A00
|
$146.05 | ||
|
Unavailable |
|||
|
#6
CENTER, CLUTCH
22120-KZ3-B11
Superseded by 22120-MEN-A00
|
$146.05 | ||
|
Unavailable |
|||
|
#6
CENTER, CLUTCH
22120-KZ3-862
Superseded by 22120-MEN-A00
|
$146.05 | ||
|
Unavailable |
|||
|
#7
DISK, CLUTCH FRICTION
22201-KZ3-730
|
$26.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE B, CLUTCH
22321-KA4-740
Superseded by 22321-KA4-741
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE B, CLUTCH
22321-KA4-741
|
$20.09 | ||
|
Unavailable |
|||
|
#9
PLATE B, CLUTCH
22321-KA4-740
Superseded by 22321-KA4-741
|
$20.09 | ||
|
Unavailable |
|||
|
#9
PLATE B, CLUTCH
22321-KA4-741
|
$20.09 | ||
|
Unavailable |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-KZ3-860
|
$94.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIECE, CLUTCH LIFTER
22352-ML3-910
|
$44.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH (BLUE)
22401-KZ3-860
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CLUTCH LIFTER
22851-KA4-740
Superseded by 22851-KZ3-J20
|
$25.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (10X25)
90013-430-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT (18MM)
90235-KA4-000
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (23X48)
90421-HA2-010
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK (18MM)
90461-KA4-000
Superseded by 90461-MAC-740
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK (18MM)
90461-MAC-740
|
$9.76 | ||
|
Unavailable |
|||
|
#19
WASHER, PLAIN (10MM)
90401-ML3-790
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (18X32X2)
90501-ML3-910
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (12MM)
90608-072-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (12MM)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (12MM) (TOMUSON)
91001-147-006
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (28X32X27.2) (TOMUSON)
91021-ML3-004
Superseded by 91021-ML3-003
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (28X32X27.2) (TOMUSON)
91021-ML3-003
|
$21.65 | ||
|
Unavailable |
|||
|
#24
BOLT-WASHER (6X20)
93404-06020-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
