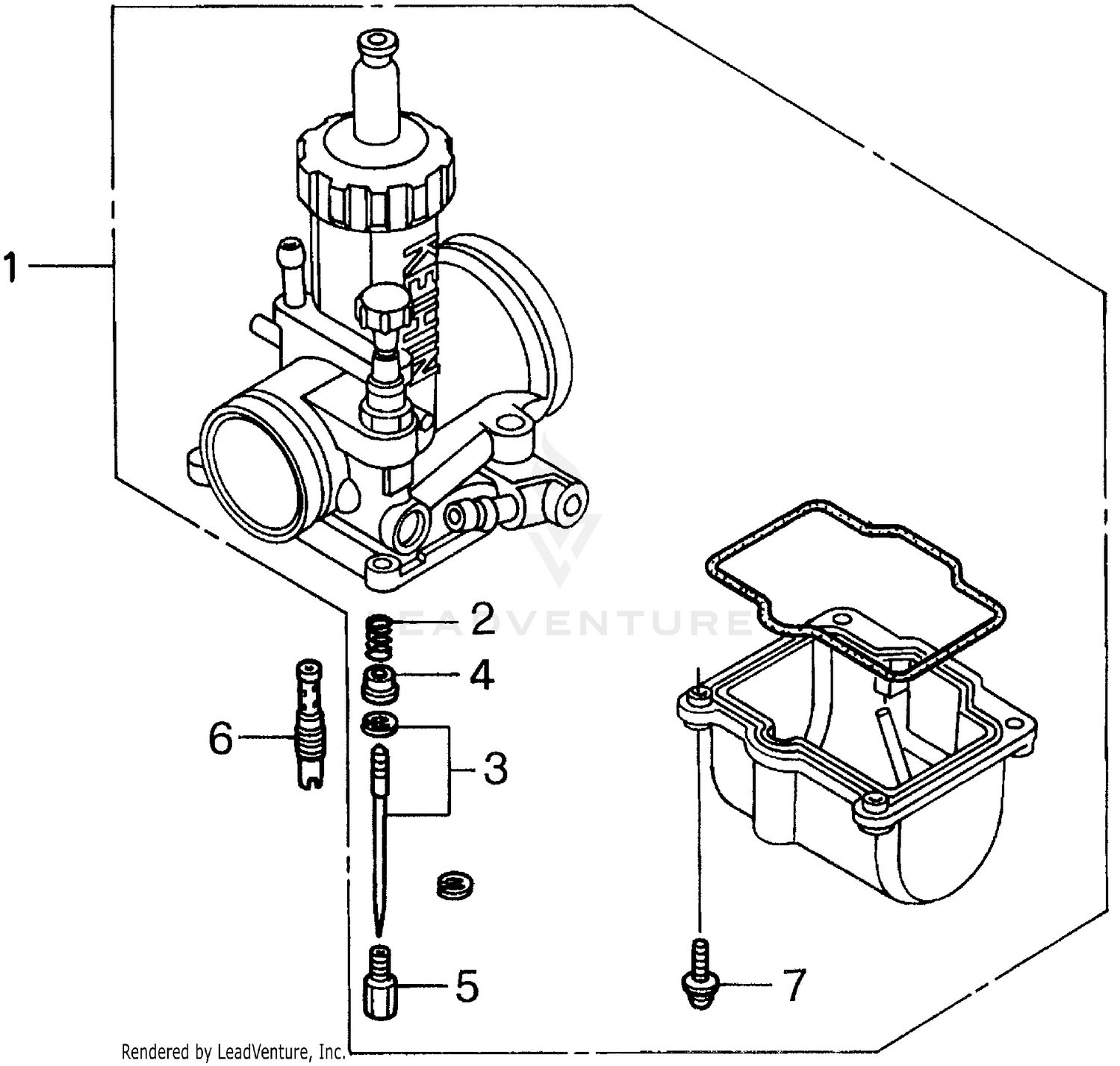

Carburetor O.p. Parts Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PARTS KIT, CARBURETOR OPTIONAL
16020-KZ3-700
|
$162.59 | ||
|
Unavailable |
|||
|
#2
SPRING, COMPRESSION COIL
16051-KA3-761
|
$18.75 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (R1372NS)
16201-ML3-681
|
$19.92 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (R1370NS)
16012-ML3-681
|
$18.52 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (R1369NS)
16012-ML3-910
|
$19.28 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (R1368NS)
16202-ML3-681
|
$22.44 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (R1371NS) (NOT AVAILABLE)
16202-ML3-910
|
$14.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SPRING SETTING
16066-KA3-761
|
$3.49 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#170)
99101-357-1700
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#172)
99101-357-1720
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#178)
99101-357-1780
Superseded by 99113-GHB-1780
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#180)
99101-357-1800
Superseded by 99113-GHB-1800
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#182)
99101-357-1820
Superseded by 99113-GHB-1820
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#185)
99101-357-1850
Superseded by 99113-GHB-1850
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#182)
99113-GHB-1820
|
$11.44 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#168)
99101-357-1680
Superseded by 99113-GHB-1680
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#185)
99113-GHB-1850
|
$11.44 | ||
|
Unavailable |
|||
|
#5
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#165)
99101-357-1650
Superseded by 99113-GHB-1650
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#165)
99113-GHB-1650
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#170)
99113-GHB-1700
Superseded by 99101-357-1700
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#172) JET, MAIN (#155)
99113-GHB-1720
Superseded by 99101-357-1720
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#178)
99113-GHB-1780
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#180)
99113-GHB-1800
|
$11.40 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#60)
99103-KA3-0600
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, SLOW (#52)
99103-440-0520
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, SLOW (#60)
99103-440-0600
Superseded by 99103-KA3-0600
|
$11.11 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#58)
99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#50)
99103-440-0500
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, SLOW (#58)
99103-440-0580
Superseded by 99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
|
#7
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#7
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
