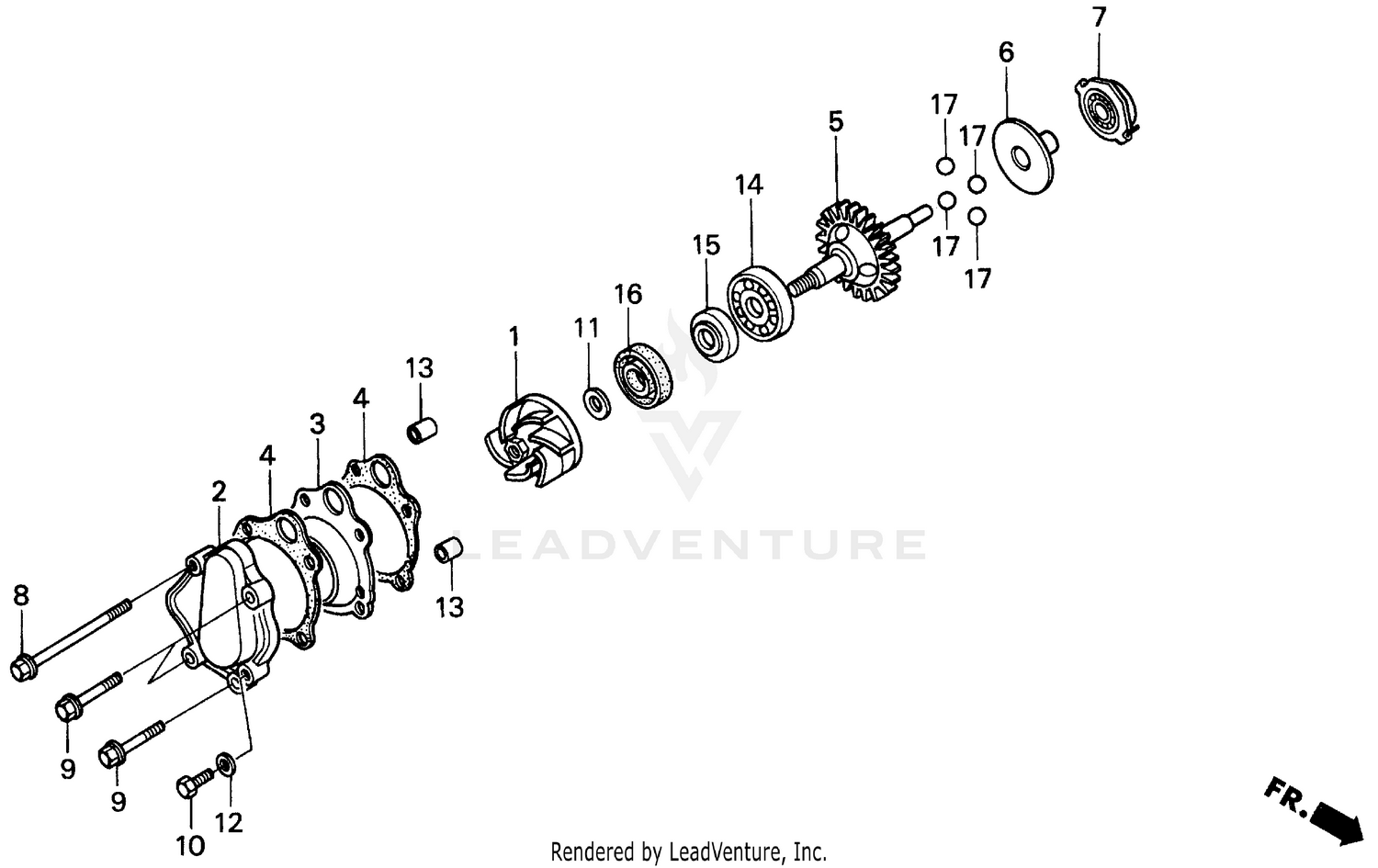

Water Pump 90-91 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER, WATER PUMP
19215-KA3-740
|
$76.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, WATER PUMP (NOT AVAILABLE)
19221-KA4-770
|
$71.72 | ||
|
Unavailable |
|||
|
#3
SEPARATOR, WATER PUMP
19222-KA4-770
|
$8.70 | ||
|
Unavailable |
|||
|
#4
GASKET, WATER PUMP COVER
19229-KA4-309
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, WATER PUMP COVER
19229-KA4-770
Superseded by 19229-KA4-309
|
$4.82 | ||
|
Unavailable |
|||
|
#5
SHAFT, WATER PUMP
19240-KA4-770
|
$88.91 | ||
|
Unavailable |
|||
|
#6
PLATE, GOVERNOR
19251-KA4-770
|
$11.82 | ||
|
Unavailable |
|||
|
#7
RELEASE (NOT AVAILABLE)
19260-KS7-010
|
$16.74 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X75)
90015-KS6-700
|
$4.20 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X30)
90016-ML3-680
|
$3.43 | ||
|
Unavailable |
|||
|
#10
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN, DOWEL (8X10)
90701-679-000
Superseded by 94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Unavailable |
|||
|
#14
BEARING, RADIAL BALL (12X28X7) (TOYO)
91001-KA4-003
|
$20.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (12X28X7) (NTN)
91001-KA4-004
Superseded by 91001-KA4-003
|
$20.69 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#16
SEAL, WATER PUMP (NOK)
91211-KA3-761
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL, STEEL (#13) (13/32)
96211-13000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
