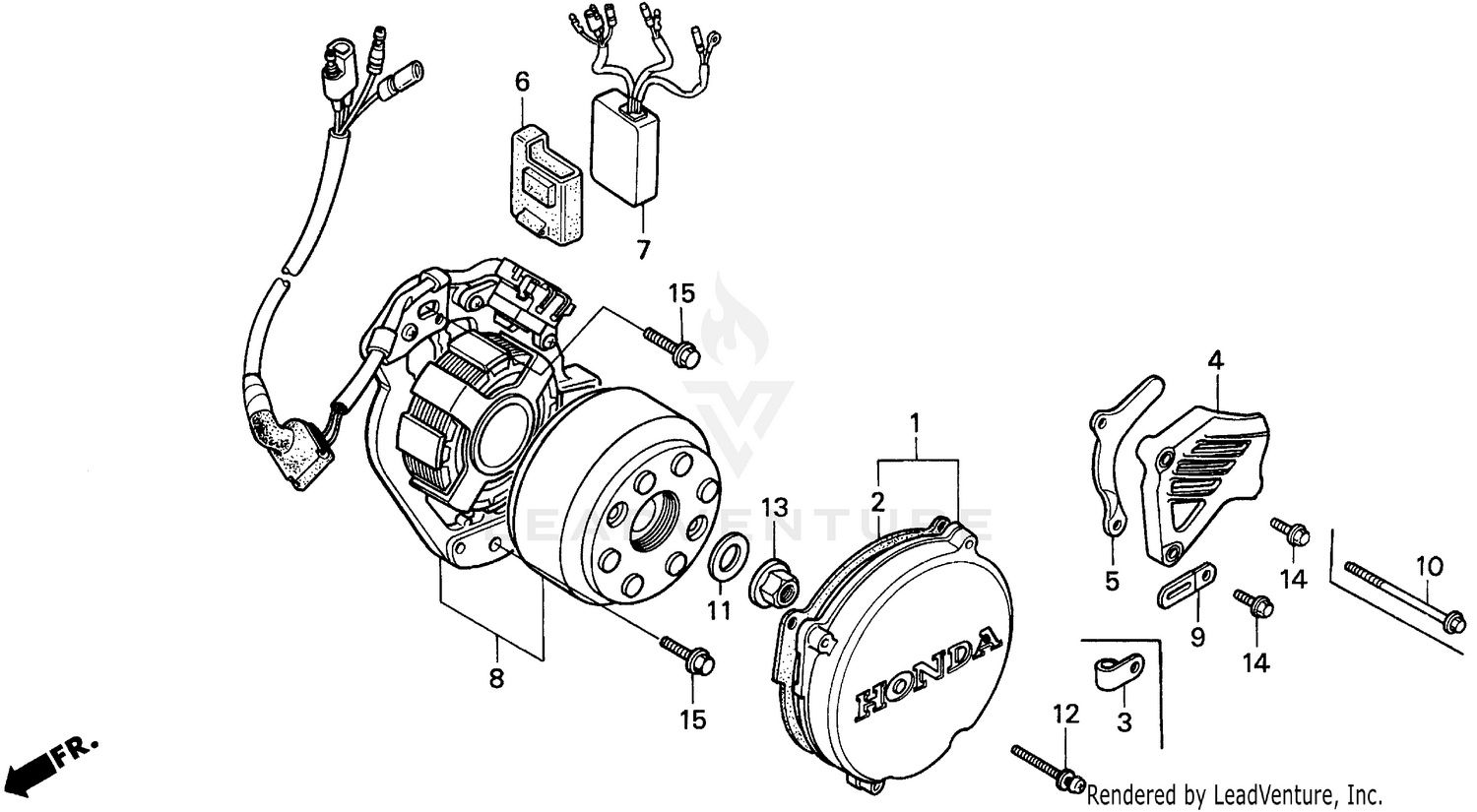

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11350-KA4-771
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L. COVER
11352-KA4-771
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, OVERFLOW PIPE
16236-045-010
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, DRIVE SPROCKET
23810-ML3-010
|
$23.42 | ||
|
Unavailable |
|||
|
#5
GUIDE, DRIVE CHAIN
23812-KA4-740
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUSPENSION, IGNITION CONTROL MODULE
30401-ML3-681
Superseded by 30401-KZ3-861
|
$12.83 | ||
|
Unavailable |
|||
|
#6
SUSPENSION, IGNITION CONTROL MODULE
30401-KZ3-861
|
$12.83 | ||
|
Unavailable |
|||
|
#7
MODULE, IGNITION CONTROL (CDI)
30410-KZ3-004
|
$248.08 | ||
|
Unavailable |
|||
|
#8
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KZ3-701
|
$565.60 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X115)
90053-ML3-000
Superseded by 96001-06115-07
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X115)
96001-06115-07
|
$4.33 | ||
|
Unavailable |
|||
|
#11
WASHER, PLAIN (12MM)
90437-611-000
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW-WASHER (6X28)
93891-06028-07
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X32)
96001-06032-07
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
