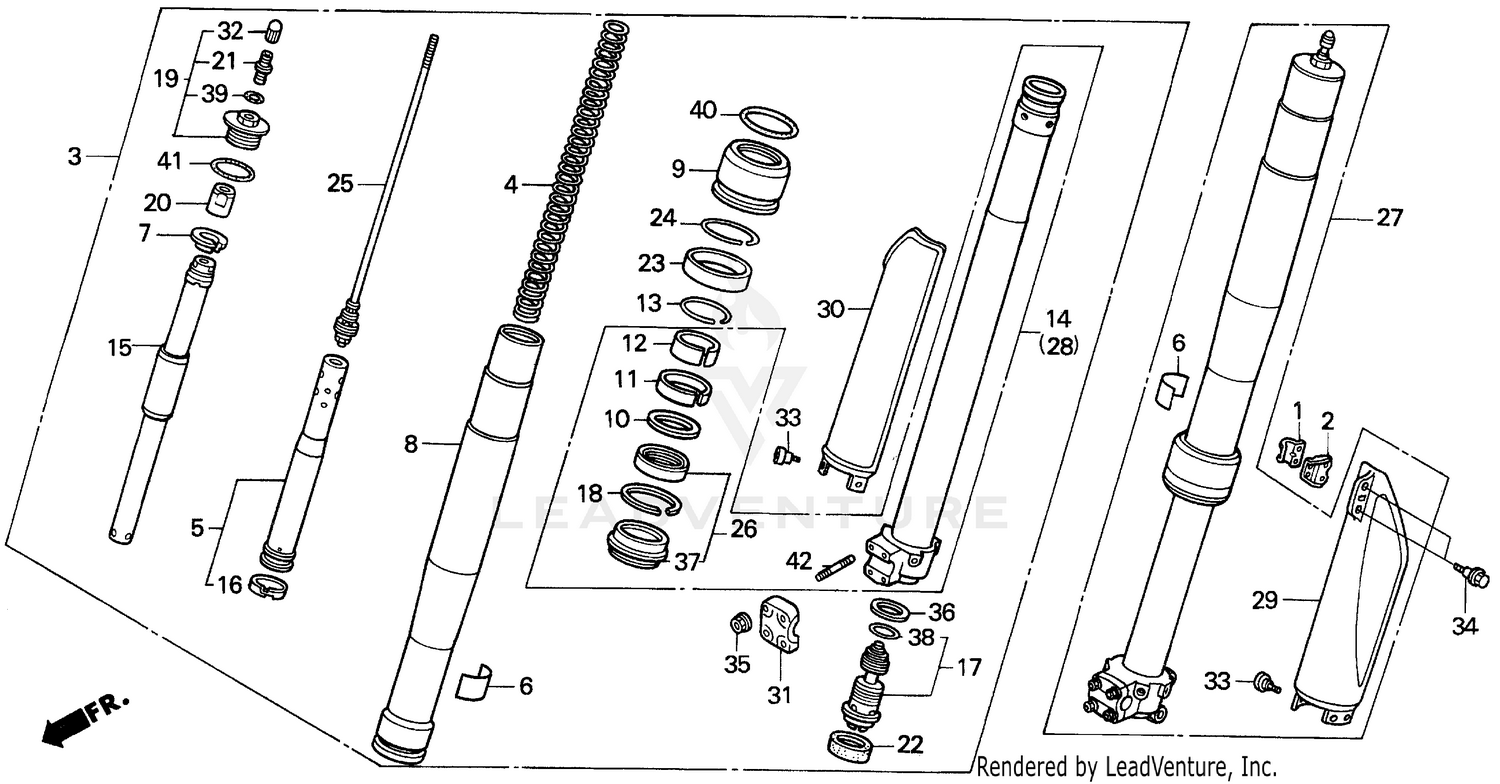

Front Fork 90 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, FR. BRAKE CABLE
45461-KA3-710
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, FR. BRAKE CABLE
45462-KA3-710
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK ASSY., R. FR. (SHOWA)
51400-KZ3-771
|
$1,357.14 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (3.73N/MM, 0.38KGF/MM) (SHOWA)
51401-KZ3-701
|
$77.92 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (3.53N/MM, 0.36KGF/MM) (SHOWA) SPRING, FR. FORK (0.40KG/MM)
51401-KZ4-701
|
$88.85 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (0.40KG/MM) (SHOWA)
51401-ML3-921
|
$69.01 | ||
|
Unavailable |
|||
|
#5
COLLAR, SPRING (SHOWA)
51404-KZ3-701
|
$145.34 | ||
|
Unavailable |
|||
|
#6
LABEL
51405-ML3-911
|
$2.96 | ||
|
Unavailable |
|||
|
#7
STOPPER, SPRING SEAT (SHOWA)
51406-ML3-911
|
$17.02 | ||
|
Unavailable |
|||
|
#8
TUBE (OUTER) (SHOWA)
51410-KZ3-701
|
$463.08 | ||
|
Unavailable |
|||
|
#9
CASE, OIL SEAL (SHOWA)
51411-KZ3-701
|
$33.55 | ||
|
Unavailable |
|||
|
#10
RING, BACK-UP
51412-KZ3-003
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, GUIDE
51414-KZ3-701
Superseded by 51414-MFR-671
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, SLIDER
51415-KZ3-701
Superseded by 51415-MCH-003
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, STOPPER
51419-KZ3-003
|
$3.92 | ||
|
Unavailable |
|||
|
#14
PIPE, R. SLIDE (SHOWA)
51420-KZ3-701
|
$285.01 | ||
|
Unavailable |
|||
|
#15
CYLINDER (SHOWA)
51431-KZ3-701
|
$158.58 | ||
|
Unavailable |
|||
|
#16
RING, PISTON (SHOWA)
51435-KZ3-701
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CENTER (SHOWA)
51441-KZ3-701
|
$168.39 | ||
|
Unavailable |
|||
|
#18
RING, OIL SEAL STOPPER
51447-KZ3-003
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT ASSY., FR. FORK (NOT AVAILABLE)
51450-KZ3-003
|
$80.82 | ||
|
Unavailable |
|||
|
#20
NUT, LOCK (10MM) (NOT AVAILABLE)
51451-KZ3-003
|
$11.03 | ||
|
Unavailable |
|||
|
#21
VALVE, AIR (SHOWA)
51456-469-013
|
$40.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, FR. FORK
51461-KZ3-003
|
$6.15 | ||
|
Unavailable |
|||
|
#23
SLIDER
51475-KZ3-013
|
$13.37 | ||
|
Unavailable |
|||
|
#24
RING, STOPPER (NOT AVAILABLE)
51476-KZ3-003
|
$3.12 | ||
|
Unavailable |
|||
|
#25
ROD, PISTON (SHOWA)
51480-KZ3-701
|
$59.35 | ||
|
Unavailable |
|||
|
#26
SEAL SET, FR. FORK
51490-KZ3-810
|
$26.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
FORK ASSY., L. FR. (SHOWA)
51500-KZ3-771
|
$1,357.14 | ||
|
Unavailable |
|||
|
#28
CASE, L. SLIDE (SHOWA)
51520-KZ3-701
|
$363.31 | ||
|
Unavailable |
|||
|
#29
PROTECTOR, L. FR. FORK
51610-ML3-910
|
$67.61 | ||
|
Available to order. Add to View Price |
|||
|
#30
PROTR, R. FR. FORK
51620-KZ3-000
Superseded by 51620-KZ3-010
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER, AXLE
51634-KZ3-003
Superseded by 51634-MV1-003
|
$25.74 | ||
|
Unavailable |
|||
|
#31
HOLDER, AXLE
51634-MV1-003
|
$25.74 | ||
|
Unavailable |
|||
|
#32
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, DISK (6X13)
90106-KZ3-000
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6MM)
90113-KZ3-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPECIAL
90544-KZ3-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
DUST SEAL
91254-KZ3-003
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (15.5X1.5)
91256-GC5-003
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
O-RING (5.8X1.9)
91301-469-003
Superseded by 91305-323-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
O-RING (5.8X1.9)
91305-323-000
|
$3.51 | ||
|
Unavailable |
|||
|
#40
O-RING (54.5X2.4) (NOK)
91355-KZ3-003
Superseded by 91360-SM4-003
|
$4.55 | ||
|
Unavailable |
|||
|
#40
O-RING (54.5X2.4) (NOK)
91360-SM4-003
|
$4.55 | ||
|
Unavailable |
|||
|
#41
O-RING (44.7X2.4)
91356-KZ3-003
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
