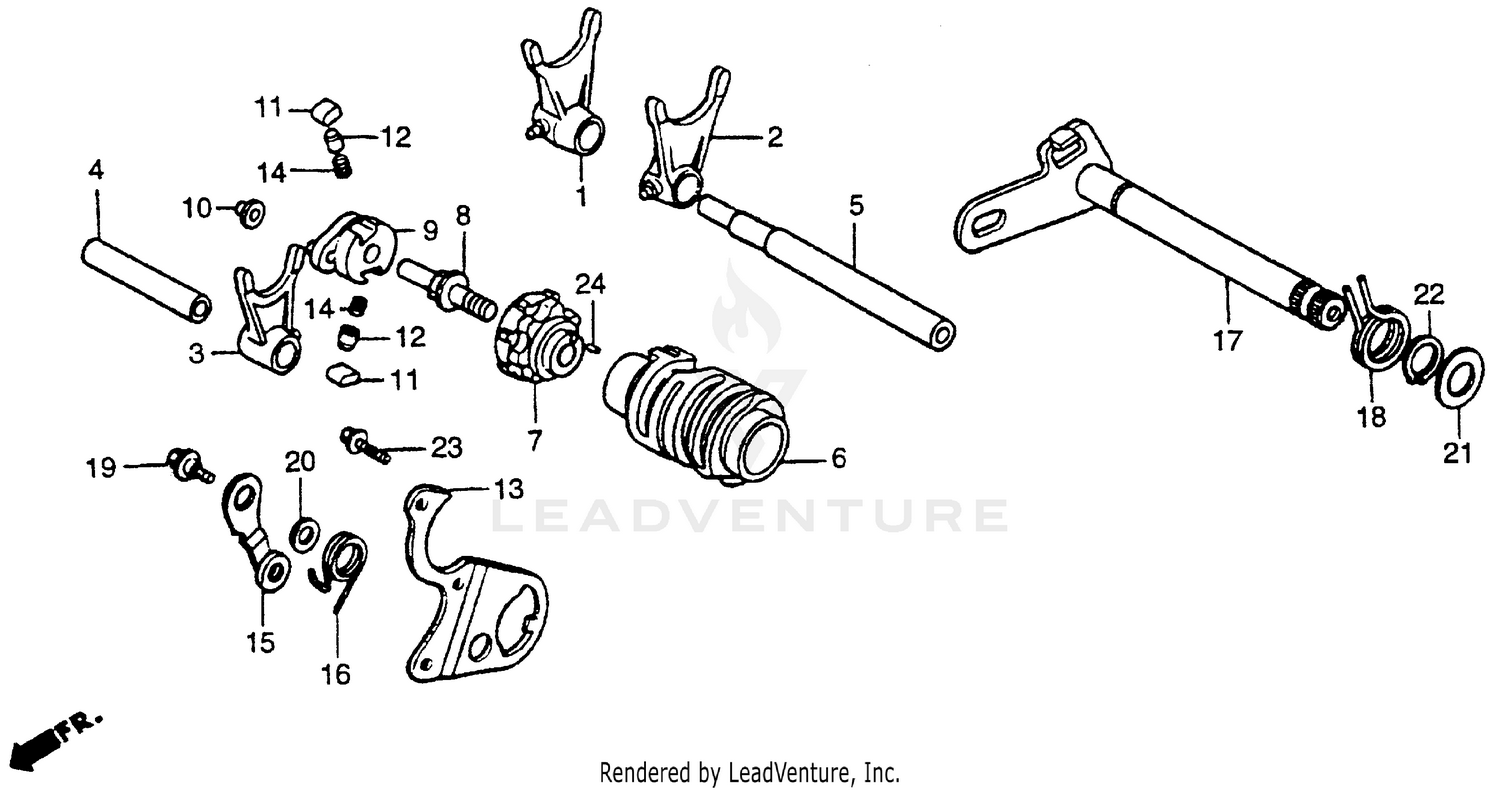

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-KA4-770
Superseded by 24211-MEN-730
|
$83.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-KA4-770
Superseded by 24221-MEN-730
|
$83.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-MEN-730
|
$83.65 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-KA4-770
Superseded by 24231-MEN-730
|
$83.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-KA4-771
Superseded by 24231-MEN-730
|
$83.65 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-MEN-730
|
$83.65 | ||
|
Unavailable |
|||
|
#4
SHAFT, SHIFT FORK
24265-KA4-740
|
$21.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, SHIFT FORK (C)
24266-KA4-770
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-KSK-730
|
$82.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-ML3-000
Superseded by 24311-KSK-730
|
$82.17 | ||
|
Unavailable |
|||
|
#7
CENTER, SHIFT DRUM
24312-KA3-741
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SHIFTER
24315-KA3-710
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFTER, DRUM
24320-GC4-730
|
$49.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-KA3-740
Superseded by 24322-HA0-000
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-HA0-000
|
$6.89 | ||
|
Unavailable |
|||
|
#11
PAWL, RATCHET
24324-KA3-740
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-000
Superseded by 24326-360-010
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-010
|
$6.51 | ||
|
Unavailable |
|||
|
#13
PLATE, GUIDE
24328-KA4-770
Superseded by 24328-KA5-690
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, DRUM
24430-KA3-740
|
$26.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SHIFT DRUM STOPPER
24435-KA4-770
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPINDLE, GEARSHIFT (NOT AVAILABLE)
24610-ML3-000
|
$70.16 | ||
|
Unavailable |
|||
|
#18
SPRING, GEARSHIFT RETURN
24651-KA4-740
|
$5.01 | ||
|
Unavailable |
|||
|
#19
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-000
Superseded by 90023-041-010
|
$2.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-010
|
$2.56 | ||
|
Unavailable |
|||
|
#20
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER B, THRUST (14MM)
90428-958-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
