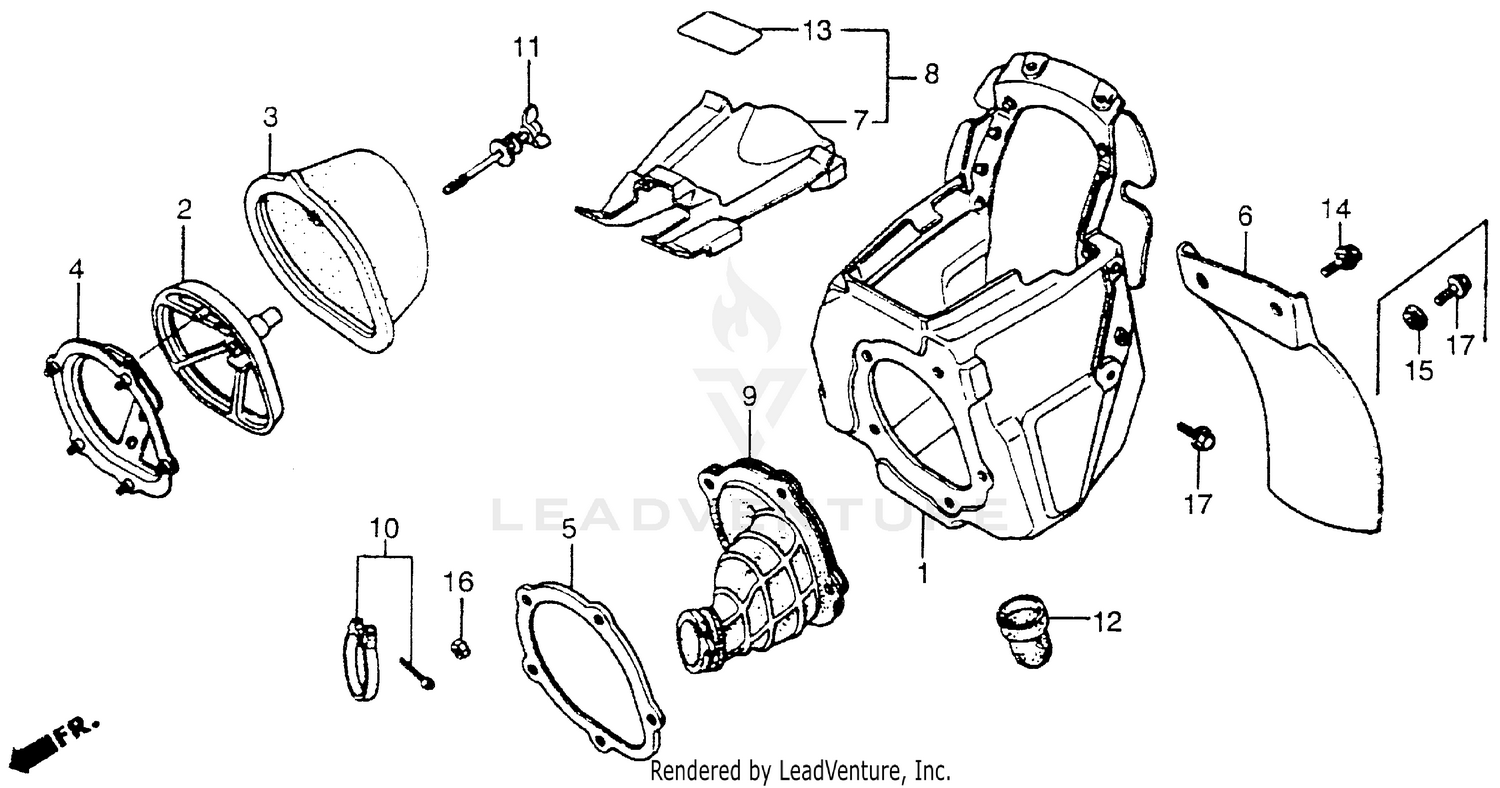

Air Cleaner 86-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, AIR CLEANER
17210-KS6-000
|
$118.67 | ||
|
Unavailable |
|||
|
#2
BASE, ELEMENT
17212-KS6-000
Superseded by 17212-KS6-010
|
$19.24 | ||
|
Unavailable |
|||
|
#2
BASE, ELEMENT
17212-KS6-010
|
$19.24 | ||
|
Unavailable |
|||
|
#3
ELEMENT, AIR CLEANER
17213-KS7-000
|
$29.42 | ||
|
Unavailable |
|||
|
#4
STAY, AIR CLEANER ELEMENT
17215-KS6-000
|
$60.01 | ||
|
Unavailable |
|||
|
#5
PLATE, FR. AIR CLEANER HOUSING
17217-KS6-000
|
$18.03 | ||
|
Unavailable |
|||
|
#6
SPLASH GUARD A, AIR CLEANER HOUSING (NOT AVAILABLE)
17218-KA3-730
|
$45.61 | ||
|
Unavailable |
|||
|
#8
COVER SUB-ASSY., AIR CLEANER (NOT AVAILABLE)
17224-KS6-670
|
$18.26 | ||
|
Unavailable |
|||
|
#9
TUBE, AIR CLEANER CONNECTING
17253-KS7-300
|
$35.04 | ||
|
Unavailable |
|||
|
#10
BAND, AIR CLEANER CONNECTING TUBE (70)
17256-MK4-000
Superseded by 95018-70250
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, AIR CLEANER CONNECTING TUBE (70)
17257-KA3-830
Superseded by 95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#10
BAND, AIR CLEANER CONNECTING TUBE (70)
90652-GHB-780
Superseded by 95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#10
BAND, AIR CLEANER CONNECTING TUBE (70)
95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#11
BOLT, ELEMENT SETTING
17291-KS6-000
Superseded by 17291-MAC-740
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, ELEMENT SETTING
17291-KS6-700
Superseded by 17291-MAC-740
|
$13.71 | ||
|
Unavailable |
|||
|
#11
BOLT, ELEMENT SETTING
17291-MAC-740
|
$13.71 | ||
|
Unavailable |
|||
|
#12
TUBE, DRAIN (NOT AVAILABLE)
17358-KA3-830
|
$5.04 | ||
|
Unavailable |
|||
|
#13
LABEL, AIR CLEANER COVER CAUTION (NOT AVAILABLE)
87517-KA4-770
|
$2.75 | ||
|
Unavailable |
|||
|
#15
WASHER, RR. COVER
90506-425-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (5MM)
94002-05000-0S
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Unavailable |
|||
