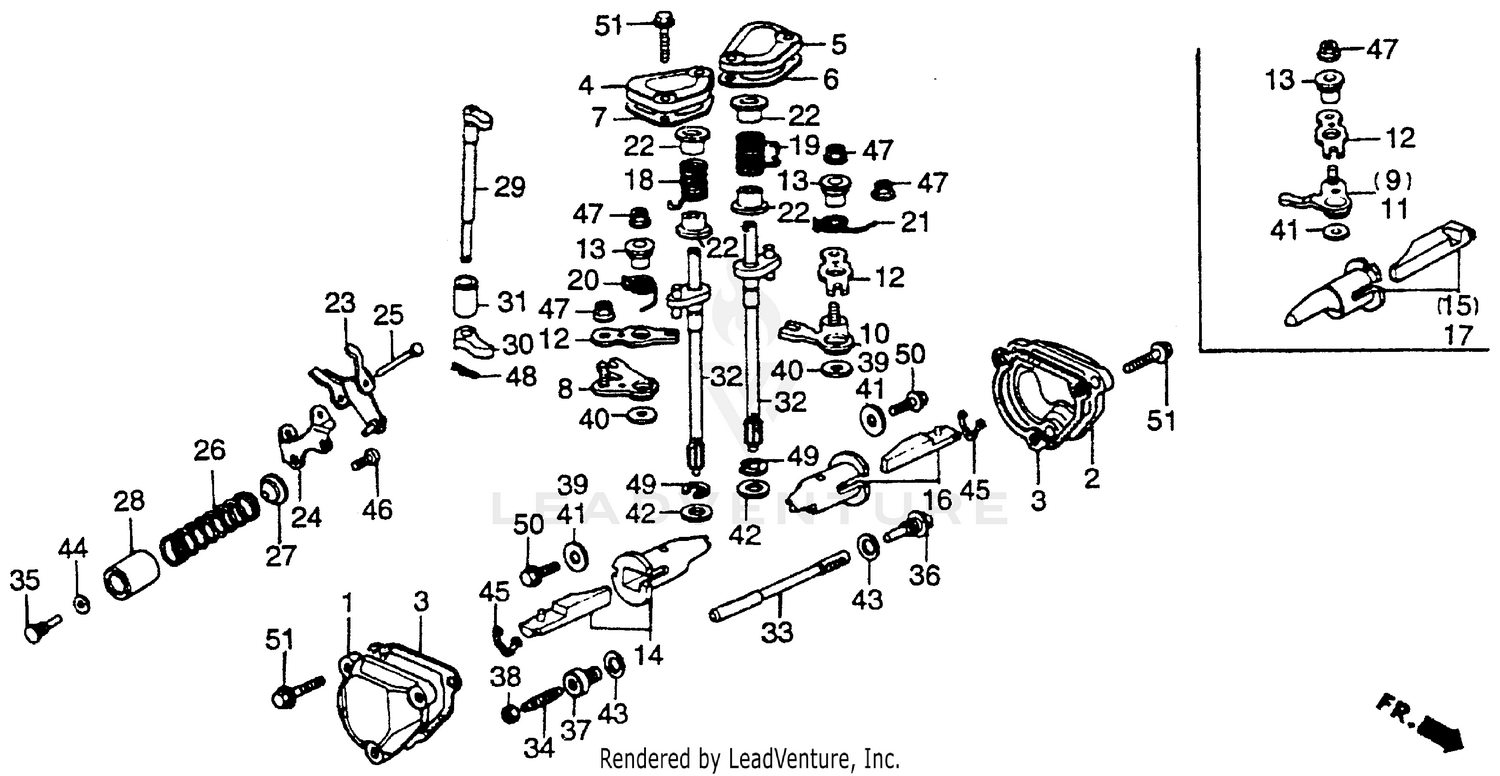

Exhaust Valve 86-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CYLINDER SIDE
12106-KS7-000
|
$26.65 | ||
|
Unavailable |
|||
|
#2
COVER, L. CYLINDER SIDE
12107-KS7-000
|
$28.94 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER SIDE COVER
12108-KS7-000
Superseded by 12108-KS7-880
|
$4.18 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER SIDE COVER
12108-KS7-880
|
$4.18 | ||
|
Unavailable |
|||
|
#4
COVER, R. CYLINDER (UPPER)
12111-KS7-000
|
$14.80 | ||
|
Unavailable |
|||
|
#5
COVER, L. CYLINDER (UPPER)
12112-KS7-000
|
$14.80 | ||
|
Unavailable |
|||
|
#6
GASKET, L. CYLINDER COVER
12113-KS7-P00
|
$3.93 | ||
|
Unavailable |
|||
|
#6
GASKET, L. CYLINDER COVER
12113-KS7-000
Superseded by 12113-KS7-P00
|
$3.93 | ||
|
Unavailable |
|||
|
#6
GASKET, L. CYLINDER COVER
12113-KS7-880
Superseded by 12113-KS7-P00
|
$3.93 | ||
|
Unavailable |
|||
|
#7
GASKET, R. CYLINDER COVER (UPPER)
12114-KS7-P00
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, R. CYLINDER COVER (UPPER)
12114-KS7-000
Superseded by 12114-KS7-P00
|
$3.92 | ||
|
Unavailable |
|||
|
#7
GASKET, R. CYLINDER COVER (UPPER)
12114-KS7-880
Superseded by 12114-KS7-P00
|
$3.92 | ||
|
Unavailable |
|||
|
#8
LEVER, R. EX. VALVE
14430-KS7-000
|
$21.34 | ||
|
Unavailable |
|||
|
#10
LEVER, L. EX. VALVE
14440-KS7-000
|
$17.32 | ||
|
Unavailable |
|||
|
#12
LEVER, ADJUSTER
14451-KS7-000
|
$15.28 | ||
|
Unavailable |
|||
|
#13
COLLAR
14461-KS7-000
|
$7.12 | ||
|
Unavailable |
|||
|
#14
VALVE ASSY., R. EX. (NOT AVAILABLE)
14600-KS7-000
|
$113.63 | ||
|
Unavailable |
|||
|
#16
VALVE ASSY., L. EX. (NOT AVAILABLE)
14700-KS7-000
|
$77.56 | ||
|
Unavailable |
|||
|
#18
SPRING, VALVE (OUTER) (NOT AVAILABLE)
14751-KS7-000
Superseded by 14751-KS7-010
|
$2.52 | ||
|
Unavailable |
|||
|
#19
SPRING, L. EX. VALVE (NOT AVAILABLE)
14752-KS7-000
Superseded by 14752-KS7-010
|
$2.61 | ||
|
Unavailable |
|||
|
#20
SPRING, R. VALVE PRESSURE (NOT AVAILABLE)
14761-KS7-000
|
$1.53 | ||
|
Unavailable |
|||
|
#21
SPRING, L. VALVE PRESSURE (NOT AVAILABLE)
14762-KS7-000
|
$1.48 | ||
|
Unavailable |
|||
|
#22
COLLAR, VALVE SPRING
14771-KS7-000
Superseded by 14771-KS7-020
|
$6.62 | ||
|
Unavailable |
|||
|
#23
ARM, ROCKER (NOT AVAILABLE)
19310-KA4-770
|
$8.51 | ||
|
Unavailable |
|||
|
#24
HOLDER, ROCKER ARM
19321-KA3-740
|
$8.25 | ||
|
Unavailable |
|||
|
#25
PIN, ROCKER ARM
19322-KA3-740
|
$3.74 | ||
|
Unavailable |
|||
|
#26
SPRING A, VALVE
19331-KS7-000
|
$2.75 | ||
|
Unavailable |
|||
|
#27
RETAINER, SPRING A (NOT AVAILABLE)
19343-KA3-740
|
$2.54 | ||
|
Unavailable |
|||
|
#28
GUIDE, SPRING (OUTER) (NOT AVAILABLE)
19345-KA3-760
|
$2.68 | ||
|
Unavailable |
|||
|
#29
SPINDLE, CAM (NOT AVAILABLE)
19351-KS7-000
|
$17.12 | ||
|
Unavailable |
|||
|
#30
CAM, FOLLOWER (NOT AVAILABLE)
19352-KA3-741
|
$8.85 | ||
|
Unavailable |
|||
|
#31
BUSH, CAM SPINDLE (NOT AVAILABLE)
19355-KA4-770
|
$5.11 | ||
|
Unavailable |
|||
|
#32
SHAFT, PINION (NOT AVAILABLE)
19360-KS7-000
|
$43.79 | ||
|
Unavailable |
|||
|
#33
RACK (NOT AVAILABLE)
19361-KS7-000
|
$17.46 | ||
|
Unavailable |
|||
|
#34
SCREW, BUTTERFLY STOPPER
90011-KS6-000
|
$4.05 | ||
|
Unavailable |
|||
|
#35
BOLT, SPECIAL (6X23)
90012-KA3-740
|
$5.04 | ||
|
Unavailable |
|||
|
#36
BOLT, SEALING (8MM)
90021-KS7-000
|
$4.20 | ||
|
Unavailable |
|||
|
#37
BOLT, SPECIAL (8X6.5) (NOT AVAILABLE)
90022-KS6-000
Superseded by 90022-GC4-730
|
$4.09 | ||
|
Unavailable |
|||
|
#38
NUT, LOCK (5MM)
90201-KA3-740
|
$2.94 | ||
|
Unavailable |
|||
|
#39
WASHER (6.5X16)
90408-KS7-000
|
$2.38 | ||
|
Unavailable |
|||
|
#40
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER (7.6X16)
90503-KS7-000
|
$2.45 | ||
|
Unavailable |
|||
|
#43
WASHER (8X13X0.5)
90541-KA3-740
|
$1.99 | ||
|
Unavailable |
|||
|
#44
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
CIRCLIP, SPECIAL (10MM)
90601-KS7-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN, LOCK (5MM)
94251-05000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#49
E-RING (6MM)
94540-06018
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
|
#51
BOLT, FLANGE (6X20)
96000-06020-07
Superseded by 96001-06020-07
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE (6X20)
96001-06020-07
|
$1.55 | ||
|
Unavailable |
|||
