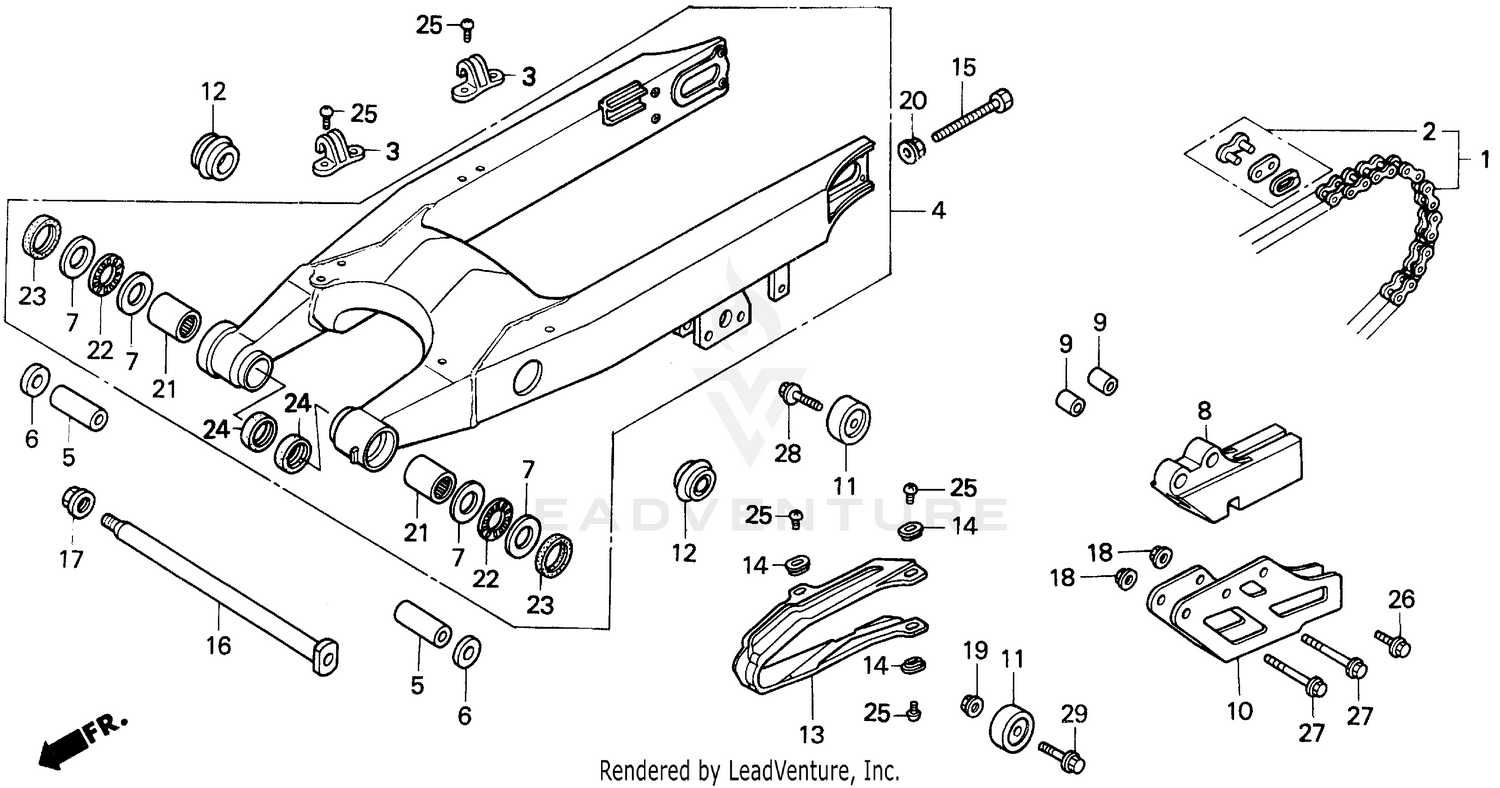

Swingarm 94 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE
405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-731
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-732
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-733
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (TAKASAGO)
40531-KA4-731
|
$7.05 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (DAIDO)
40531-KA4-732
|
$6.89 | ||
|
Unavailable |
|||
|
#3
GUIDE, RR. BRAKE HOSE
43468-KS6-700
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWINGARM ASSY. (WOL)
52100-KZ3-710
|
$702.22 | ||
|
Unavailable |
|||
|
#5
COLLAR, SWINGARM
52141-KZ3-860
|
$17.93 | ||
|
Unavailable |
|||
|
#6
COLLAR, SWINGARM SIDE
52142-KZ3-860
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SWINGARM SIDE
52143-KZ3-860
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CHAIN
52146-ML3-911
|
$35.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, CHAIN GUIDE
52148-ML3-910
|
$4.51 | ||
|
Unavailable |
|||
|
#10
PLATE, CHAIN GUIDE
52156-ML3-910
|
$71.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER, CHAIN TENSIONER
52158-KA3-831
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RR. SWINGARM PIPE
52161-KS7-831
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER, CHAIN
52170-KZ4-891
|
$61.32 | ||
|
Unavailable |
|||
|
#14
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X49)
90106-KS6-700
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SWINGARM
90117-KZ3-861
|
$41.92 | ||
|
Unavailable |
|||
|
#17
NUT, RR. SWINGARM PIVOT
90301-KS7-830
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE
91071-MJ0-004
|
$44.65 | ||
|
Unavailable |
|||
|
#22
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (30X37X4)
91253-KZ3-861
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (22X29X4)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
96400-06012-00
Superseded by 96300-06012-00
|
$1.07 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X50)
96400-06050-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X35)
96400-08035-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X55)
96400-08055-00
|
$3.78 | ||
|
Unavailable |
|||
