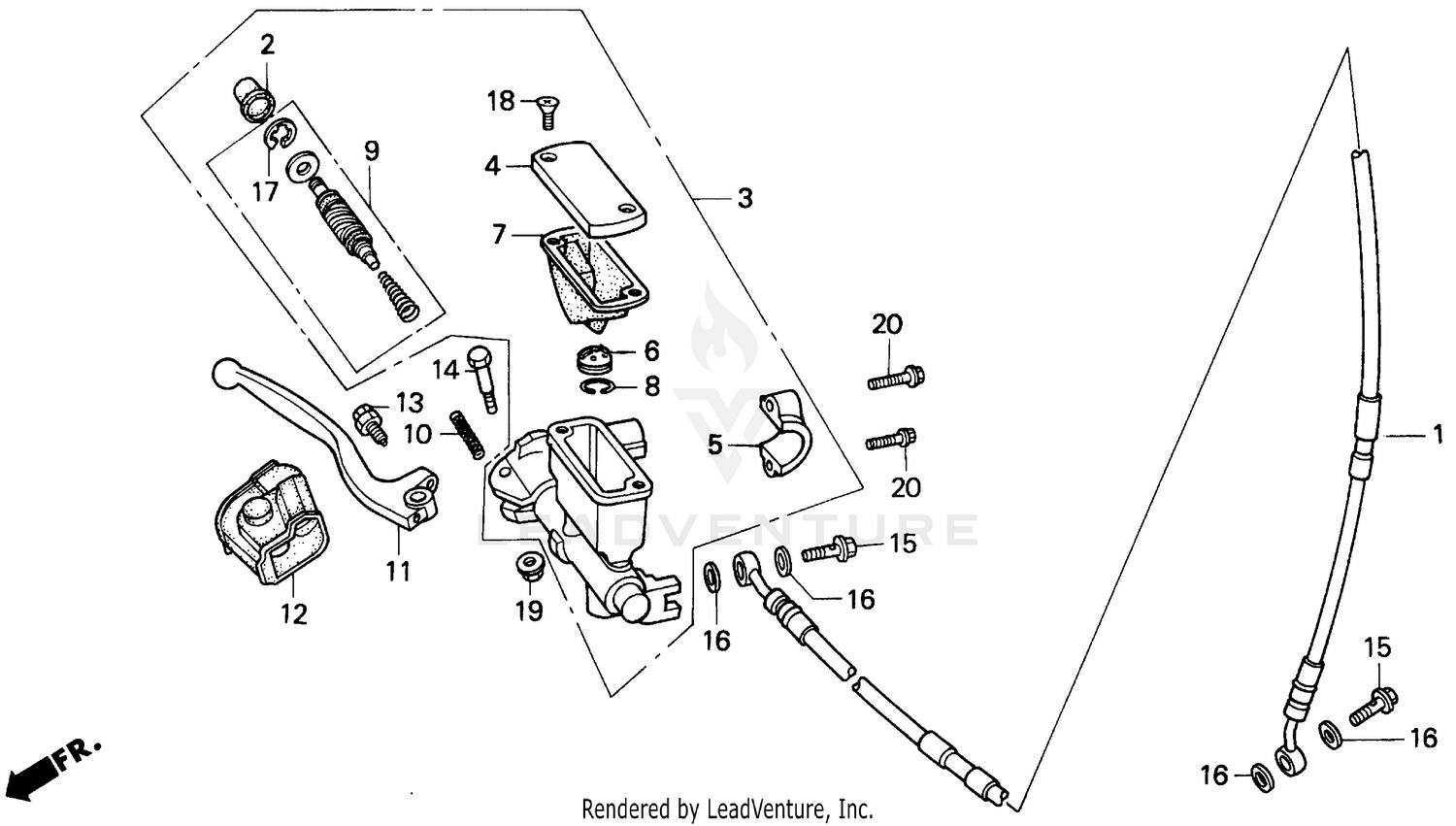

Fr. Brake Master Cyl. 92-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, FR. BRAKE
45125-ML3-791
|
$129.69 | ||
|
Unavailable |
|||
|
#2
BOOT
45504-KN5-006
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-ML3-790
Superseded by 45510-ML3-791
|
$171.29 | ||
|
Unavailable |
|||
|
#3
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-ML3-791
|
$171.29 | ||
|
Unavailable |
|||
|
#4
CAP, MASTER CYLINDER
45513-KA3-732
Superseded by 45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#4
CAP, MASTER CYLINDER
45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#5
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEPARATOR
45518-KA3-731
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM
45520-KA3-731
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, MASTER CYLINDER
45530-KN5-305
|
$65.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, BRAKE LEVER
53174-KN5-006
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, R. HANDLE
53175-ML3-790
|
$21.98 | ||
|
Unavailable |
|||
|
#12
COVER, R. HANDLE LEVER
53176-ML3-791
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT SET, ADJUSTER (NISSIN)
90111-ML3-791
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HANDLEBAR PIVOT
90114-166-006
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
