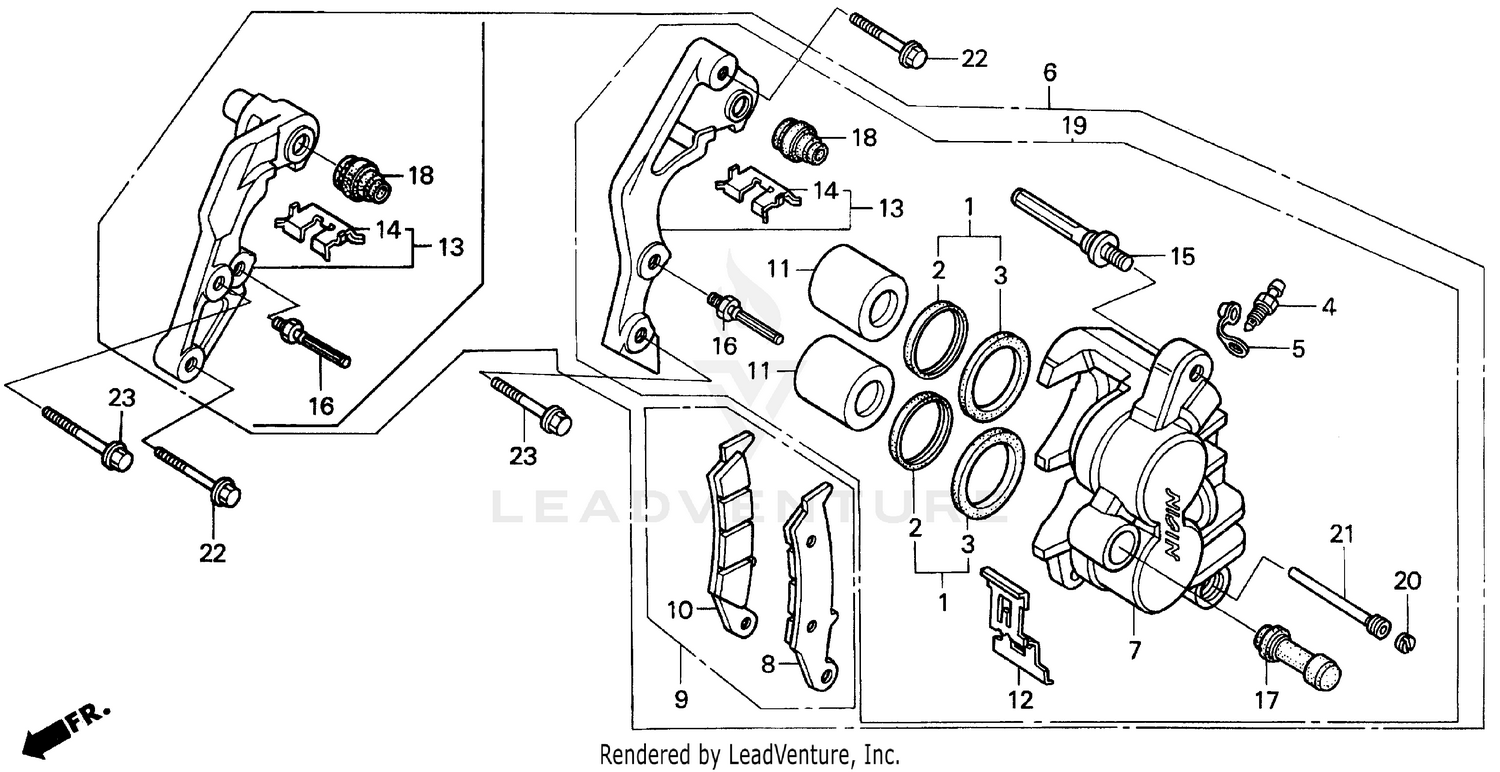

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER ASSY., L. FR.
45100-MAC-671
|
$370.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAD SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK)
45105-KZ1-405
|
$45.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON
45107-KS6-702
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, PAD
45108-MY1-006
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, L. FR.
45110-ML3-791
|
$115.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
RETAINER
45112-KS6-701
|
$7.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT A, BOLT
45131-HA5-672
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, PIN
45131-KAE-006
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, PIN
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, HANGER
45215-HA5-672
|
$12.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X44)
90154-KZ3-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X44)
90154-KZ3-730
Superseded by 90154-KZ3-000
|
$6.20 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (8X50)
90155-KZ3-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X50)
90155-KZ3-730
Superseded by 90155-KZ3-000
|
$8.11 | ||
|
Unavailable |
|||
