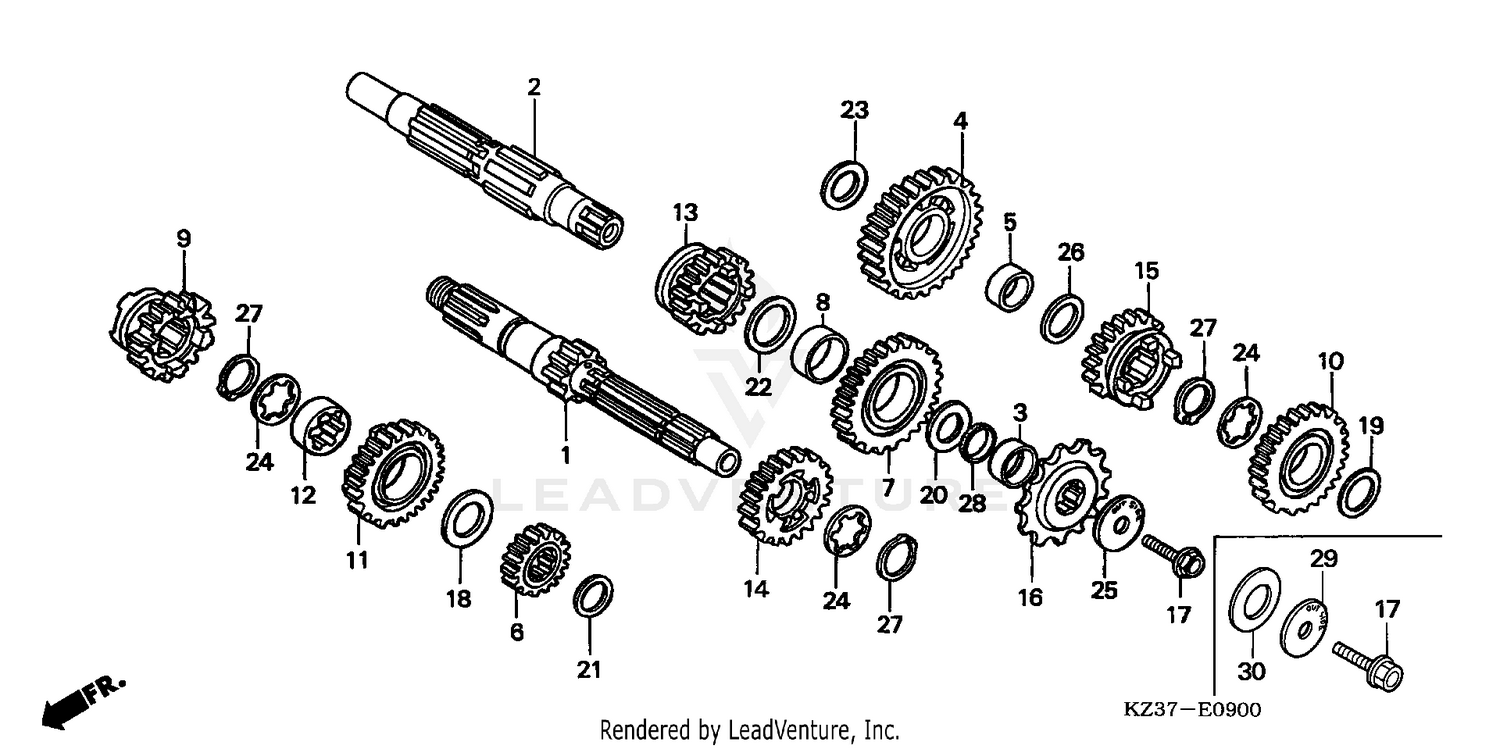

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (15T)
23210-KZ3-L20
|
$142.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-KZ3-L20
|
$121.34 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-MEN-730
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW (27T)
23411-KZ3-L30
|
$75.45 | ||
|
Unavailable |
|||
|
#5
COLLAR, COUNTERSHAFT LOW GEAR
23412-KA4-740
|
$14.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (17T)
23421-MEB-770
|
$43.25 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (25T)
23431-KZ3-L30
|
$83.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, COUNTERSHAFT SECOND GEAR
23432-ML3-870
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD (19T)
23441-KZ3-L30
|
$59.02 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (23T)
23451-KS7-830
|
$157.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT FOURTH (21T)
23461-KZ3-L20
|
$109.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, MAINSHAFT FOURTH GEAR
23462-KZ3-L20
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTERSHAFT FOURTH (21T)
23471-KZ3-L20
|
$84.07 | ||
|
Unavailable |
|||
|
#14
GEAR, MAINSHAFT FIFTH (23T)
23481-KZ3-L20
|
$76.52 | ||
|
Unavailable |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (20T)
23491-KZ3-L20
|
$83.88 | ||
|
Unavailable |
|||
|
#16
SPROCKET, DRIVE (13T)
23802-MEN-730
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, THRUST (25MM)
90421-961-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (25.2X30)
90444-430-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (24.1X36X1.5)
90445-ML3-871
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (17.2MM)
90446-KA4-740
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (27.2X35)
90446-ML3-870
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (25X31X1.5)
90451-KY2-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (19MM)
90554-KA5-680
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
D-RING (23.75MM) (ARAI)
91201-ML3-873
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR, DRIVE SPROCKET
23802-KSC-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING (24MM)
90501-KSC-670
|
$5.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
