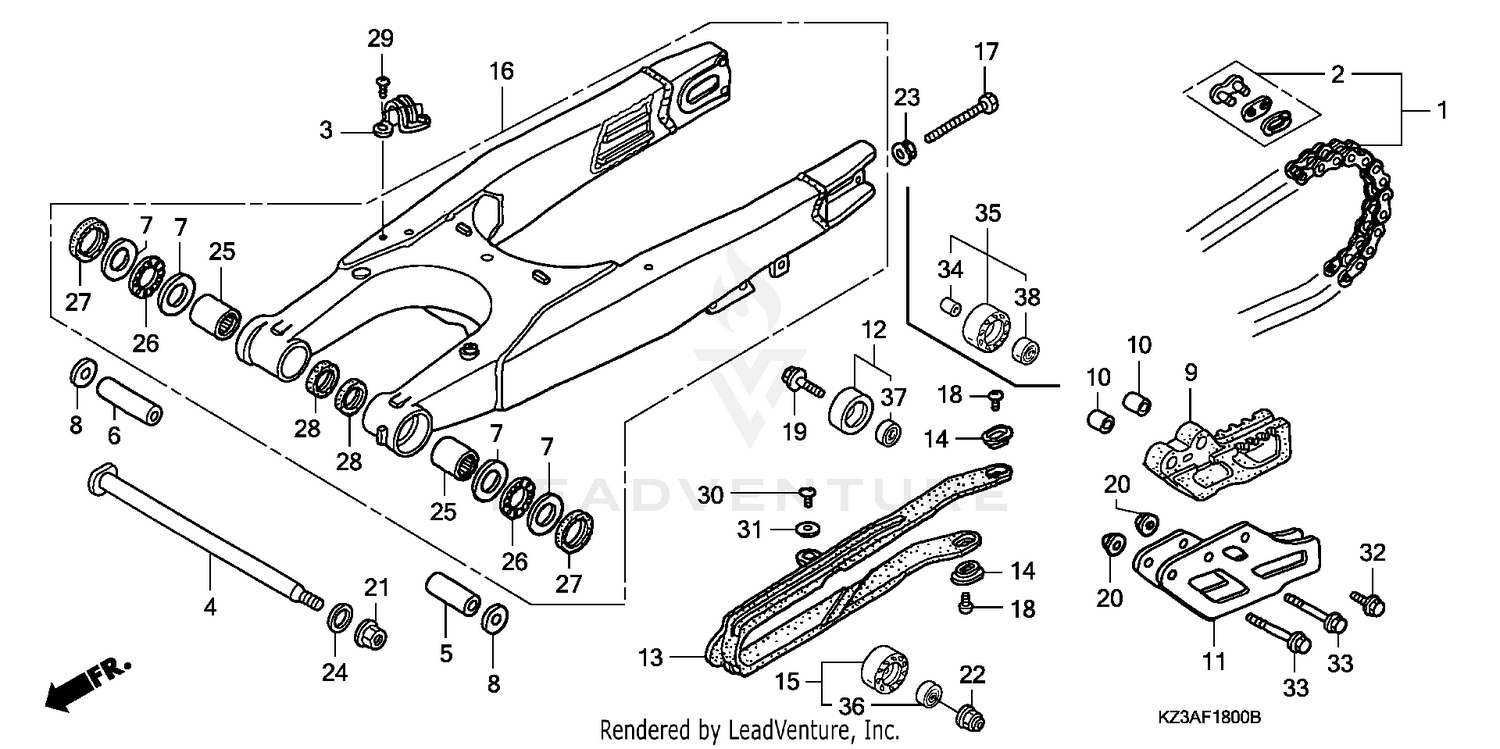

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L)
40530-KZ3-J31
Superseded by 40530-KRN-A31
|
$156.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO) (STANDARD LINK 114L)
40540-MEN-003
Superseded by 40540-KRN-A31
|
$248.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (DAIDO)
40531-KZ4-J31
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, RR. BRAKE HOSE
43468-KZ3-B00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, SWINGARM PIVOT
52101-KZ4-J40
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SWINGARM (49MM)
52141-KZ3-J40
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SWINGARM SIDE (54MM)
52142-KZ4-J40
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SWINGARM SIDE
52143-KZ3-860
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SWINGARM PIVOT SIDE
52143-KZ4-J40
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CHAIN
52146-KRN-711
|
$35.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, CHAIN GUIDE
52148-MEN-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CHAIN GUIDE
52147-KRN-710
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER, CHAIN
52170-KRN-710
|
$68.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ROLLER, CHAIN (LOWER) (34MM)
52176-KRN-710
|
$45.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWINGARM SUB-ASSY., RR.
52200-KRN-710
|
$765.37 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (8X47.5)
90105-MEN-000
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (5X8)
90115-KV3-700
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X32)
90124-MEB-770
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, U HEX. (14MM)
90305-KZ3-B01
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Unavailable |
|||
|
#23
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER (26X14X2.8)
90501-GAH-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (26X14X2.8)
90501-GBL-730
Superseded by 90501-GAH-000
|
$8.33 | ||
|
Unavailable |
|||
|
#25
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (30X37X4)
91253-KZ3-861
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW, PAN (5X8)
93500-05008-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR, CHAIN TENSIONER
52160-MEN-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#35
ROLLER, CHAIN (32)
52175-KSK-000
|
$41.13 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (608UU)
91011-GCT-003
|
$22.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (608UU)
91011-GCT-003
|
$22.85 | ||
|
Unavailable |
|||
