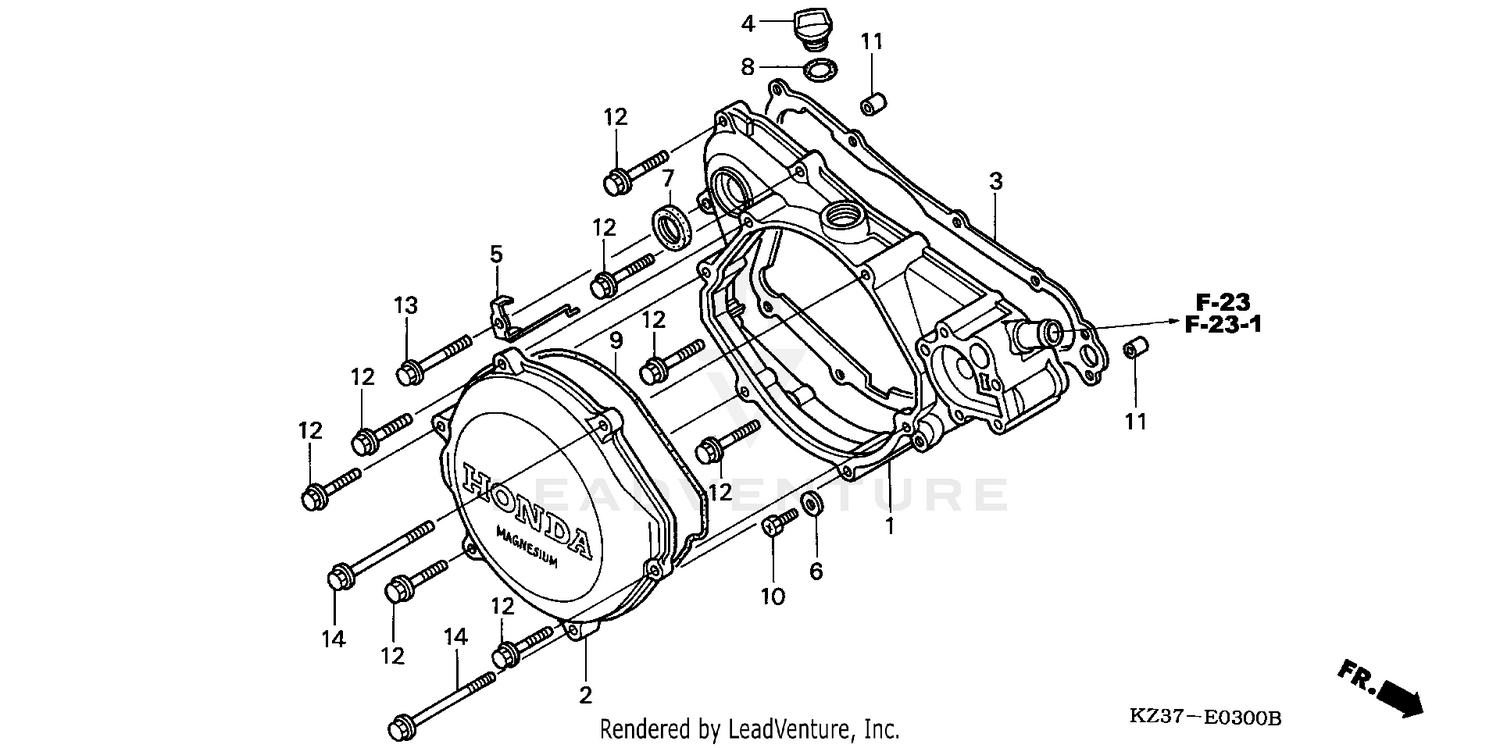

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11341-KZ3-L20
|
$191.70 | ||
|
Unavailable |
|||
|
#2
COVER, CLUTCH
11342-KZ3-L20
|
$125.48 | ||
|
Unavailable |
|||
|
#3
GASKET, R. COVER
11395-KSK-730
|
$22.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP, AIR VENT TUBE
16240-KZ3-L20
|
$5.45 | ||
|
Unavailable |
|||
|
#6
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
OIL SEAL (20X28X5)
91204-KF0-003
|
$8.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING, SPECIAL
91311-KZ3-L21
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RECESSED (6X10)
92301-06010-0A
|
$0.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X75)
96001-06075-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
