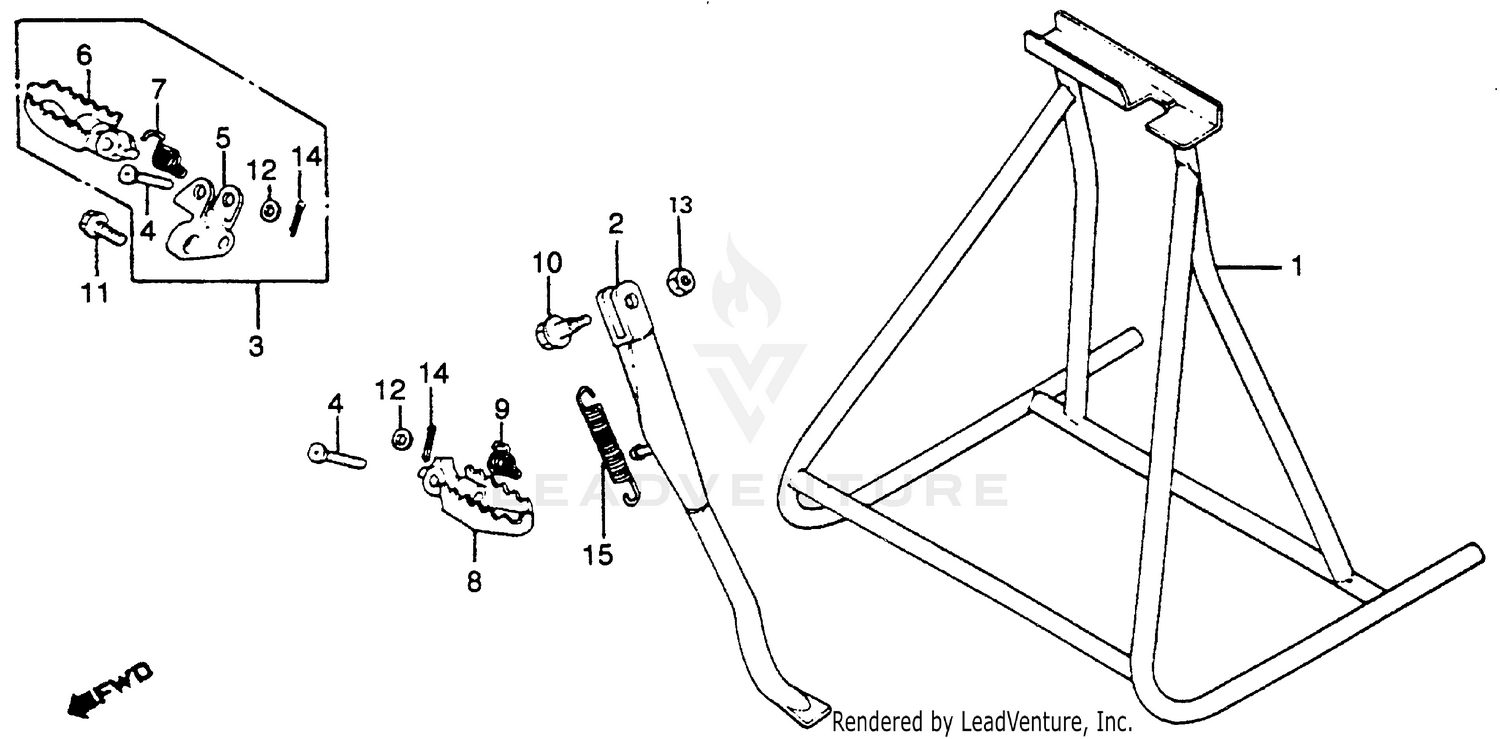

Stand + Step 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN (NOT AVAILABLE)
50500-444-810
|
$140.57 | ||
|
Unavailable |
|||
|
#2
BAR, SIDE STAND (NOT AVAILABLE)
50530-444-000
|
$78.37 | ||
|
Unavailable |
|||
|
#3
STEP ASSY., R. *NH1* (BLACK)
50601-444-000ZA
|
$107.90 | ||
|
Unavailable |
|||
|
#4
PIN, STEP JOINT (NOT AVAILABLE)
50603-444-000
|
$4.29 | ||
|
Unavailable |
|||
|
#5
BRACKET, R. STEP BAR
50613-444-000
|
$50.43 | ||
|
Unavailable |
|||
|
#6
ARM, R. STEP
50616-430-000
|
$42.86 | ||
|
Unavailable |
|||
|
#7
SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)
50617-283-000
|
$10.19 | ||
|
Unavailable |
|||
|
#8
ARM, L. STEP (NOT AVAILABLE)
50642-444-000
|
$43.45 | ||
|
Unavailable |
|||
|
#9
SPRING, L. STEP RETURN
50644-MM9-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, L. STEP RETURN
50644-329-000
Superseded by 50644-MM9-000
|
$5.67 | ||
|
Unavailable |
|||
|
#10
SCREW, SIDE STAND PIVOT
90108-283-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (12X20) (NOT AVAILABLE)
90120-444-000
|
$4.11 | ||
|
Unavailable |
|||
|
#12
WASHER (10.2MM)
90401-430-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (10MM)
94002-10080-0S
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#15
SPRING G, MAIN STAND
95014-71702
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
