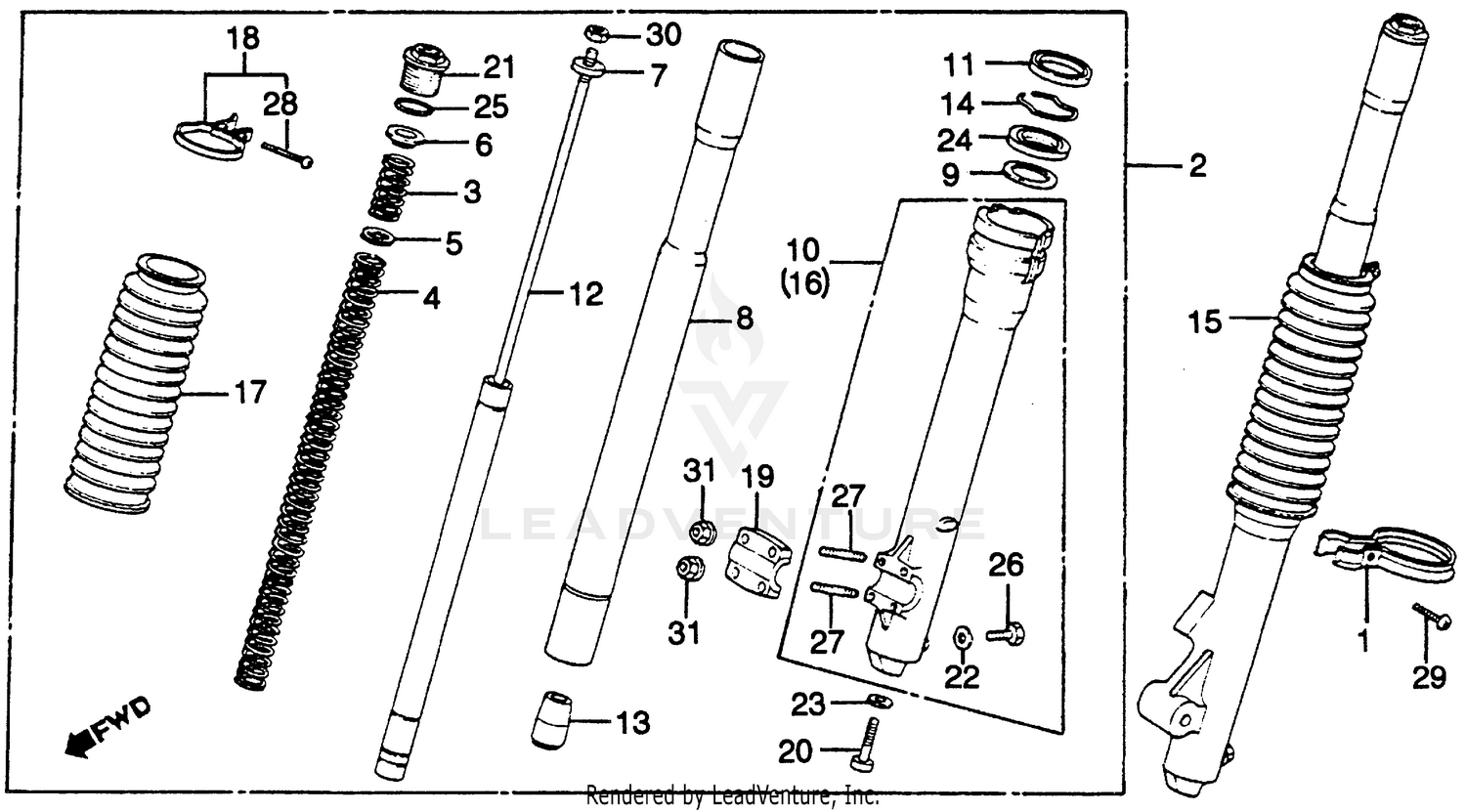

Front Fork 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, FR. BRAKE CABLE (NOT AVAILABLE)
45461-430-701
|
$19.59 | ||
|
Unavailable |
|||
|
#2
FORK ASSY., R. FR.
51400-444-003
|
$846.17 | ||
|
Unavailable |
|||
|
#3
SPRING A, FR. FORK (NOT AVAILABLE)
51401-444-000
|
$16.57 | ||
|
Unavailable |
|||
|
#4
SPRING B, FR. FORK (NOT AVAILABLE)
51402-444-000
|
$54.37 | ||
|
Unavailable |
|||
|
#5
PLATE, SPRING JOINT
51403-430-000
|
$3.61 | ||
|
Unavailable |
|||
|
#6
SEAT, SPRING (UPPER) (NOT AVAILABLE)
51406-430-700
|
$4.42 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING (LOWER) (NOT AVAILABLE)
51407-430-000
|
$4.91 | ||
|
Unavailable |
|||
|
#8
PIPE, FR. FORK
51410-444-003
|
$323.06 | ||
|
Unavailable |
|||
|
#9
RING, BACK-UP (NOT AVAILABLE)
51412-444-003
|
$5.29 | ||
|
Unavailable |
|||
|
#10
CASE, R. (LOWER) (NOT AVAILABLE)
51421-430-700
|
$280.85 | ||
|
Unavailable |
|||
|
#11
DUST SEAL, FR. FORK (NOT AVAILABLE)
51425-430-000
|
$14.66 | ||
|
Unavailable |
|||
|
#12
DAMPER (NOT AVAILABLE)
51430-444-003
|
$85.94 | ||
|
Unavailable |
|||
|
#13
PIECE, OIL LOCKING (NOT AVAILABLE)
51432-430-000
|
$16.61 | ||
|
Unavailable |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KL4-951
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51466-375-000
Superseded by 51447-KL4-951
|
$5.05 | ||
|
Unavailable |
|||
|
#15
FORK ASSY., L. FR.
51500-444-003
|
$846.17 | ||
|
Unavailable |
|||
|
#16
CASE, L. (LOWER) (NOT AVAILABLE)
51521-430-700
|
$280.85 | ||
|
Unavailable |
|||
|
#17
BOOT, FR. FORK
51611-430-000
|
$39.46 | ||
|
Unavailable |
|||
|
#18
BAND, FR. FORK BOOT
51612-430-010
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, AXLE (NOT AVAILABLE)
51634-434-003
Superseded by 51634-429-000
|
$21.87 | ||
|
Unavailable |
|||
|
#20
BOLT, SOCKET (8MM) (SHOWA)
90116-283-010
Superseded by 90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8MM) (SHOWA)
90116-383-721
|
$6.44 | ||
|
Unavailable |
|||
|
#21
BOLT, FR. FORK (NOT AVAILABLE)
90123-430-000
|
$30.91 | ||
|
Unavailable |
|||
|
#22
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
OIL SEAL (37X48X12.5) (NOT AVAILABLE)
91255-444-003
|
$12.58 | ||
|
Unavailable |
|||
|
#25
O-RING (29X2.4)
91344-PC9-004
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (29X2.4) (NOK)
91356-371-000
Superseded by 91344-PC9-004
|
$4.42 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#27
BOLT, STUD (6X25)
92700-06035-0E
Superseded by 92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (4X20)
93500-04020-0H
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (6X12)
93500-06012
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (6X12)
93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN (6X12)
93500-06012-00
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
