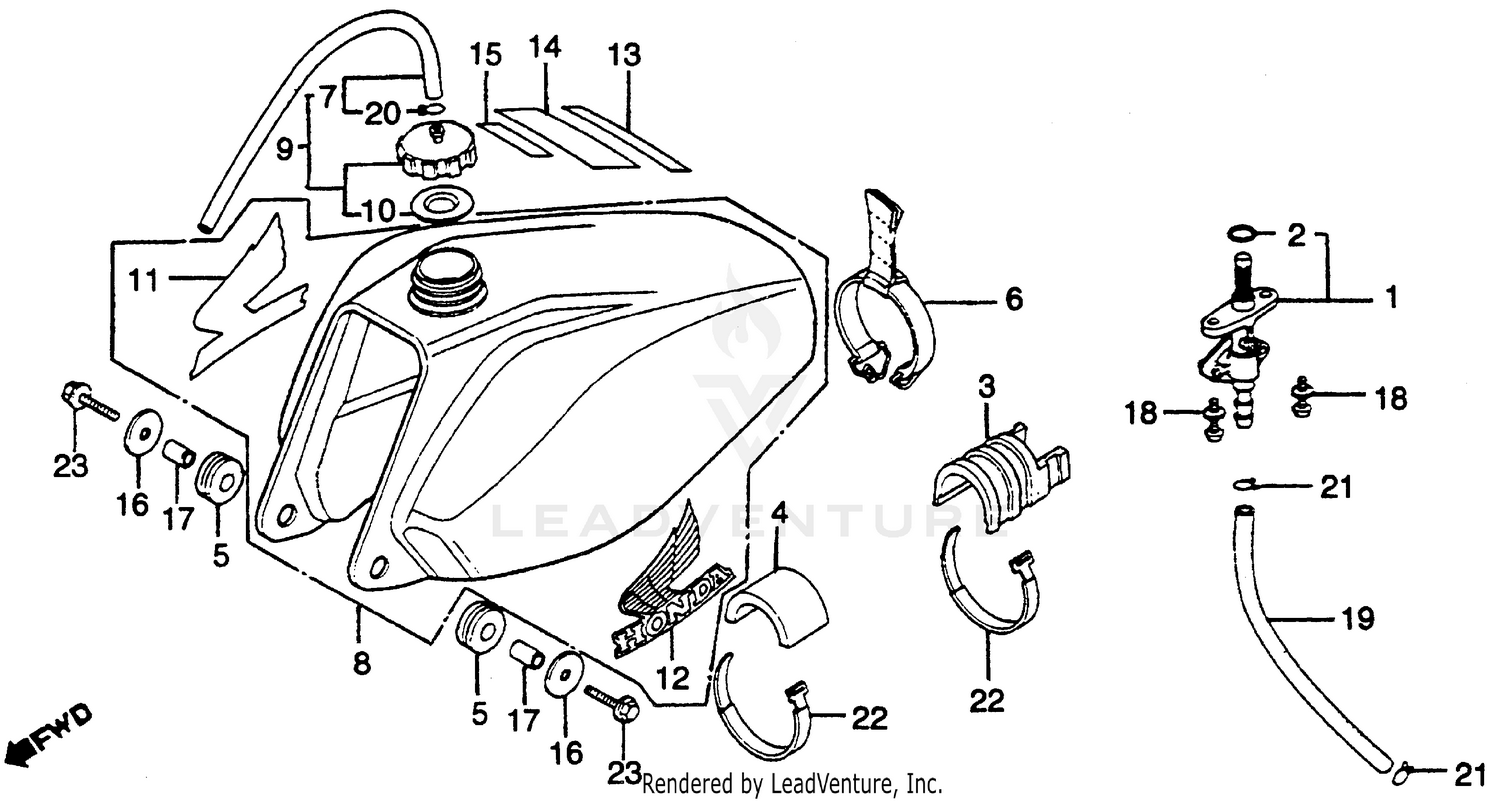

Fuel Tank 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY. (NOT AVAILABLE)
16950-357-010
|
$75.00 | ||
|
Unavailable |
|||
|
#2
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING (11.8X2.4)
91320-MJ6-003
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER A, FUEL TANK MOUNT (NOT AVAILABLE)
17504-444-000
|
$13.22 | ||
|
Unavailable |
|||
|
#4
RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)
17506-357-000
|
$6.40 | ||
|
Unavailable |
|||
|
#5
RUBBER, FR. FUEL TANK MOUNT (NOT AVAILABLE)
17508-430-000
|
$3.75 | ||
|
Unavailable |
|||
|
#6
BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)
17516-444-000
|
$16.94 | ||
|
Unavailable |
|||
|
#7
TUBE ASSY., FUEL CAP BREATHER (NOT AVAILABLE)
17517-444-000
|
$4.47 | ||
|
Unavailable |
|||
|
#8
TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)
17520-444-000ZA
|
$1,023.15 | ||
|
Unavailable |
|||
|
#9
CAP ASSY., FUEL FILLER (NOT AVAILABLE)
17620-444-000
|
$30.02 | ||
|
Unavailable |
|||
|
#10
GASKET, FUEL CAP (NOT AVAILABLE)
17624-430-000
|
$3.52 | ||
|
Unavailable |
|||
|
#11
EMBLEM, R. FUEL TANK (A.M.)
87123-391-670
|
$21.07 | ||
|
Unavailable |
|||
|
#12
EMBLEM, L. FUEL TANK (A.M.)
87124-391-670
|
$21.07 | ||
|
Unavailable |
|||
|
#13
MARK A, CAUTION (NOT AVAILABLE)
87208-357-670
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, OPERATOR WARNING *NH1* (BLACK)
87510-147-670
Superseded by 87510-147-670ZA
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, OPERATOR WARNING *NH1* (BLACK)
87510-147-670ZA
|
$3.35 | ||
|
Unavailable |
|||
|
#15
LABEL, CAUTION
87560-357-671
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, FUEL TANK MOUNT (NOT AVAILABLE)
90136-444-000
|
$2.34 | ||
|
Unavailable |
|||
|
#17
COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)
90137-444-000
|
$4.70 | ||
|
Unavailable |
|||
|
#18
SCREW-WASHER (6X16)
93891-06016-08
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (6X16)
93891-06016-18
Superseded by 93891-06016-08
|
$1.28 | ||
|
Unavailable |
|||
|
#19
BULK HOSE, FUEL (7.5X8000) (7.3X230)
95001-75008-60M
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BAND A3, CABLE
95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
