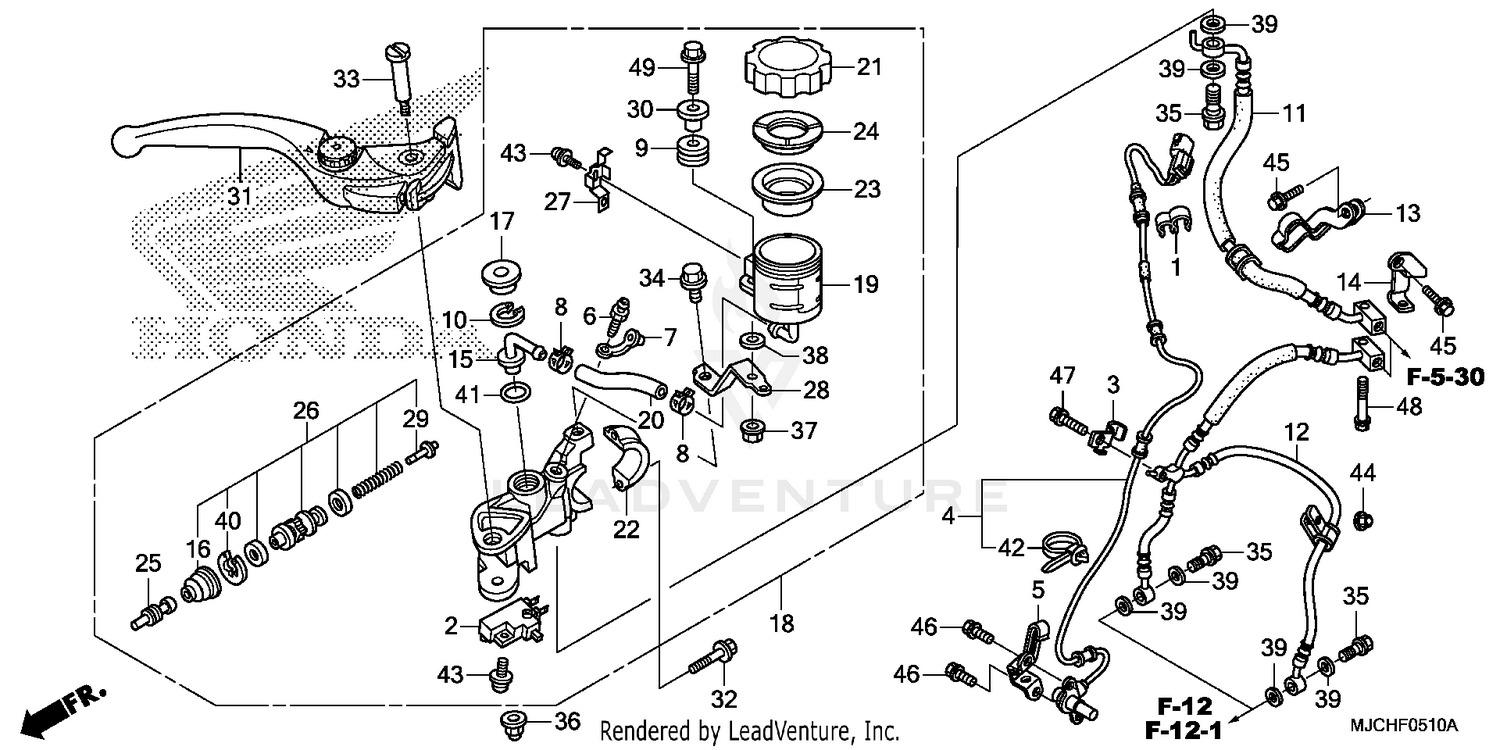

Front Brake Master Cylinder (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, PIPE
11152-KS4-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP B, SENSOR WIRE
38514-MEJ-J00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR, FR. WHEEL SPEED
38520-MFJ-A51
|
$215.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, FR. SENSOR WIRE
38525-MFJ-A50
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, OIL CUP
43516-MCJ-006
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP, RR. MASTER CYLINDER (FOR FR.)
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE A, FR. BRAKE
45124-MJC-D11
|
$62.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE B, FR. BRAKE
45127-MJC-M61
|
$163.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, FR. BRAKE HOSE
45159-MFJ-A50
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, FR. BRAKE HOSE
45163-MFJ-A50
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONNECTOR, MASTER CYLINDER (NISSIN)
45503-KV3-006
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT
45504-MCF-006
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DUST (NISSIN)
45505-KV3-006
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MJC-A01
|
$364.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MJC-305
Superseded by 45510-MJC-A01
|
$364.16 | ||
|
Unavailable |
|||
|
#19
CUP, OIL
45511-MEL-D21
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, MASTER CYLINDER OIL
45512-KV3-951
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, OIL CUP
45513-MEL-D21
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, MASTER CYLINDER
45517-MFL-006
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD, PUSH
45525-MEL-016
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
MASTER CYLINDER SET
45530-MFJ-D01
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, STOP
45535-MR8-901
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY, FR. MASTER CYLINDER
45550-MFJ-D01
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE, SPRING
46140-MFJ-D01
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER ASSY., R. HANDLE
53170-MEL-006
|
$63.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER ASSY., R. HANDLE
53170-MEL-305
Superseded by 53170-MEL-006
|
$63.67 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X22)
90101-MBZ-G00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HANDLE LEVER
90114-MCF-006
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
90117-MR7-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER (6X16)
90473-147-000
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CIRCLIP
90651-MCF-006
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, HARNESS BAND (145MM) (BLACK)
91541-S0A-003
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#44
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X35)
96001-06035-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (6X28)
96300-06028-07
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
