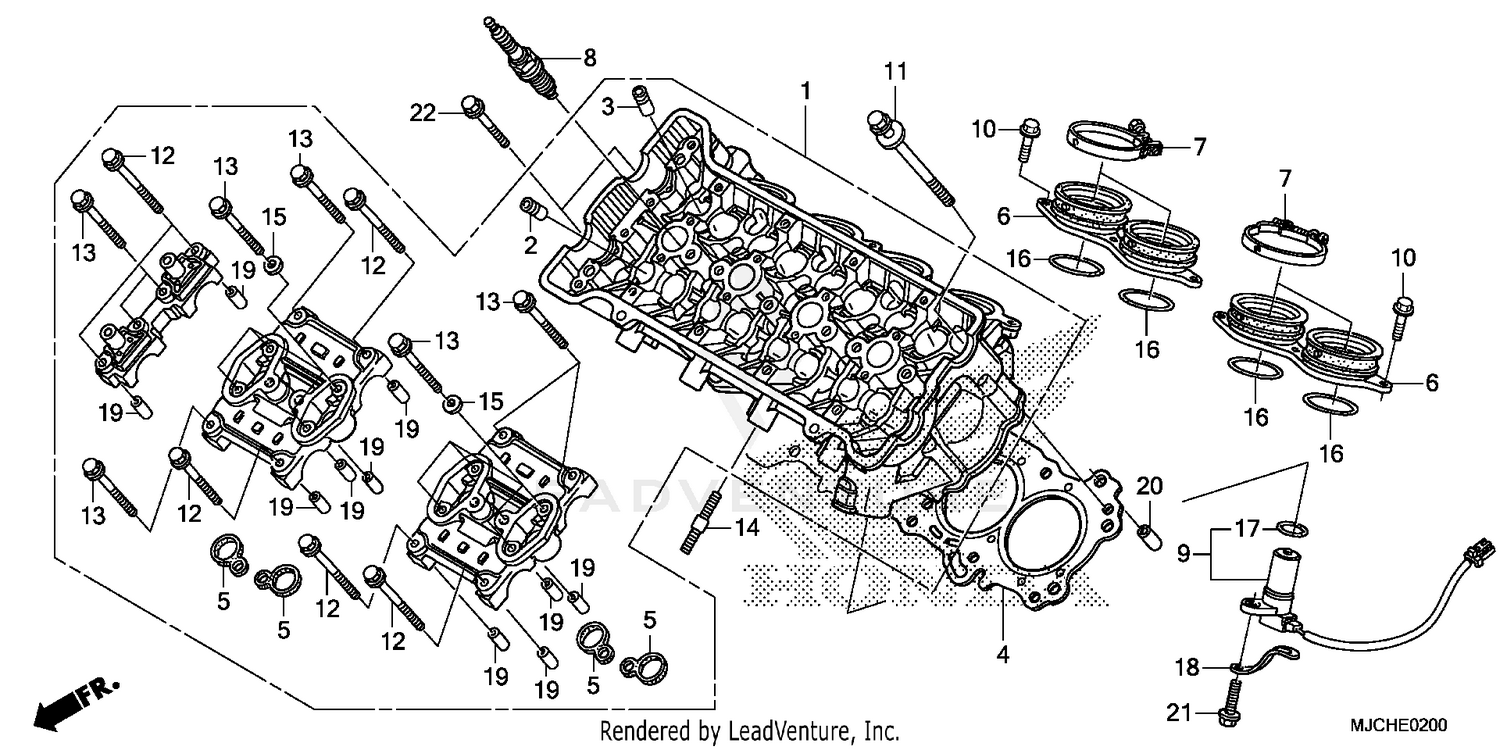

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MFJ-A40
|
$1,475.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)
12204-MBW-305
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OVER SIZE)
12204-MFJ-305
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MFJ-D01
|
$88.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, PLUG HOLE
12395-MBW-003
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
16210-MFJ-D00
|
$73.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16217-MFJ-D00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (VUH27D) (DENSO)
31922-MBW-E12
|
$38.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PULSER ASSY., CAM
36140-MFJ-D01
|
$80.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (9X90)
90007-MBW-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (8X24)
90035-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (40X2.5)
91301-MFJ-D00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (16X2.1) (NOK) (Honda Code 3301793)
91309-PX4-003
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP (2X60)
91410-KPE-C20
|
$3.62 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL (8X20) (Honda Code 1417369)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#20
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X18) (Honda Code 2410918)
95701-06018-07
|
$1.70 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
