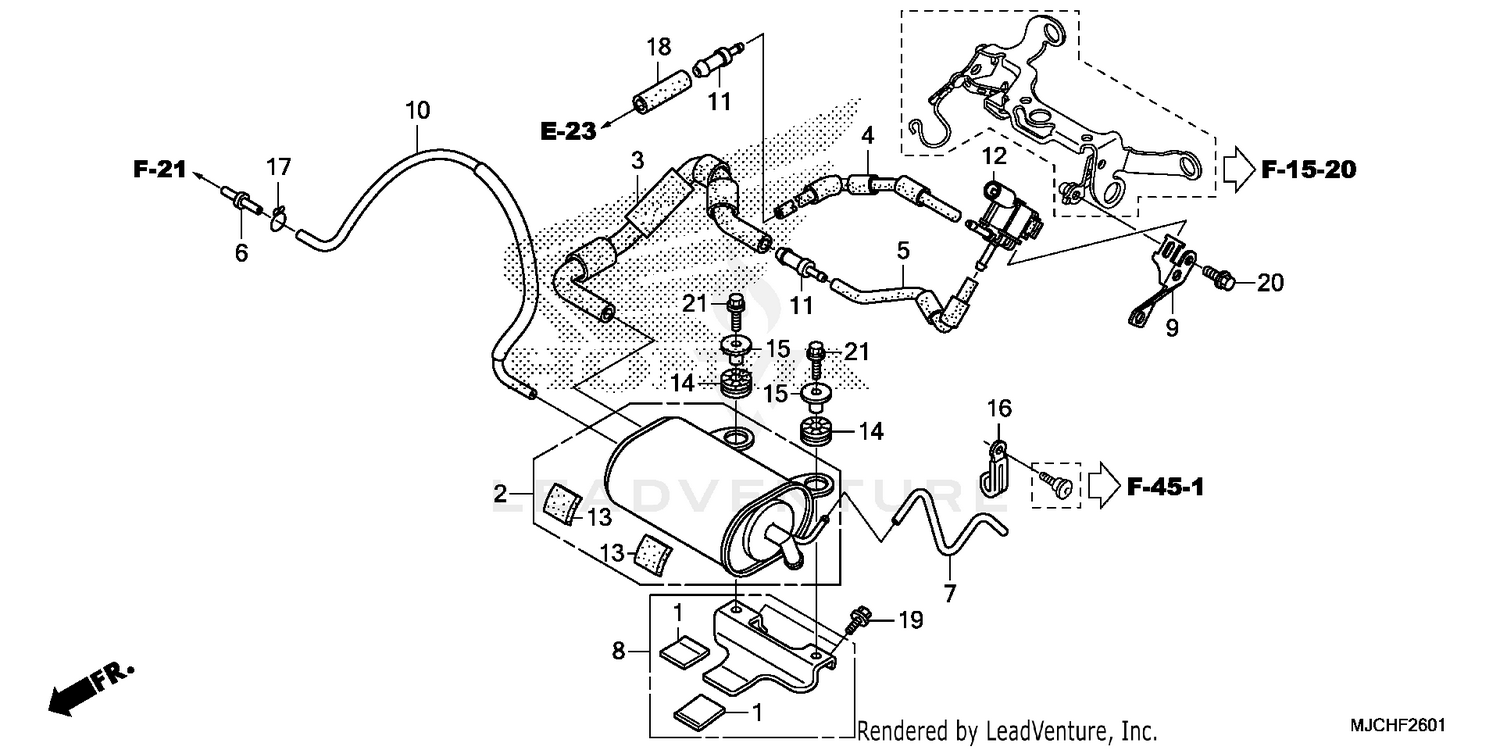

Evap Canister (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, AIR CLEANER HOUSING
17209-GN2-300
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
EVAPORATIVE EMISSION CANISTER
17410-MFJ-L00
|
$331.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE A, CANISTER PURGE CONTROL VALVE
17412-MFJ-L40
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FIVE WAY-PURGE CONTROL VALVE
17413-MFJ-L40
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE B, CANISTER PURGE CONTROL VALVE
17414-MFJ-L40
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT (3.5) (TWO-WAY)
17414-PC6-660
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, CANISTER DRAIN
17434-MFJ-L00
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, CANISTER
17440-MFJ-L00
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, PCS
17445-MFJ-L40
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE (CANISTER-2WAY)
17556-MFJ-L40
|
$26.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, BREATHER TUBE
17561-MEE-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE ASSY., PURGE CONTROL SOLENOID
36160-P0A-A01
|
$419.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, BATTERY
50328-HP1-600
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER B, SEAT MOUNTING
77208-KW7-900
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR (6.2X13)
90501-MA3-720
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, TUBE (B8) CLIP, TUBE (B7)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
