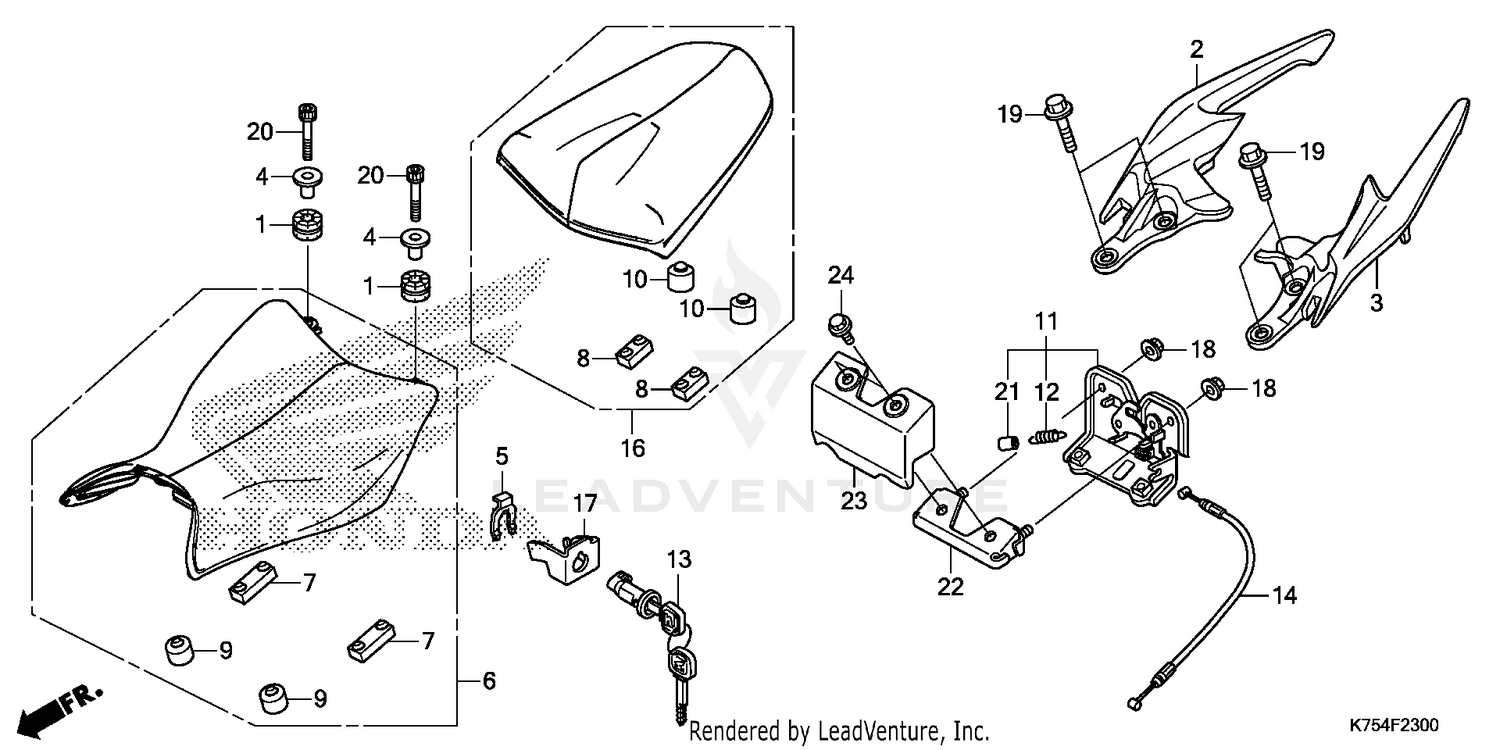

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER A, TAILLIGHT MOUNTING
33705-KW7-900
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP, R. RR. *NH303M* (MAT AXIS GRAY METALLIC)
50315-K33-D00ZA
|
$42.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP, L. RR. *NH303M* (MAT AXIS GRAY METALLIC)
50325-K33-D00ZA
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FENDER (BLACK) (FOR RR.)
61104-428-730
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SINGLE (TYPE1)
77100-K33-D00ZA
|
$94.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SEAT SETTING
77205-KPP-T00
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SEAT CUSHION
77206-KPP-T00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, SEAT CUSHION
77207-KYJ-900
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK, SEAT
77220-K33-D00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, SEAT LOCK
77234-GN2-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, SEAT LOCK
77239-KVB-900
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE, SEAT LOCK
77240-KYJ-900
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT, PILLION
77300-K33-D00
|
$94.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, SEAT LOCK CABLE
77582-KPP-T00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X20)
95701-08020-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (6X25)
96600-06025-08
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, VINYL (8X9X20) (95003-21001-10M)
95003-21002-10
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, SEAT LOCK
77250-K33-D01
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUARD, SEAT LOCK
77260-K33-D00
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIVOT, SHIFT DRUM STOPPER ARM
90023-MGZ-J00
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
