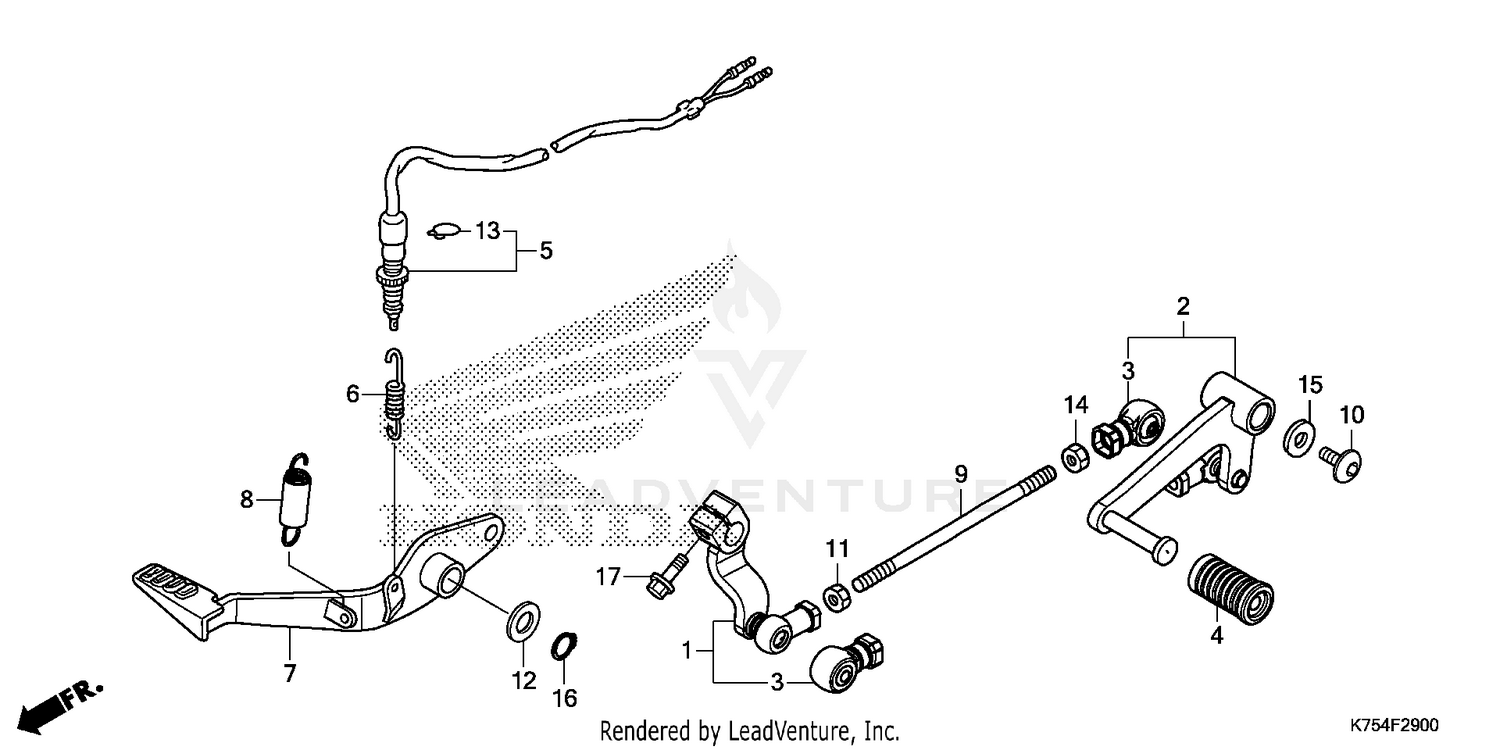

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT (COO)
24710-KYJ-000
Superseded by 24710-KYJ-305
|
$29.60 | ||
|
Available to order. Add to View Price |
|||
|
#1
ARM, GEARSHIFT (COO)
24710-KYJ-305
|
$29.60 | ||
|
Unavailable |
|||
|
#2
PEDAL, GEARSHIFT (COO)
24720-KYJ-000
Superseded by 24720-KYJ-305
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, GEARSHIFT (COO)
24720-KYJ-305
|
$25.78 | ||
|
Unavailable |
|||
|
#3
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-KYJ-902
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, STOP SWITCH
35357-HP0-A00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, RR. BRAKE (COO)
46500-KYJ-305
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, RR. BRAKE (COO)
46500-KYJ-900
Superseded by 46500-KYJ-305
|
$23.05 | ||
|
Unavailable |
|||
|
#8
SPRING ASSY., BRAKE PEDAL
46513-KYJ-900
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, TIE ROD
90105-KYJ-900
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, PAN (6X10)
90132-KPP-T00
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPECIAL (6MM) (LEFT HAND THREAD)
90301-KYJ-900
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (6MM)
94103-06700
|
$0.75 | ||
|
Unavailable |
|||
|
#16
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
