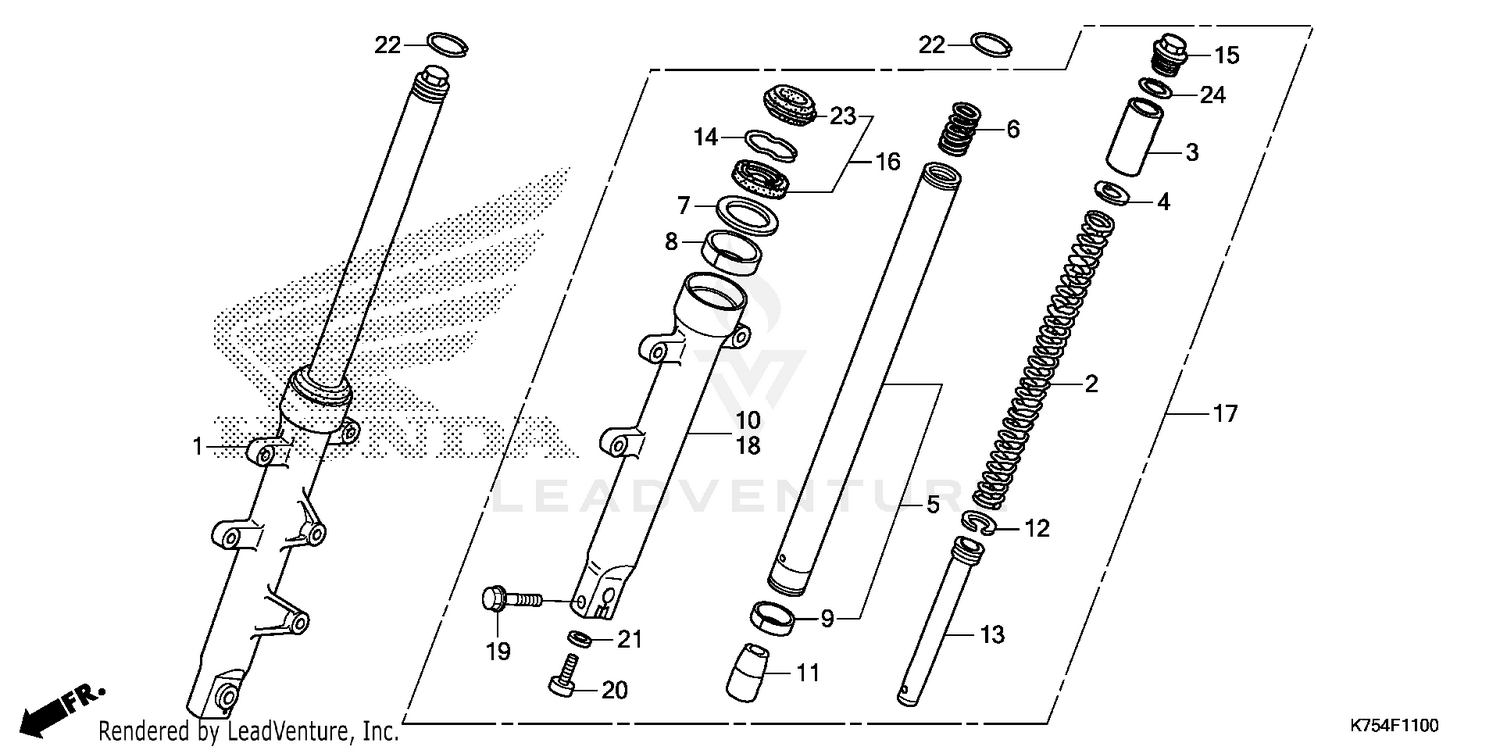

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR. (COO) (SHOWA)
51400-KYJ-305
|
$290.56 | ||
|
Available to order. Add to View Price |
|||
|
#1
FORK ASSY., R. FR. (COO) (SHOWA)
51400-KYJ-921
Superseded by 51400-KYJ-305
|
$290.56 | ||
|
Unavailable |
|||
|
#2
SPRING, FR. FORK
51401-KYJ-901
|
$37.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51402-KYJ-901
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SPRING JOINT
51403-ME4-003
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, FR. FORK
51410-KYJ-901
|
$184.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FR. FORK REBOUND
51411-MG1-003
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BACK-UP
51412-461-003
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE
51414-KFB-901
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SLIDER
51415-KFB-901
Superseded by 51415-KSE-A71
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, R. (LOWER)
51420-KYJ-921
|
$117.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCK
51432-KAZ-003
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, PISTON
51437-ML7-691
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SEAT
51440-KYJ-901
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KR6-003
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FR. FORK
51450-KAS-901
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL SET, FR. FORK
51490-KWL-003
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK ASSY., L. FR. (COO) (SHOWA)
51500-KYJ-305
|
$278.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK ASSY., L. FR. (COO) (SHOWA)
51500-KYJ-921
Superseded by 51500-KYJ-305
|
$278.33 | ||
|
Unavailable |
|||
|
#18
CASE, L. (LOWER)
51520-KYJ-921
|
$104.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X45)
90109-MR7-000
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, SOCKET (8MM) (SHOWA)
90116-KV3-701
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPECIAL (8MM) (SHOWA)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RING, STOPPER
90602-ME7-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL DUST SEAL, FR. FORK
91254-KAZ-003
|
$20.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (27.7X3.5)
91357-ME4-003
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
