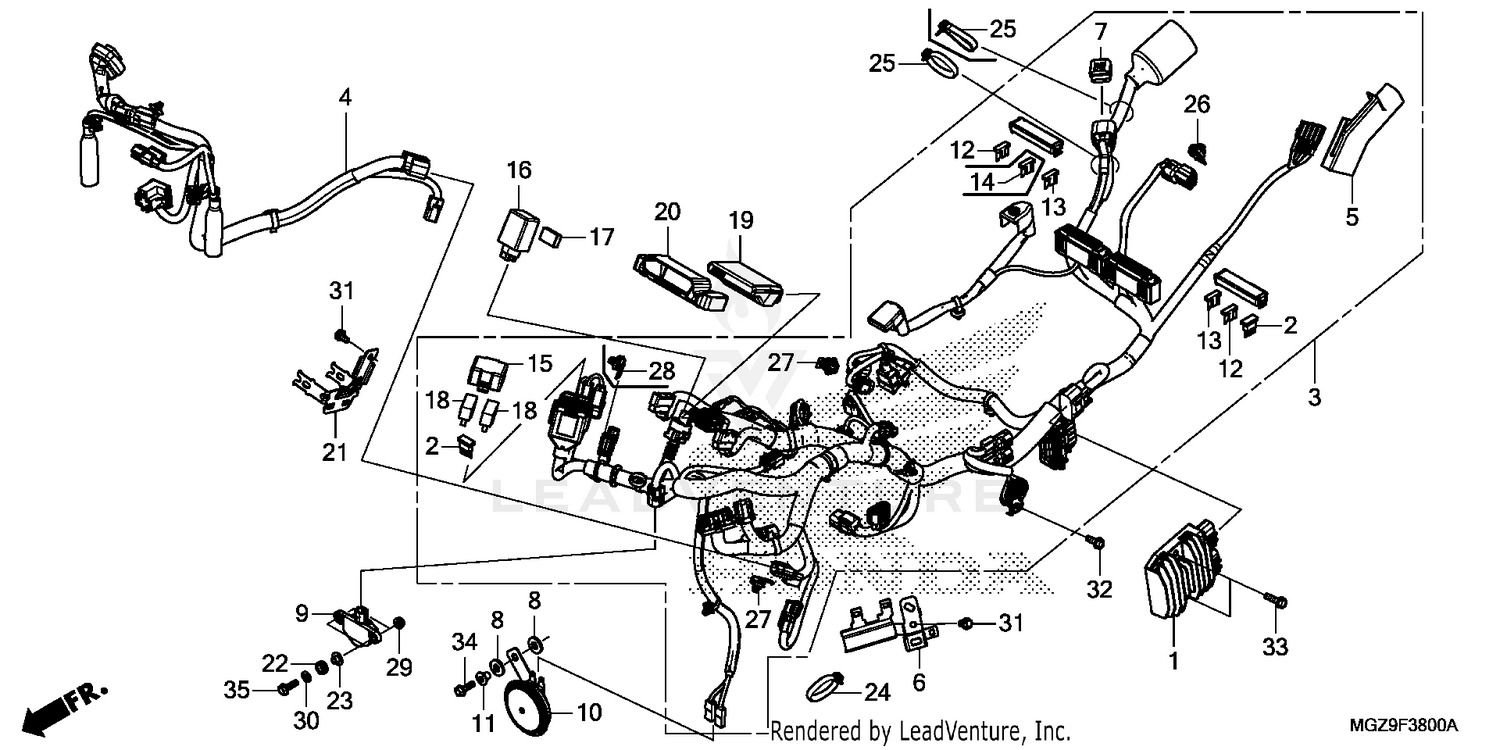

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY., REGULATOR
31600-MGZ-J01
|
$227.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MGZ-C51
|
$1,511.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUB-HARNESS, FR.
32103-MGZ-J80
|
$110.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUSPENSION, CONNECTOR
32109-MGZ-J41
|
$27.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, CONNECTOR
32206-MGZ-J00
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, TAILLIGHT BRACKET
33714-KL3-620
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., BANK ANGLE
35160-MGS-D31
|
$171.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
HORN (HIGH)
38110-KPP-T01
|
$40.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, HORN SETTING
38117-KFE-701
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE, BLADE (7.5A)
38221-SNA-A31
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE, BLADE (15A)
38221-SNA-A51
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE, BLADE (30A)
38221-SNA-A81
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, RELAY BOX
38281-MGZ-J01
|
$16.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY, TURN SIGNAL (MITSUBA)
38301-MEW-921
|
$54.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
38306-KK4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#19
PGM-FI UNIT
38770-MGZ-C93
|
$425.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION, PGM-FI UNIT
38774-MGZ-J00
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, RELAY BOX
50194-MGZ-J00
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, SIDE COVER
64535-MFJ-D00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR, BANK ANGLE SENSOR
90129-MGZ-J00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
