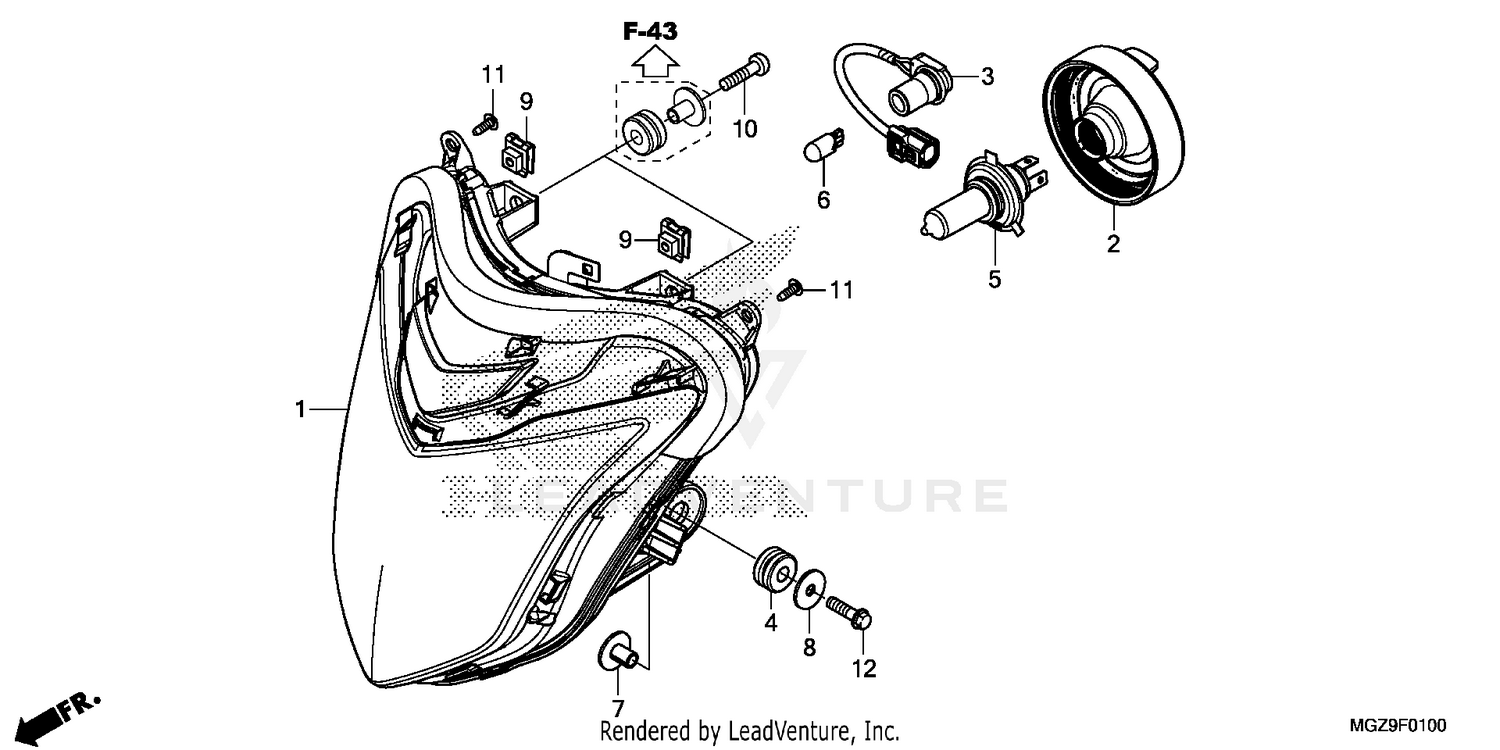

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT (COO)
33110-MGZ-306
|
$328.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, RUBBER
33112-KWR-003
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET
33120-MGZ-J41
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, TAILLIGHT MOUNTING
33706-KW7-900
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (H4) (12V 60/55W) (KOITO)
34901-KWR-003
|
$55.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V/5W) (STANLEY)
34351-657-921
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BULB (12V/5W) (STANLEY)
34908-SB6-003
Superseded by 34351-657-921
|
$4.30 | ||
|
Unavailable |
|||
|
#7
COLLAR
61104-KZZ-900
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, HEADLIGHT BRACKET MOUNTING
77302-KW7-900
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CLIP (6MM)
90305-GK8-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X25)
93500-06025-0A
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)
96001-06025-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
