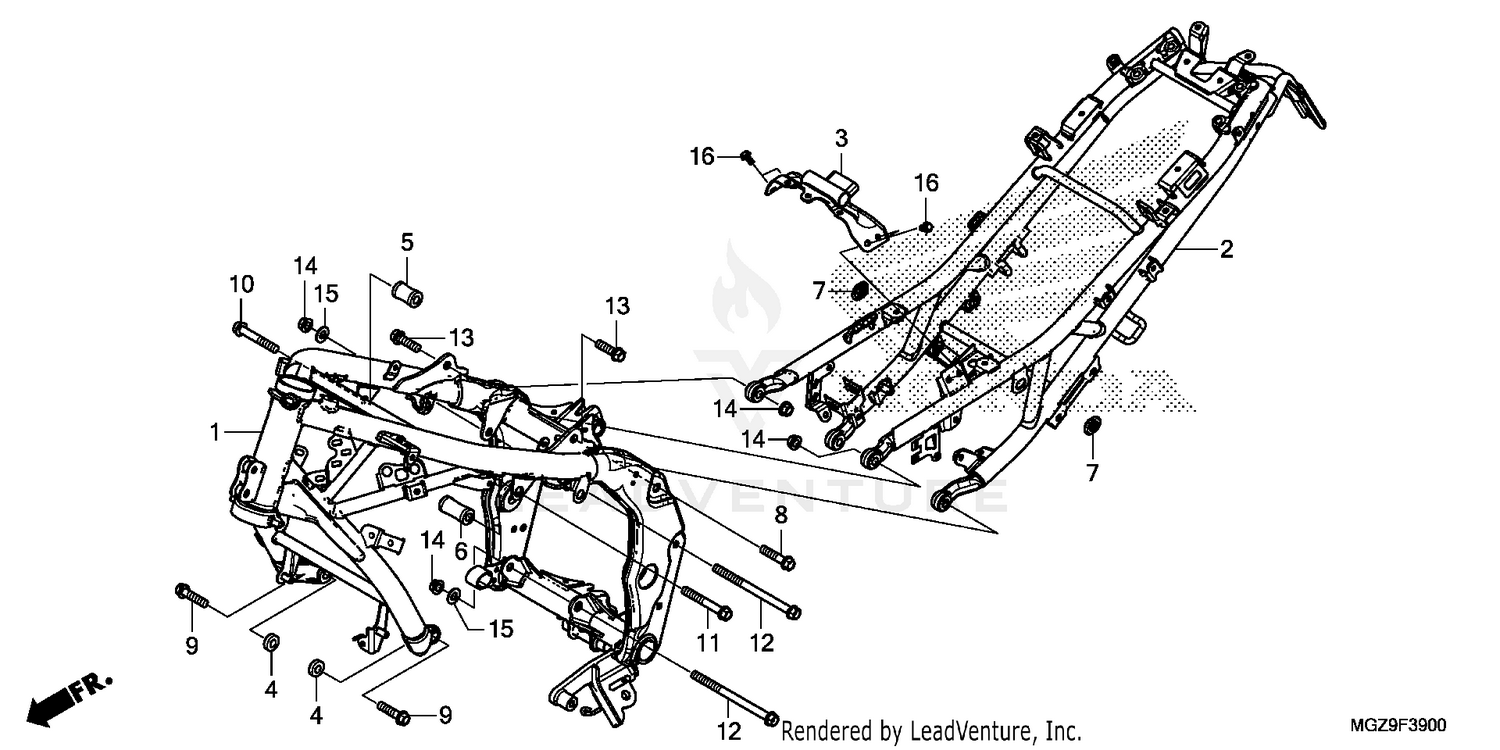

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
50100-MGZ-J80ZA
|
$2,122.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
50240-MGZ-J80ZA
Superseded by 50240-MGZ-J82ZA
|
$290.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
50240-MGZ-J81ZA
Superseded by 50240-MGZ-J82ZA
|
$290.45 | ||
|
Unavailable |
|||
|
#2
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
50240-MGZ-J82ZA
|
$290.45 | ||
|
Unavailable |
|||
|
#3
BRACKET, FUEL TANK
50295-MGZ-J00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR A, ENGINE HANGER
50351-MGZ-J01
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR B, R. ENGINE HANGER
50353-MGZ-J00
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR B, L. ENGINE HANGER
50354-MGZ-J00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (10X45)
90101-KTB-000
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X40)
90101-MGZ-J00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X65)
90102-MGZ-J00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X75)
90103-MGZ-J00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X146)
90104-KYJ-900
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X35)
90168-S2A-010
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10.5X22X1.6)
94101-10800
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
