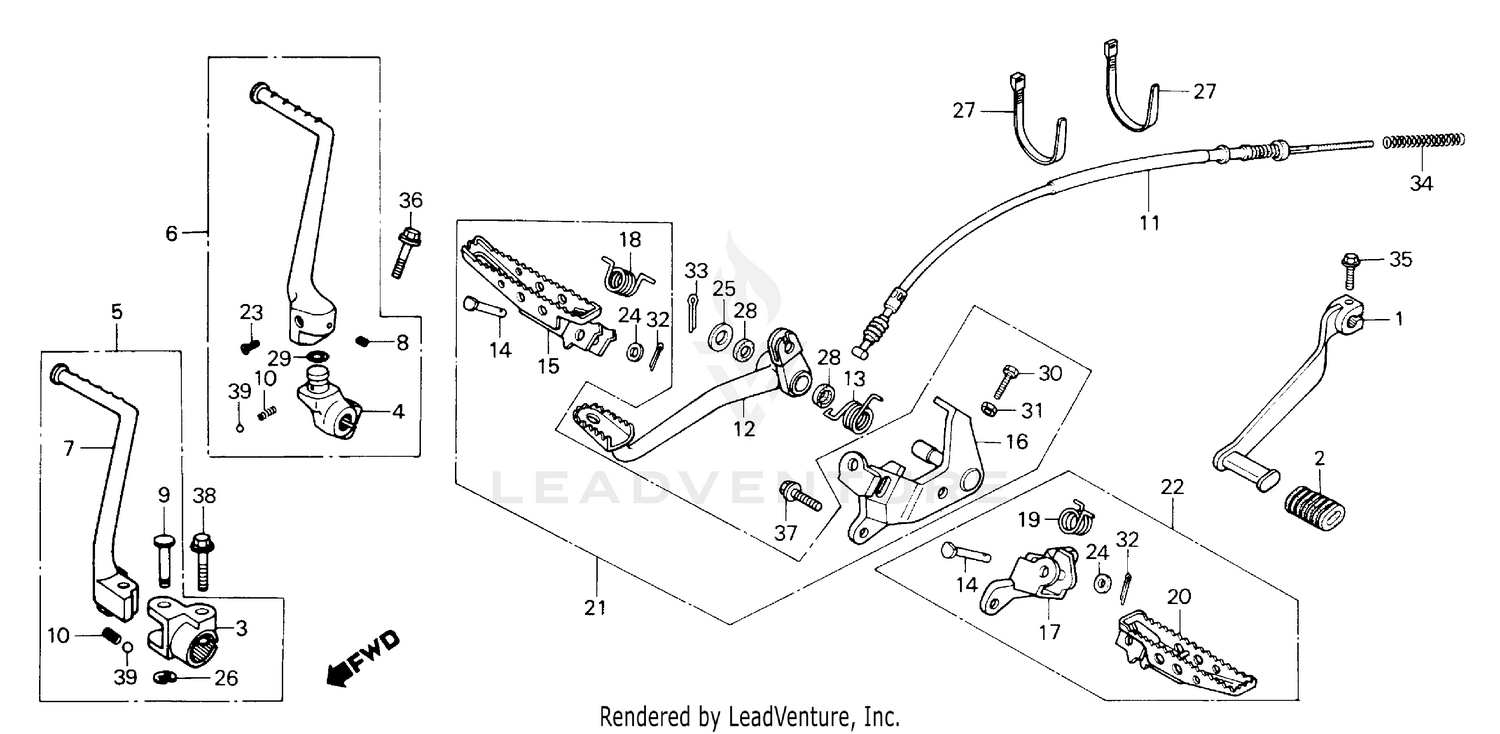

Step + Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-HA6-000
Superseded by 24700-HA0-680
|
$63.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, GEARSHIFT
24700-HA6-010
Superseded by 24700-HA0-680
|
$63.93 | ||
|
Unavailable |
|||
|
#1
PEDAL, GEARSHIFT
24700-HA0-680
|
$63.93 | ||
|
Unavailable |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-371-000
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
JOINT, KICK ARM (NOT AVAILABLE)
28241-HA6-000
Superseded by 28241-HA8-000
|
$44.55 | ||
|
Unavailable |
|||
|
#5
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-HA6-000
|
$104.80 | ||
|
Unavailable |
|||
|
#7
ARM, KICK STARTER
28301-HA6-000
|
$68.38 | ||
|
Unavailable |
|||
|
#9
PIN, KICK STARTER (NOT AVAILABLE)
28321-HA6-000
|
$5.20 | ||
|
Unavailable |
|||
|
#10
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE, FOOT BRAKE
43470-HA6-000
|
$28.72 | ||
|
Unavailable |
|||
|
#12
PEDAL, BRAKE (NOT AVAILABLE)
46500-HA6-000
|
$67.75 | ||
|
Unavailable |
|||
|
#13
SPRING, BRAKE PEDAL
46514-HA0-000
|
$7.28 | ||
|
Unavailable |
|||
|
#14
PIN, STEP JOINT (NOT AVAILABLE)
50603-964-670
Superseded by 50603-HA0-680
|
$4.21 | ||
|
Unavailable |
|||
|
#15
STEP, R. (NOT AVAILABLE)
50610-964-670
Superseded by 50610-HA0-770
|
$35.30 | ||
|
Unavailable |
|||
|
#16
PLATE, R. STEP (NOT AVAILABLE)
50615-HA0-000
|
$60.90 | ||
|
Unavailable |
|||
|
#17
PLATE, L. STEP
50616-HA0-000
|
$31.25 | ||
|
Unavailable |
|||
|
#18
SPRING, R. STEP RETURN
50617-964-000
Superseded by 50617-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#18
SPRING, R. STEP RETURN
50617-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#19
SPRING, L. STEP RETURN
50618-964-000
Superseded by 50618-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#19
SPRING, L. STEP RETURN
50618-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#20
STEP, L. (NOT AVAILABLE)
50620-964-670
Superseded by 50620-HA0-770
|
$35.30 | ||
|
Unavailable |
|||
|
#21
ARM ASSY., R. STEP (NOT AVAILABLE)
50630-HA0-000
Superseded by 50630-HA0-770
|
$76.09 | ||
|
Unavailable |
|||
|
#22
ARM ASSY., L. STEP (NOT AVAILABLE)
50640-HA0-000
Superseded by 50640-HA0-770
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (8MM)
90450-147-000
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (17.5MM)
90512-303-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
E-RING (8MM)
90601-473-003
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAND, SELF-LOCK
91058-MG9-681
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (17X23X3)
91206-968-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. (6X25)
92025-06025-0A
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#32
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#33
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#33
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#33
PIN, COTTER (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#34
SPRING, RR. BRAKE ROD
43467-HA0-000
|
$2.19 | ||
|
Unavailable |
|||
|
#34
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (10X35)
95800-10035-00
Superseded by 95801-10035-00
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (10X35)
95801-10035-00
|
$2.33 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (8X32)
95701-08032-00
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (8X32)
95900-08032-00
Superseded by 95701-08032-00
|
$1.58 | ||
|
Unavailable |
|||
|
#39
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
