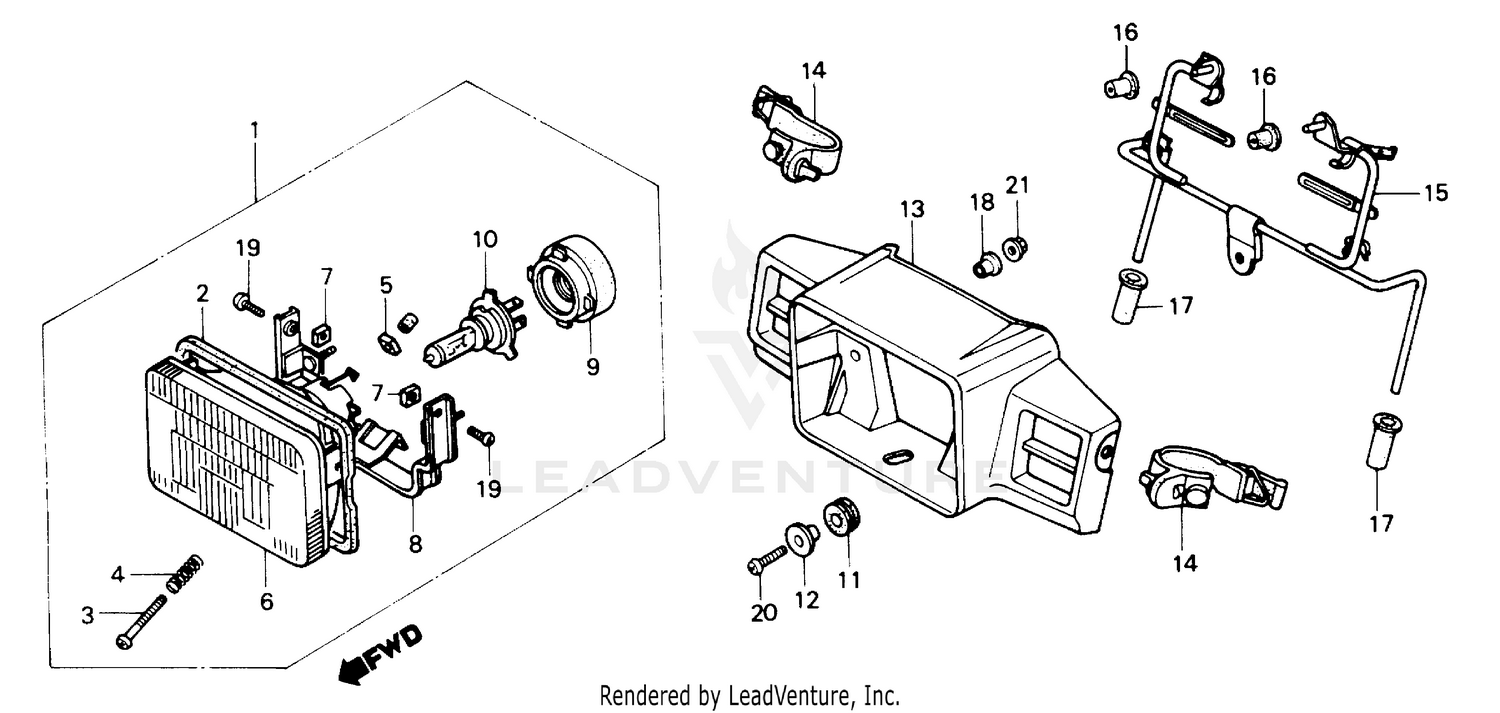

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-HA2-003
|
$119.40 | ||
|
Unavailable |
|||
|
#2
GASKET, HEADLIGHT (NOT AVAILABLE)
33102-HA2-003
|
$6.17 | ||
|
Unavailable |
|||
|
#3
SCREW, HEADLIGHT BEAM ADJUSTING
33103-329-003
|
$3.96 | ||
|
Unavailable |
|||
|
#4
SPRING, BEAM ADJUSTING
33107-KJ9-003
|
$2.46 | ||
|
Unavailable |
|||
|
#5
NUT, BEAM ADJ.
33118-438-841
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEADLIGHT UNIT (NOT AVAILABLE)
33120-HA2-003
|
$52.28 | ||
|
Unavailable |
|||
|
#7
NUT, UNIT HOLDER
33128-471-003
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SETTING (NOT AVAILABLE)
33153-HA2-003
|
$8.85 | ||
|
Unavailable |
|||
|
#9
COVER, RUBBER (NOT AVAILABLE)
33180-HA2-003
|
$12.43 | ||
|
Unavailable |
|||
|
#10
BULB, HEADLIGHT (12V 45/45W)
34901-KJ9-003
Superseded by 34901-MN5-003
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB, HEADLIGHT (12V45/45W) (H4) (HALOGEN) (STANLEY)
34901-MN5-003
|
$57.42 | ||
|
Unavailable |
|||
|
#11
RUBBER, FR. FENDER SETTING
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SETTING
61104-422-000
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GARNISH, HEADLIGHT (NOT AVAILABLE)
61301-HA6-003
|
$77.32 | ||
|
Unavailable |
|||
|
#14
BAND, HEADLIGHT CASE
61309-KJ2-000
Superseded by 61309-KJ2-010
|
$16.40 | ||
|
Unavailable |
|||
|
#14
BAND, HEADLIGHT CASE
61309-KJ2-010
|
$16.40 | ||
|
Unavailable |
|||
|
#15
BRACKET, HEADLIGHT
61310-HA6-000
|
$80.32 | ||
|
Unavailable |
|||
|
#16
BOOT, HEADLIGHT BRACKET
61312-149-300
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET, HEADLIGHT CASE
61312-358-300
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X10)
93500-05010-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X20)
93500-06020-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
