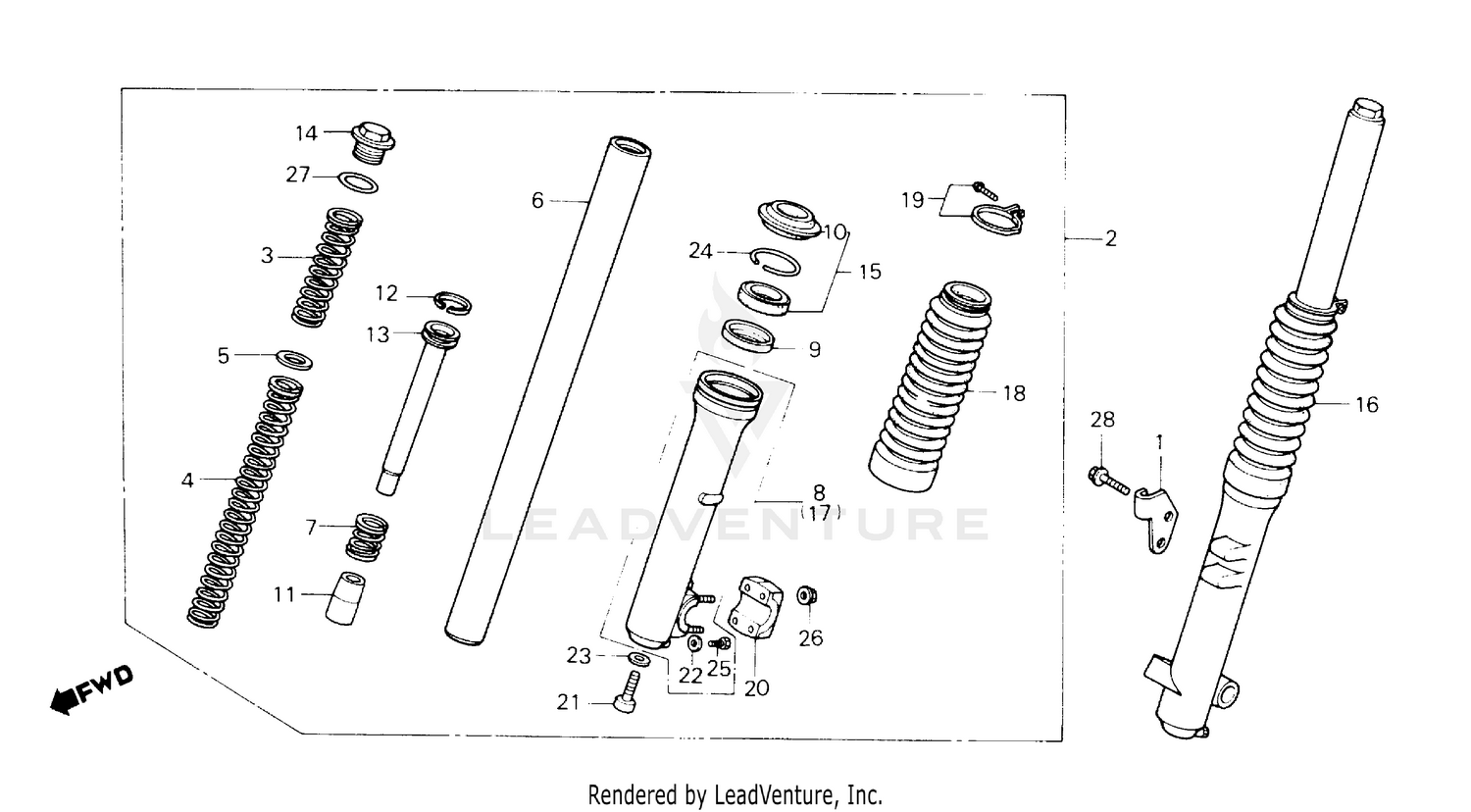

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECEIVER, BRAKE CABLE (NOT AVAILABLE)
45453-HA6-000
|
$9.55 | ||
|
Unavailable |
|||
|
#2
FORK ASSY., R. FR. (NOT AVAILABLE)
51400-HA6-003
Superseded by 51400-HA6-013
|
$586.05 | ||
|
Unavailable |
|||
|
#2
FORK ASSY., R. FR. (NOT AVAILABLE)
51400-HA6-013
|
$586.05 | ||
|
Unavailable |
|||
|
#3
SPRING, FR. FORK
51401-HA6-003
|
$18.13 | ||
|
Unavailable |
|||
|
#4
SPRING B, FR. FORK (NOT AVAILABLE)
51402-HA6-003
|
$49.15 | ||
|
Unavailable |
|||
|
#5
SEAT, SPRING
51403-KJ3-003
|
$1.90 | ||
|
Unavailable |
|||
|
#6
PIPE, FR. FORK (NOT AVAILABLE)
51410-HA6-003
|
$151.33 | ||
|
Unavailable |
|||
|
#7
SPRING, FR. FORK REBOUND
51412-340-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, R. (LOWER) (NOT AVAILABLE)
51420-HA6-003
Superseded by 51420-HA6-681
|
$191.78 | ||
|
Unavailable |
|||
|
#8
CASE, R. (LOWER) (NOT AVAILABLE)
51420-HA6-013
Superseded by 51420-HA6-681
|
$191.78 | ||
|
Unavailable |
|||
|
#9
RING, BACK-UP
51422-376-003
Superseded by 51422-376-305
|
$6.89 | ||
|
Unavailable |
|||
|
#9
RING, BACK-UP
51422-376-305
|
$6.89 | ||
|
Unavailable |
|||
|
#10
DUST SEAL
51425-473-003
|
$30.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIECE, OIL LOCKING
51432-447-731
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, PISTON
51437-400-771
|
$7.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIPE, SEAT (NOT AVAILABLE)
51440-HA6-003
|
$38.38 | ||
|
Unavailable |
|||
|
#14
BOLT, FR. FORK
51454-471-003
|
$26.67 | ||
|
Unavailable |
|||
|
#15
SEAL SET, FR. FORK
51490-473-305
|
$44.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
FORK ASSY., L. FR.
51500-HA6-003
Superseded by 51500-HA6-013
|
$547.11 | ||
|
Unavailable |
|||
|
#16
FORK ASSY., L. FR.
51500-HA6-013
|
$547.11 | ||
|
Unavailable |
|||
|
#17
CASE, L. (LOWER)
51520-HA6-003
Superseded by 51520-HA6-681
|
$292.18 | ||
|
Unavailable |
|||
|
#17
CASE, L. (LOWER)
51520-HA6-013
Superseded by 51520-HA6-681
|
$292.18 | ||
|
Unavailable |
|||
|
#17
CASE, L. (LOWER)
51520-HA6-681
|
$292.18 | ||
|
Unavailable |
|||
|
#18
BOOT, FR. FORK
51611-965-003
|
$47.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, FR. FORK BOOT
51612-428-900
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, FR. FORK BOOT
51612-473-000
Superseded by 51612-428-900
|
$13.20 | ||
|
Unavailable |
|||
|
#20
HOLDER, AXLE
51634-MA0-003
|
$45.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8MM) (SHOWA)
90116-283-010
Superseded by 90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8MM) (SHOWA)
90116-383-721
|
$6.44 | ||
|
Unavailable |
|||
|
#22
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RING, OIL SEAL STOPPER
90601-369-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#26
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O-RING (23X2.8)
94608-50000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
