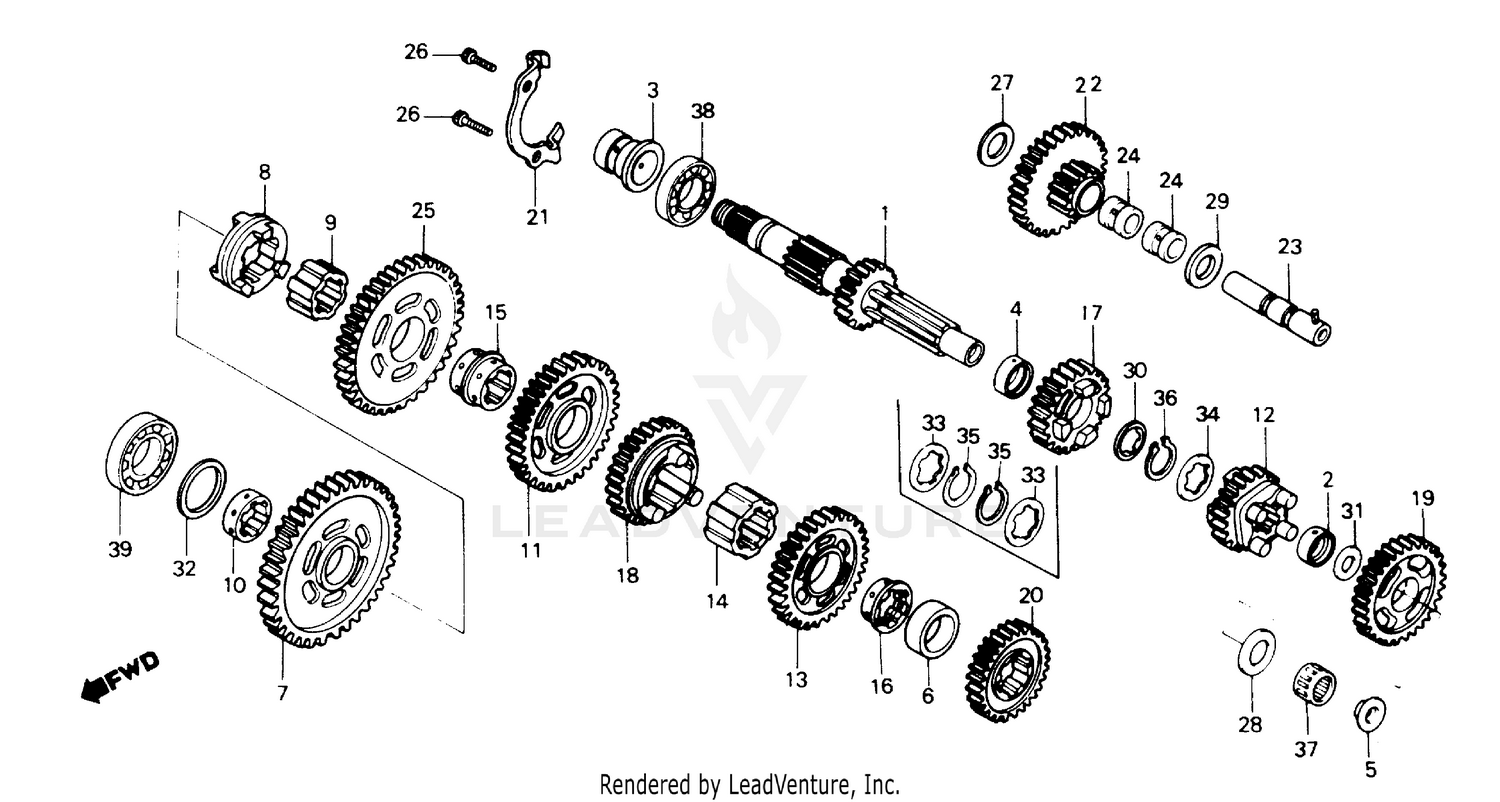

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (NOT AVAILABLE)
23211-HA6-680
Superseded by 23211-HA6-000
|
$128.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH (17MM)
23212-HA0-000
|
$17.61 | ||
|
Unavailable |
|||
|
#3
BUSH (22MM)
23213-HA0-000
|
$25.07 | ||
|
Unavailable |
|||
|
#4
BUSH A (22MM)
23214-HA0-000
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, OIL GUIDE (NOT AVAILABLE)
23219-HA0-000
|
$3.10 | ||
|
Unavailable |
|||
|
#6
COLLAR, COUNTERSHAFT
23224-HA0-680
|
$13.41 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT LOW (47T)
23411-HA6-770
|
$108.62 | ||
|
Unavailable |
|||
|
#8
SHIFTER, REVERSE COUNTERSHAFT LOW GEAR
23412-HA7-670
|
$81.93 | ||
|
Unavailable |
|||
|
#9
COLLAR, SPLINE
23413-HA7-670
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SPLINE (25MM)
23414-HA0-000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT SECOND (40T)
23431-HA6-770
|
$105.58 | ||
|
Unavailable |
|||
|
#12
GEAR, MAINSHAFT THIRD (25T)
23441-HA6-770
|
$100.72 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT THIRD (35T) (NOT AVAILABLE)
23451-HA6-000
|
$66.61 | ||
|
Unavailable |
|||
|
#14
COLLAR, SPLINE
23453-HA0-000
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, SPLINE
23454-HA0-770
|
$34.49 | ||
|
Unavailable |
|||
|
#16
BUSH B, SPLINE (25MM) (NOT AVAILABLE)
23455-HA0-000
|
$17.32 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT FOURTH (29T) (NOT AVAILABLE)
23461-HA6-770
|
$51.56 | ||
|
Unavailable |
|||
|
#18
GEAR, COUNTERSHAFT FOURTH (31T) (NOT AVAILABLE)
23471-HA6-000
|
$90.34 | ||
|
Unavailable |
|||
|
#19
GEAR, MAINSHAFT FIFTH (33T) (NOT AVAILABLE)
23481-HA6-000
|
$65.50 | ||
|
Unavailable |
|||
|
#20
GEAR, COUNTERSHAFT FIFTH (28T)
23491-HA6-000
|
$68.90 | ||
|
Unavailable |
|||
|
#21
PLATE, BEARING SETTING
23521-HA0-000
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, REVERSE IDLE (33T) (NOT AVAILABLE)
23721-HA6-000
|
$131.54 | ||
|
Unavailable |
|||
|
#23
SHAFT, REVERSE IDLE
23730-HA0-770
|
$27.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH, REVERSE IDLE GEAR
23732-HA0-000
|
$29.51 | ||
|
Unavailable |
|||
|
#25
GEAR, COUNTERSHAFT REVERSE (46T)
23751-HA6-770
|
$108.14 | ||
|
Unavailable |
|||
|
#26
BOLT, SOCKET (6X16)
96600-06016-10
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SOCKET (6X16)
96700-06016-10
Superseded by 96600-06016-10
|
$4.50 | ||
|
Unavailable |
|||
|
#27
WASHER, THRUST (14MM)
90402-HA0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (17MM)
90403-HA0-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (14MM)
90412-HA0-000
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK
90432-KF0-000
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, THRUST (17MM)
90452-178-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, THRUST (20MM)
90454-HA0-000
|
$4.42 | ||
|
Unavailable |
|||
|
#34
WASHER, SPLINE (22MM)
90464-KE8-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP (OUTER) (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE (17MM)
91001-HA0-004
|
$21.85 | ||
|
Unavailable |
|||
|
#38
BEARING, RADIAL BALL (62/22)
91005-KF0-008
Superseded by 91005-KS4-003
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (62/22)
91005-KS4-003
|
$49.00 | ||
|
Unavailable |
|||
|
#39
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
