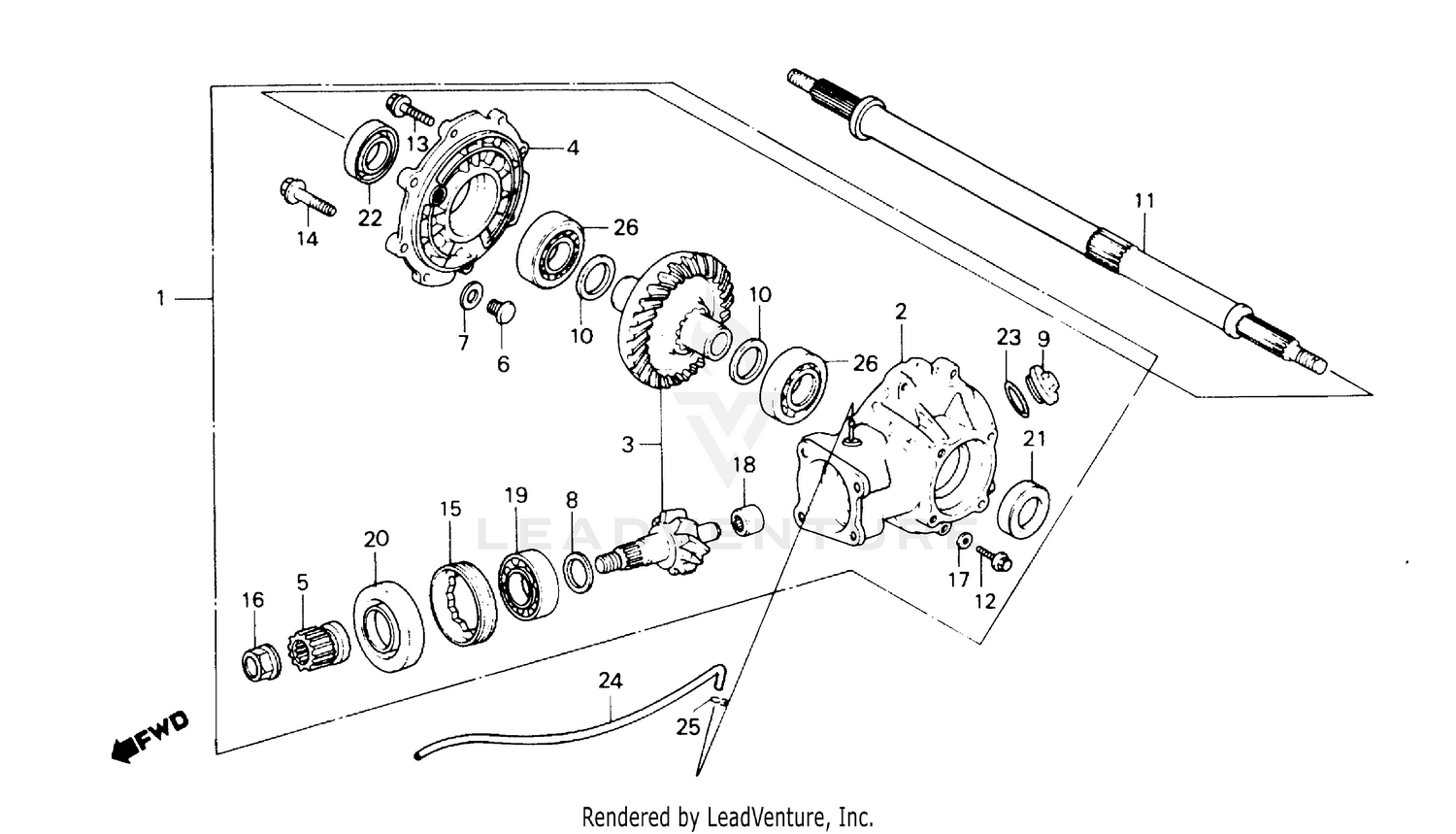

Final Driven Gear + Rear Axle Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY., FINAL
41300-HA6-680
|
$1,655.46 | ||
|
Unavailable |
|||
|
#2
CASE, FINAL GEAR
41301-HA6-680
|
$1,107.48 | ||
|
Unavailable |
|||
|
#3
GEAR SET, FINAL (NOT AVAILABLE)
41310-HA6-300
|
$316.16 | ||
|
Unavailable |
|||
|
#4
COVER, FINAL GEAR CASE
41321-HA6-680
|
$169.00 | ||
|
Unavailable |
|||
|
#5
JOINT, PINION
41411-HA0-000
|
$78.74 | ||
|
Unavailable |
|||
|
#6
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM A, PINION GEAR (1.82)
41451-HA0-000
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM B, PINION GEAR (1.88)
41452-HA0-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM C, PINION GEAR (1.94)
41453-HA0-000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM D, PINION GEAR (2.00)
41454-HA0-000
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM E, PINION GEAR (2.06)
41455-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#8
SHIM F, PINION GEAR (2.12)
41456-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#8
SHIM G, PINION GEAR (2.18)
41457-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#9
CAP, GEAR CASE OIL
41511-ME5-000
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER A, RING GEAR (1.82)
41540-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER B, RING GEAR (1.88)
41541-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER C, RING GEAR (1.94)
41542-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER D, RING GEAR (2.00)
41543-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER E, RING GEAR (2.06)
41544-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER F, RING GEAR (2.12)
41545-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER G, RING GEAR (2.18)
41546-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER H, RING GEAR (2.24)
41547-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER I, RING GEAR (2.30)
41548-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, RR. WHEEL (NOT AVAILABLE)
42311-HA6-680
|
$275.14 | ||
|
Unavailable |
|||
|
#12
BOLT, SEALING (8MM)
90109-ME5-000
Superseded by 90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (8X27)
90133-MB0-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X35)
90134-HA0-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (60MM)
90244-HA0-000
|
$43.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (16MM)
90381-HA0-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING, NEEDLE (14X22X16)
91061-HA0-004
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (22X56X16)
91061-ME4-004
|
$76.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (38X64X11) (KOYO)
91251-HA0-003
Superseded by 91251-HC5-005
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (38X64X11) (KOYO)
91251-HA0-013
Superseded by 91251-HC5-005
|
$20.40 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (38X64X11) (KOYO)
91251-HA0-014
Superseded by 91251-HC5-005
|
$20.40 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (38X64X11) (KOYO)
91251-HC5-005
|
$20.40 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (35X49X6) (ARAI)
91252-HA0-003
|
$17.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (35X49X6) (NOK)
91252-HA0-004
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (35X54X6) (NOK)
91253-HA0-003
Superseded by 91253-HA0-004
|
$11.28 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (35X54X6) (NOK)
91253-HA0-004
|
$11.28 | ||
|
Unavailable |
|||
|
#23
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BULK HOSE, FUEL (3.5X3000) (3.5X900)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6007)
96100-60073-00
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
