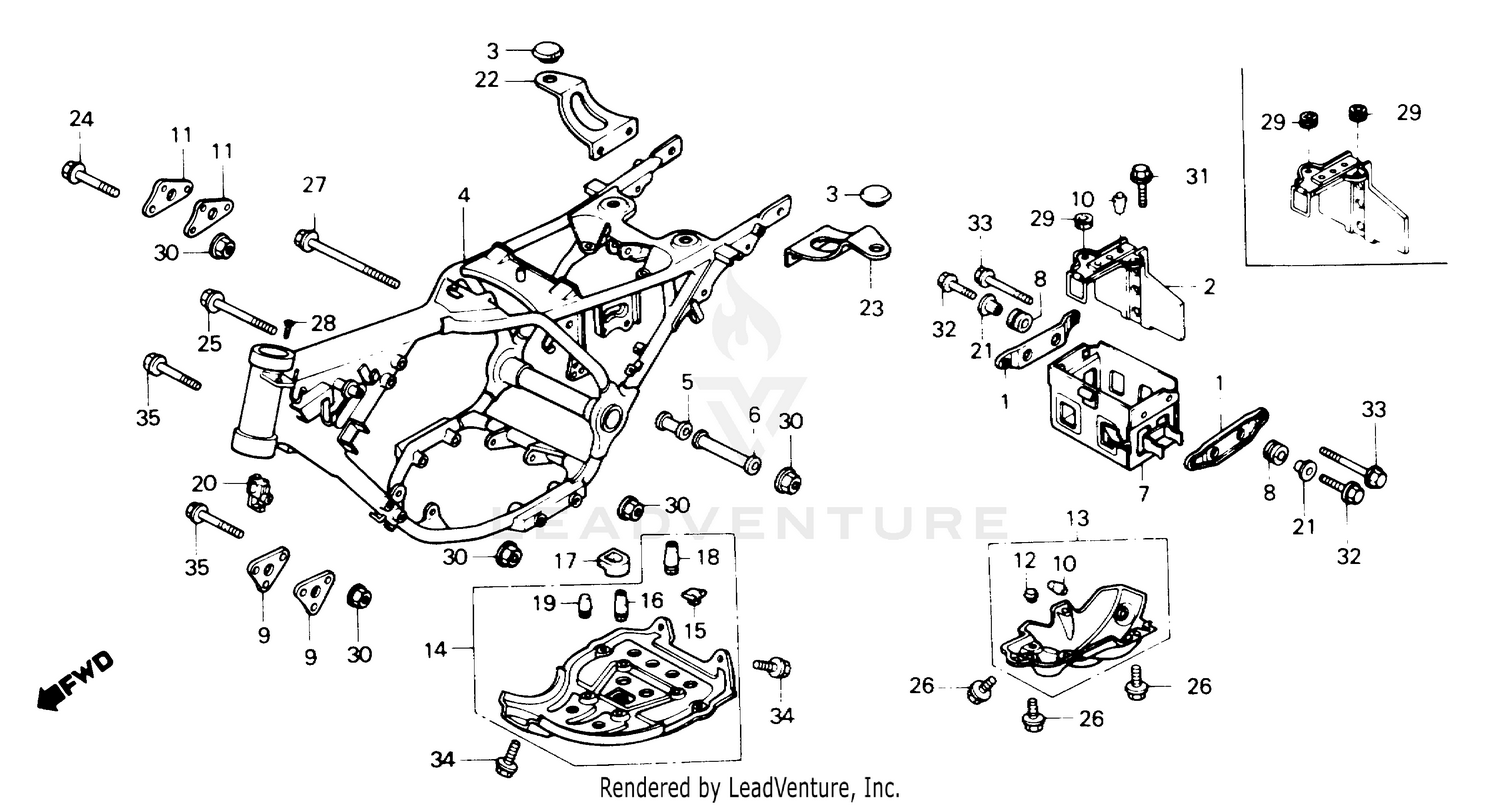

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, BATTERY BOX
31512-HA6-000
|
$10.40 | ||
|
Unavailable |
|||
|
#2
HOLDER, BATTERY BOX (NOT AVAILABLE)
31513-HA6-680
|
$17.45 | ||
|
Unavailable |
|||
|
#3
GROMMET, WASHER HOSE
91617-SB6-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME
50100-HA6-771
|
$2,030.23 | ||
|
Unavailable |
|||
|
#5
COLLAR, R. ENGINE SETTING (NOT AVAILABLE)
50251-HA6-000
|
$9.40 | ||
|
Unavailable |
|||
|
#6
COLLAR, L. ENGINE SETTING
50252-HA6-000
|
$17.52 | ||
|
Unavailable |
|||
|
#7
BOX, BATTERY (NOT AVAILABLE)
50325-HA6-020
|
$63.89 | ||
|
Unavailable |
|||
|
#8
RUBBER, BATTERY BOX SETTING
50329-HA6-000
|
$3.38 | ||
|
Unavailable |
|||
|
#9
HANGER, FR. ENGINE
50351-HA6-770
|
$11.65 | ||
|
Unavailable |
|||
|
#10
RUBBER A, STOPPER
50352-428-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
HANGER, ENGINE (UPPER) (NOT AVAILABLE)
50353-HA0-770
|
$12.64 | ||
|
Unavailable |
|||
|
#12
RUBBER B, STOPPER
50354-428-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, SKID
50355-HA0-000
|
$56.93 | ||
|
Unavailable |
|||
|
#14
GUARD, ENGINE (NOT AVAILABLE)
50360-HA0-000
|
$71.06 | ||
|
Unavailable |
|||
|
#15
RUBBER A, STOPPER (NOT AVAILABLE)
50361-HA0-000
|
$3.03 | ||
|
Unavailable |
|||
|
#16
RUBBER D, STOPPER
50361-961-000
|
$4.69 | ||
|
Unavailable |
|||
|
#17
RUBBER, DRAIN STOPPER (NOT AVAILABLE)
50362-HA0-000
|
$10.08 | ||
|
Unavailable |
|||
|
#18
RUBBER B, STOPPER (NOT AVAILABLE)
50363-HA0-000
|
$3.10 | ||
|
Unavailable |
|||
|
#19
RUBBER C, STOPPER (NOT AVAILABLE)
50364-HA0-000
|
$3.10 | ||
|
Unavailable |
|||
|
#21
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, R. RR. FENDER (NOT AVAILABLE)
80121-HA6-020
|
$27.24 | ||
|
Unavailable |
|||
|
#23
STAY, L. RR. FENDER (NOT AVAILABLE)
80122-HA6-020
|
$27.24 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (10X70) (NOT AVAILABLE)
90015-HA0-000
Superseded by 96400-10070-00
|
$2.23 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (10X70)
96400-10070-00
|
$2.23 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (10X110)
90115-HA0-770
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X10)
90116-965-000
|
$4.49 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (10X235) (NOT AVAILABLE)
90152-HA6-000
Superseded by 90111-MG8-000
|
$13.45 | ||
|
Unavailable |
|||
|
#29
RUBBER, CONTROL BOX
90852-898-000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X20)
95700-06020-08
Superseded by 95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X40)
95700-06040-08
Superseded by 95701-06040-08
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X40)
95701-06040-08
|
$1.91 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (8X16)
95700-08016-00
Superseded by 95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (10X80)
96400-10080-00
|
$2.26 | ||
|
Unavailable |
|||
