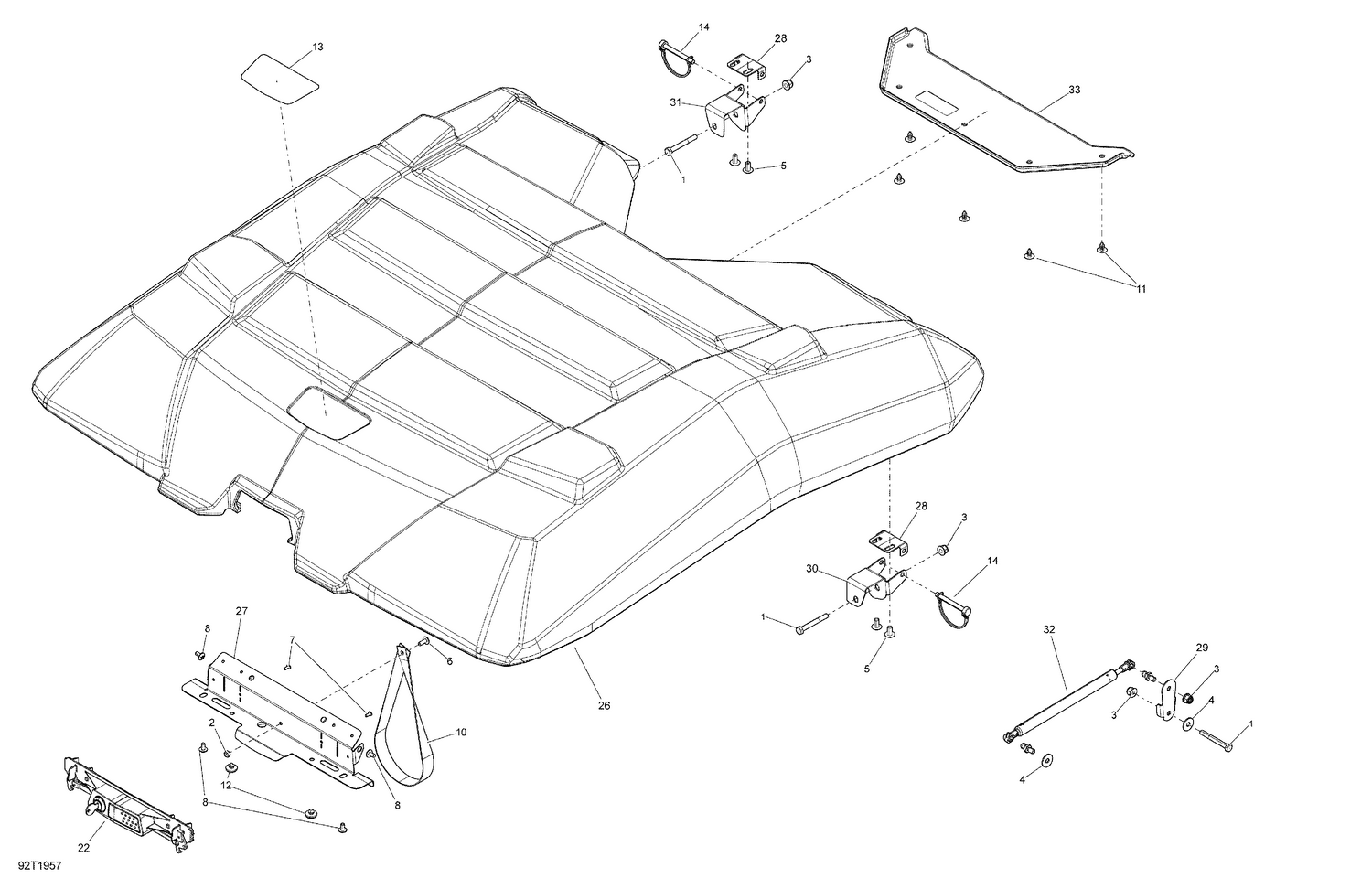

09- Option Hard Top Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Screw M8 x 65
207086544
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Torx Truss Screw M8 X 16
250000198
Superseded by 250000746
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer Head Hexagonal Screw K40 X 10
250000666
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
Torx Screw M6 X 12
250000804
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDING STRAP - Call your local BRP dealership
293850119
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Black, Dart
414644300
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
Plug
605452114
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
Warning Label
704904235
|
|||
|
Unavailable |
|||
|
#14
Pin Onto The Shaft
706001602
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Latch Assembly
708200249
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
LARGE HARD TOP - Call your local BRP dealership
708301282
|
$769.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK HOUSING COVER - Call your local BRP dealership
708301283
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Upper Hinge
708301284
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
Side Bracket Shock
708301287
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
LH LOWER HINGE PLATE CORNER - Call your local BRP dealership
708301340
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RH LOWER HINGE PLATE CORNER - Call your local BRP dealership
708301342
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Gas Shock
708301346
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
FRONT ADAPTER PLATE - Call your local BRP dealership
708301509
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
