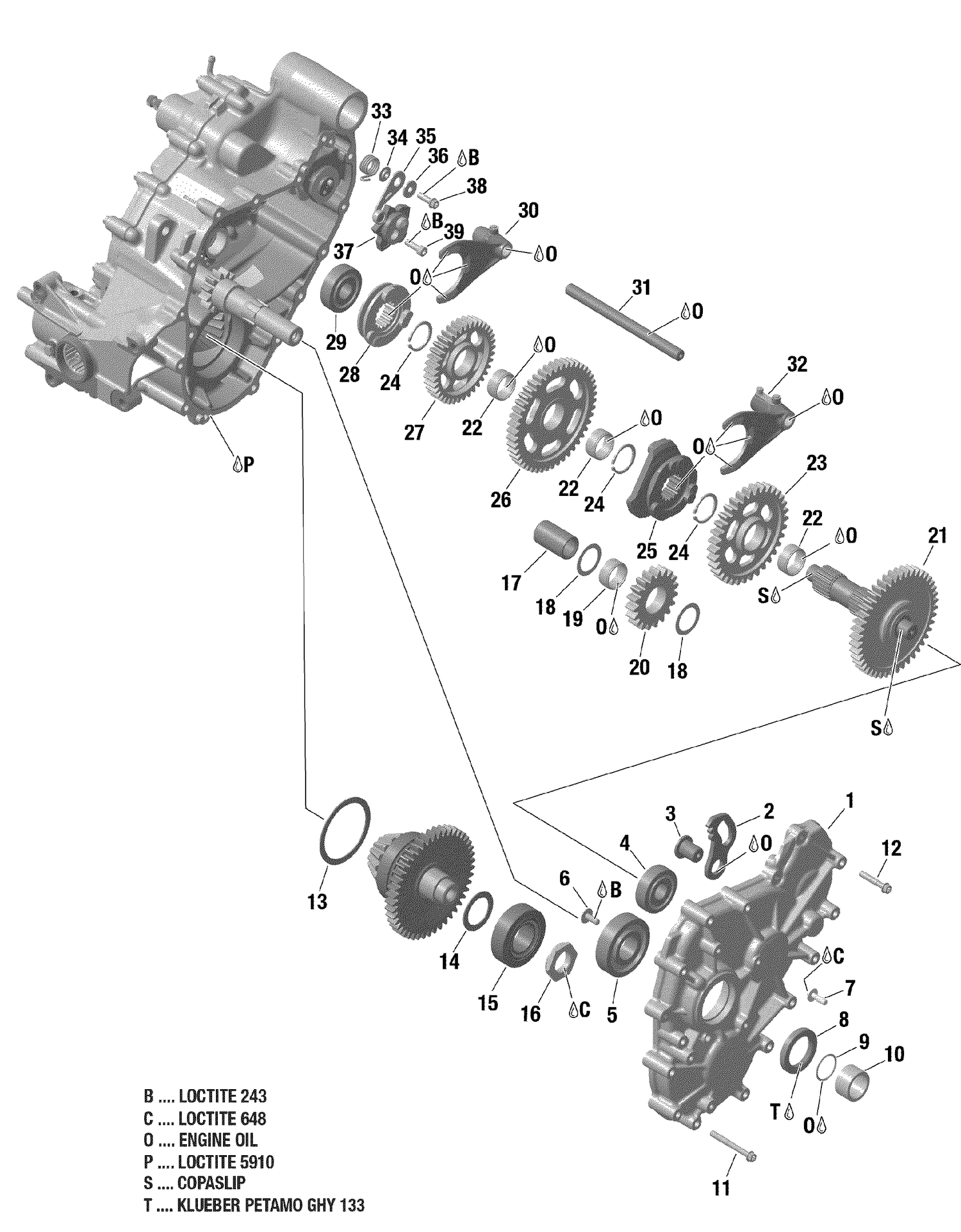

05- Gear Box 2 - 420686563 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1>8
Not Available As Spare Part - Gear Housing
|
|||
|
Unavailable |
|||
|
#2
Parking Lock Lever
420257654
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Collar Sleeve
420647123
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ball Bearing
420932816
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ball Bearing
420932823
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Distance Screw M6
420441431
Superseded by 420441433
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-Ring
420631610
Superseded by 420631612
|
$4.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Distance Ring
420647253
Superseded by 420647267
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 55
420440702
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
Not Available As Spare Part - Shim Set
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Part - Shim Set
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Roller Bearing
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Part - Hex Nut
|
|||
|
Unavailable |
|||
|
#17
Intermediate Gear Shaft
420620688
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Thrust Washer
420427011
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
Needle Bearing
420932930
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Intermediate Gear, 19 Teeth
420434588
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Main Shaft
420637047
Superseded by 420637044
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Needle Bearing
420632070
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Gear Pinion, 34 Teeth
420434873
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Retaining Ring
420845772
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
Shifting Sleeve
420257953
Superseded by 420257954
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Gear Pinion, 46 Teeth
420434865
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Gear Pinion, 36 Teeth
420434857
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Shifting Sleeve
420257944
Superseded by 420257945
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Ball Bearing
420932816
|
$42.49 | ||
|
Unavailable |
|||
|
#30
Shift Fork
420657365
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Pivot
420258388
Superseded by 420258394
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Shift Fork Ass'y
420258515
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#33>37
Index Lever
420248532
Superseded by 420248533
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Not Available As Spare Part - Index Spring
|
|||
|
Unavailable |
|||
|
#34
Not Available As Spare Part - Step Ring
|
|||
|
Unavailable |
|||
|
#35
Not Available As Spare Part - Index Lever
|
|||
|
Unavailable |
|||
|
#36
Not Available As Spare Part - Washer
|
|||
|
Unavailable |
|||
|
#37
Not Available As Spare Part - Index Washer
|
|||
|
Unavailable |
|||
|
#38
Torx Flange Screw M6 X 20
420441835
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
Allen Screw M6 X 20
420241939
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
