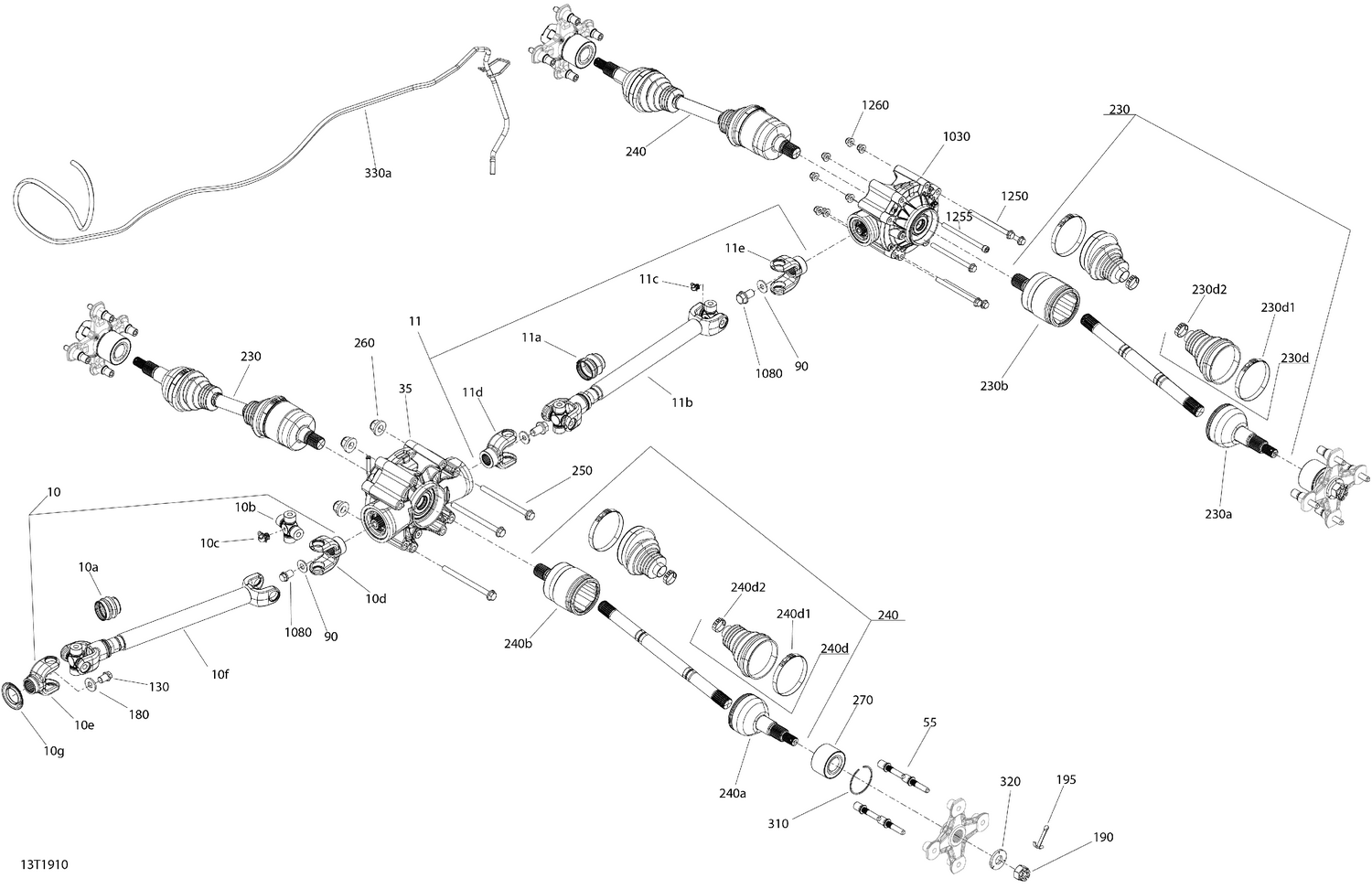

08- Rear Drive 6x6 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Shaft Ass'y Kit
703500992
|
$412.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Shaft Ass'y Kit
703500989
|
$206.49 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Universal Joint Ass'y
703500846
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Grease Fitting
715900295
|
$5.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10d
Yoke
715900500
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10e
Joint
715900436
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10f
Spline Yoke
715900106
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#10g
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
Shaft Ass'y Kit
703500987
|
$412.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Shaft Ass'y Kit
703501084
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#11a
Rubber Boot
715900118
|
$14.30 | ||
|
Unavailable |
|||
|
#11b
Universal Joint
715900326
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11c
Grease Fitting
715900295
|
$5.24 | ||
|
Unavailable |
|||
|
#11d
Yoke
715900438
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11d
Yoke
715900500
|
$24.99 | ||
|
Unavailable |
|||
|
#11e
Yoke
715900500
|
$24.99 | ||
|
Unavailable |
|||
|
#11e
Yoke
715900499
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11f
Protector
705501123
|
$7.55 | ||
|
Unavailable |
|||
|
#15
Protector
705501123
|
$7.55 | ||
|
Unavailable |
|||
|
#35
Final Drive Unit
705502230
|
|||
|
Available to order. Add to View Price |
|||
|
#35
Middle Drive Unit Ass'y
705502968
Superseded by 705503088
|
$1,324.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
Wheel Stud
250300643
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Hex Flange Screw M12 X 16
250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Conical Spring Washer M12
250200005
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Castellated Nut M18
250100047
Superseded by 232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#195
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#230
RH CV Joint
705502711
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#230a
JOINT_CV EXT - Call your local BRP dealership
705501776
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#230b
PLUNGING JOINT - Call your local BRP dealership
705501780
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#230c
Circlip
705501781
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#230d
Boot Kit
705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#230d1
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#230d2
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
LH CV Joint
705502710
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#240a
JOINT_CV EXT - Call your local BRP dealership
705501776
|
$259.49 | ||
|
Unavailable |
|||
|
#240b
PLUNGING JOINT - Call your local BRP dealership
705501780
|
$114.99 | ||
|
Unavailable |
|||
|
#240c
Circlip
705501781
|
$6.50 | ||
|
Unavailable |
|||
|
#240d
Boot Kit
705501864
|
$42.49 | ||
|
Unavailable |
|||
|
#240d1
Oetiker Clamp, 82.1 mm
715900241
|
$10.99 | ||
|
Unavailable |
|||
|
#240d2
Oetiker Clamp, 27.3 mm
715900242
|
$10.99 | ||
|
Unavailable |
|||
|
#250
Hex. Flange Screw M10 X 135
250001041
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Ball Bearing
293350118
Superseded by 293350150
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#320
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#330a
Polyurethane Hose
293830193
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#1030
Rear Drive Unit Ass'y
705502370
|
$969.99 | ||
|
Available to order. Add to View Price |
|||
|
#1080
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#1085
Hex. Flange Screw M10 X 16 S.GRIP
250000615
Superseded by 250001044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1095
Flat Washer M10
250200014
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1245
Hex. Flange Screw M10x145
705502741
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#1250
Hex. Flange Screw M10 X 135
250000508
Superseded by 250001041
|
$5.69 | ||
|
Unavailable |
|||
|
#1255
Socket Screw HD.din.912
231003587
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#1260
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#1265
Elastic Stop Nut M10
232500416
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
