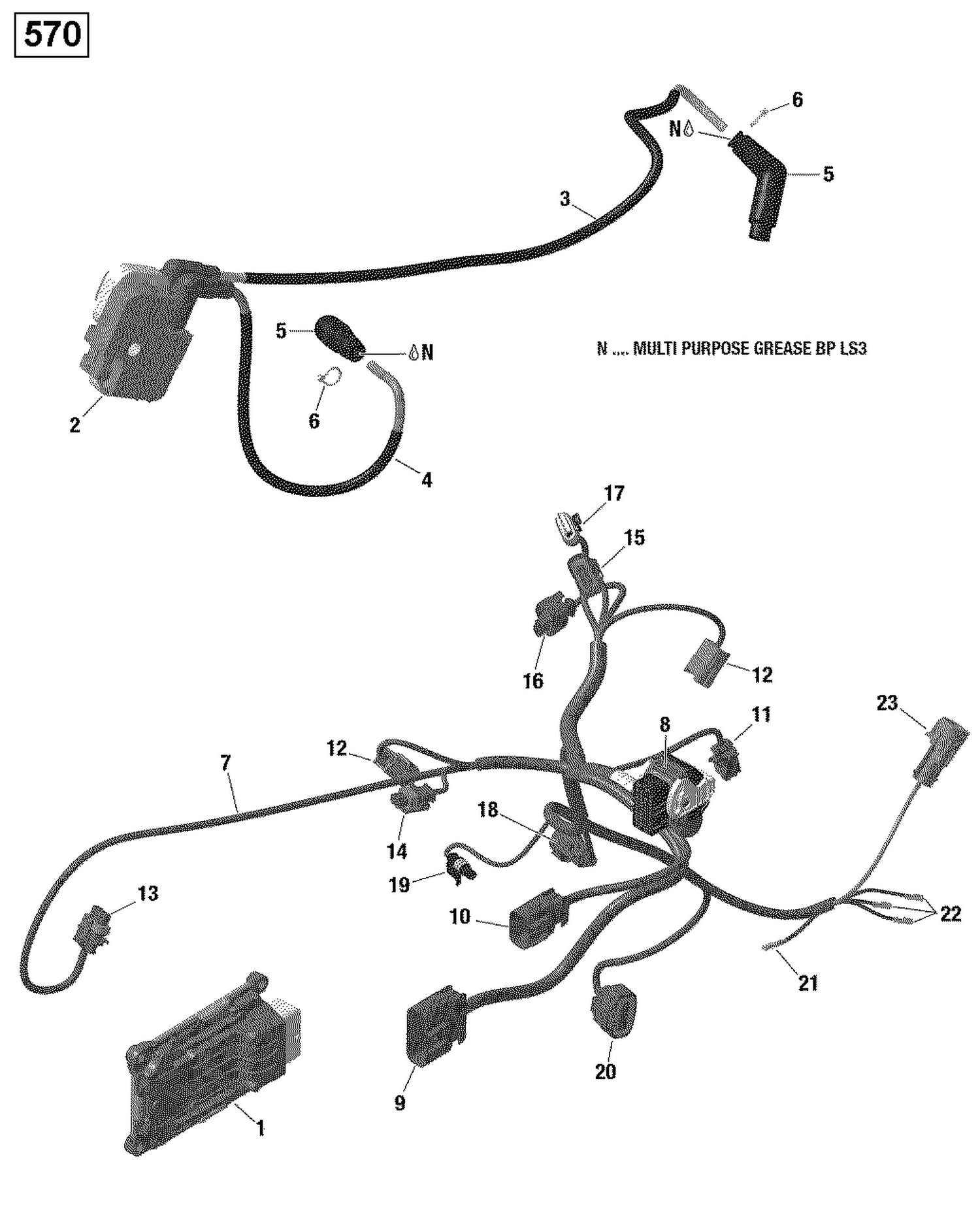

10- Engine Harness And Electronic Module - 570 Efi (outlander L Xmr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ECM, Engine Control Module
420666976
|
$1,229.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Not Available As Spare Part - ECM, Engine Control Module
|
|||
|
Unavailable |
|||
|
#2>2a
Ignition Coil
278001546
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#2a
Housing
710000568
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Spark Plug Cable, 790 mm, Rear
420665330
Superseded by 420665333
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spark Plug Cable, 790 mm, Rear
420664300
Superseded by 420665333
|
$61.99 | ||
|
Unavailable |
|||
|
#5
Spark Plug Connector
420265248
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Tie Rap
420866710
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#7>23
Engine Wiring Harness
420264791
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Not Available As Spare Part - Housing
|
|||
|
Unavailable |
|||
|
#9
Housing
710001227
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
Housing
710001927
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Not Available As Spare Part - Connector
|
|||
|
Unavailable |
|||
|
#13
Male Housing, 3 Circuits
278000997
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Unavailable |
|||
|
#15
Housing Connector, 3 Circuits
278001829
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Male Connector
515176410
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Connector
|
|||
|
Unavailable |
|||
|
#18
Male Housing
278002378
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Male Housing, 1 Circuit
278001012
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Male Housing, 4 Circuits
710000329
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#21>21a
Female Terminal
278001009
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21a
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22>22a
Female Terminal
278001009
|
$3.29 | ||
|
Unavailable |
|||
|
#22a
Insulated Sheath
278001007
|
$3.69 | ||
|
Unavailable |
|||
|
#23
Not Available As Spare Part - Connector
|
|||
|
Unavailable |
|||
