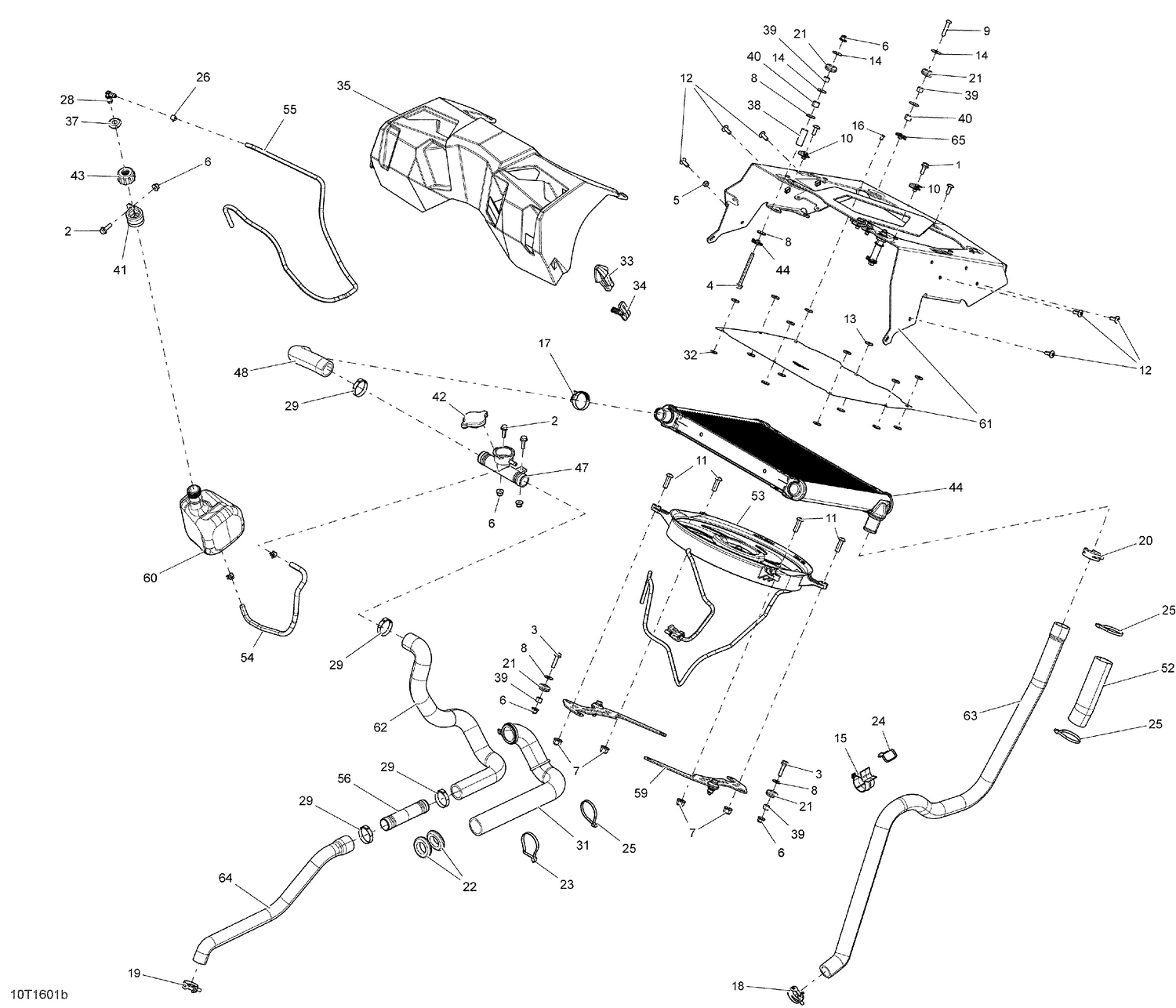

01- Cooling System - Xmr Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Screw M6 X 70
207667044
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Flat Washer M6, Stainless
234062600
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
Torx Screw M6 X 30
235563054
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Torx Screw M8 X 25, Scotch Grip
250000283
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rubber Washer 5 mm
250200024
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
Flat Washer
250200040
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Retainer
275500590
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
Rivet 3/16"
293150102
|
$0.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Norma Gear Clamp
293650098
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
Norma Spring Clamp
293650109
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Grommet
293720062
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
Tie Wrap 368 mm
293750008
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
Male Connector
414580700
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Washer
517124300
|
$0.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Black Latch Kit
860200239
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Panel Latch
517303981
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Protection Cover Kit
703100399
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Grommet
705003264
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#38
Bushing
705202499
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spacer
707000058
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Bushing
708001129
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Hose Anchor
709200036
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Cap
548872589
Superseded by 709200586
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#44
Radiator
709200286
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Filler Neck
709200422
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
Hose
709200426
Superseded by 709200891
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#52
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
Unavailable |
|||
|
#53
Fan Ass'y
709200567
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Was 415110000 Polyurethane Hose 5.2 mm
219704414
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Nipple Tube 1"
709200448
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
Aupport_Fan Ecoat
709200495
Superseded by 709201349
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Coolant Tank Ass'y
709200504
Superseded by 709200624
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
Deep Black, Radiator Support Kit
709200556
Superseded by 709201336
|
$360.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
Polyurethane Hose
709200559
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
Polyurethane Hose
709200560
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
Hose
709200561
Superseded by 709200896
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLIP NUT M6 X 1 - Call your local BRP dealership
715900148
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
