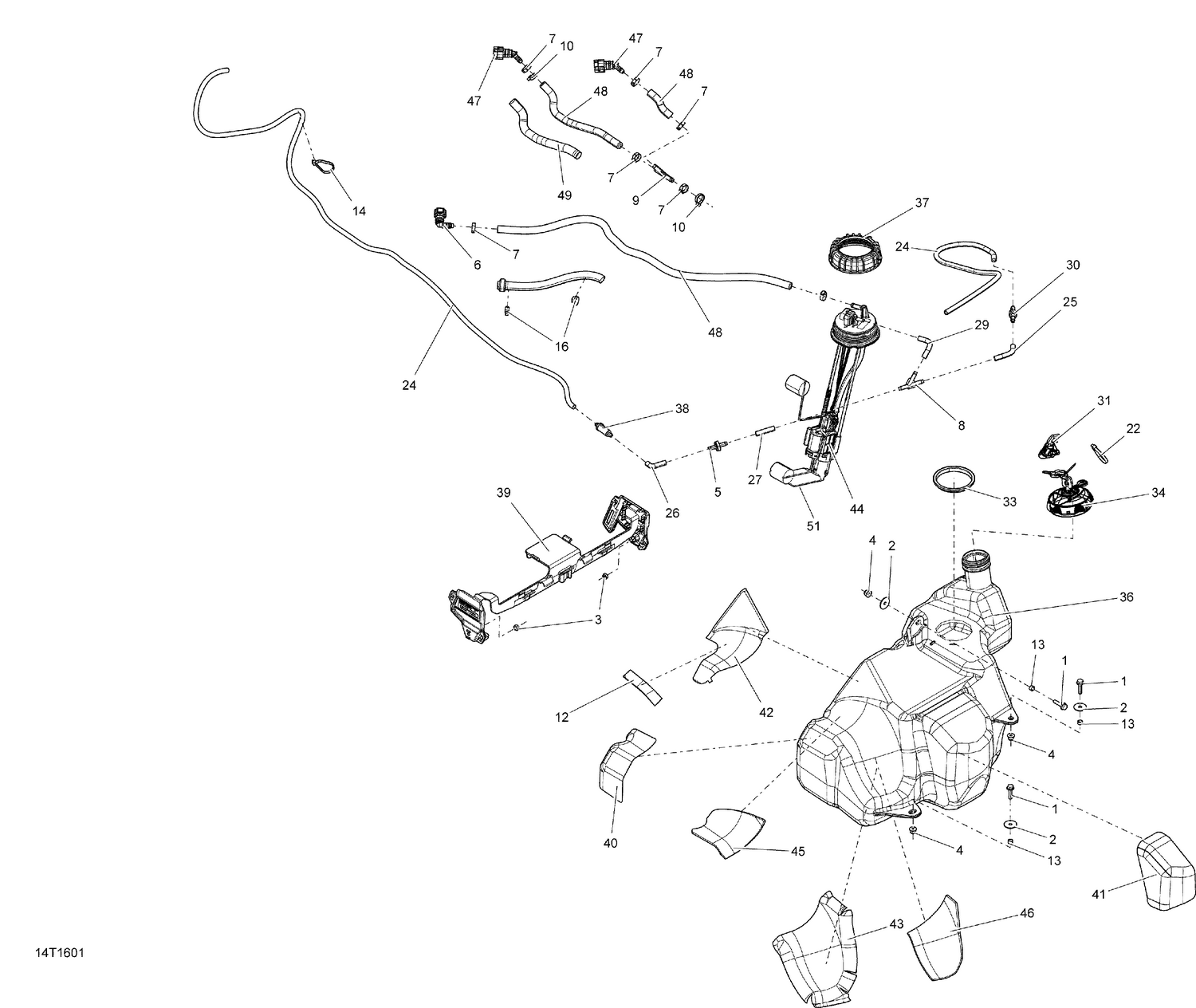

02- Fuel System - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Washer
224060251
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Quick Attach 90°
275500700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
Y-Fitting, 5/16''
293710136
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Rubber Pad
293830172
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bushing
293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Lock Device Kit
707001750
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Seal
709000208
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Fuel Tank Cap
513033025
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Lock Device Kit
707001750
|
$67.99 | ||
|
Unavailable |
|||
|
#34a
Padlock with Key
707000666
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Fuel Tank Ass'y
709000310
Superseded by 709000799
|
|||
|
Available to order. Add to View Price |
|||
|
#37
Fuel Pump Module Nut
709000328
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
Filter
709000330
|
$7.79 | ||
|
Unavailable |
|||
|
#39
Hose Support Ass'y
709000359
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#40
Heat Reflective Sheet
709000381
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Heat Reflective Sheet
709000382
Superseded by 709001071
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Heat Reflective Sheet
709000387
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#43
Heat Reflective Sheet
709000388
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#44
Fuel Pump
709000461
|
$340.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Quick Fitting 45° Ass'y
709000627
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Tube 25Mm 1000Mm Long
219704350
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Prefilter Fuel Pump Kit 86mm Long
715900322
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
