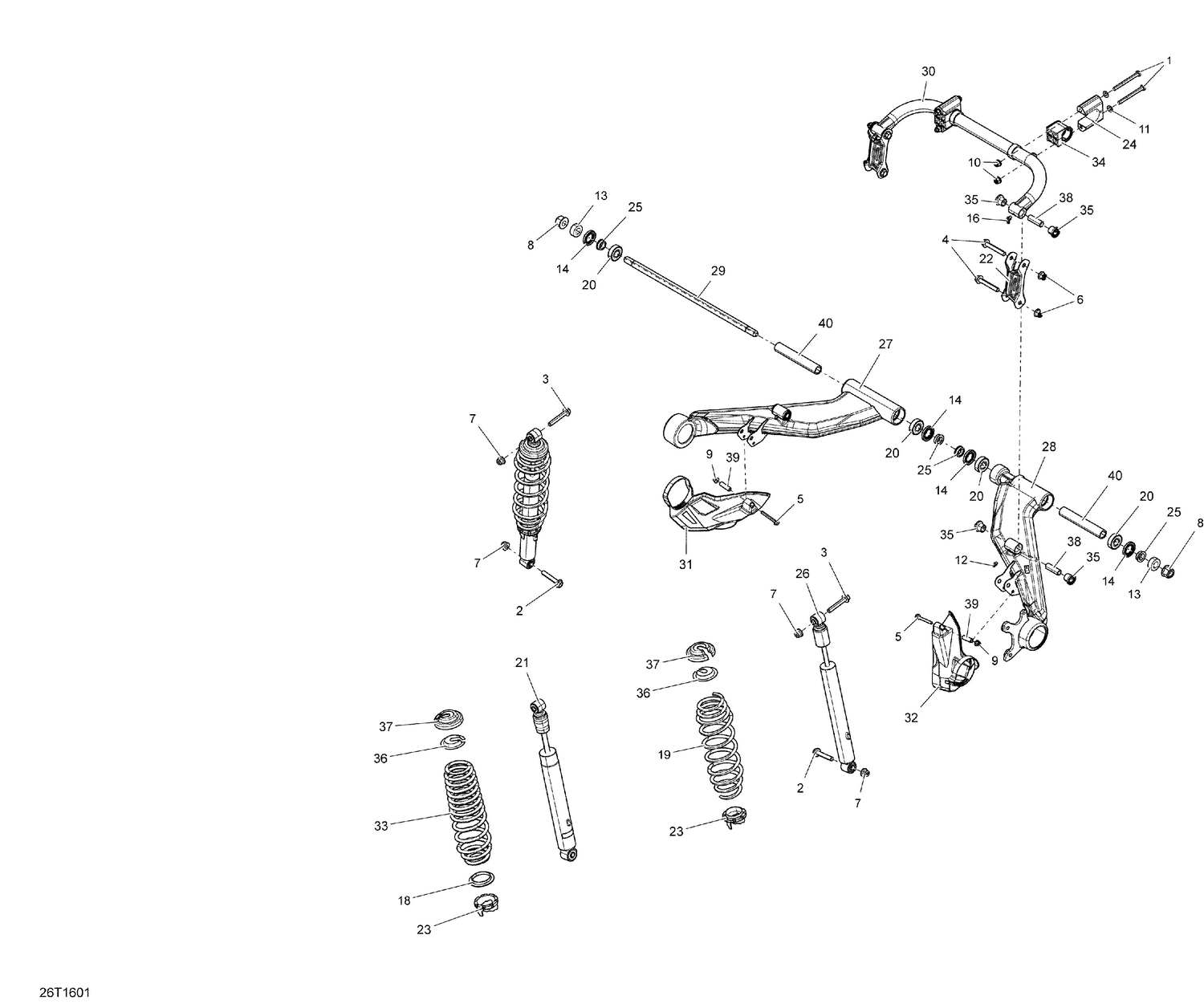

08- Rear Suspension - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Screw M8 X 85
207088587
Superseded by 250001035
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M10 X 55
207605546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M10 X 6
207606046
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Screw M10 X 65
207606536
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Flange Elastic Nut M16
233211466
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Flat Washer M8
234081430
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Grease Fitting
250000315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Flat Washer M17
250200112
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Seal
293200144
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Spring Guide
503187500
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Deep Black, Compression Spring
706000763
Superseded by 706004873
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Ball Bearing
706000826
Superseded by 293350145
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
Rear Shock
706000958
|
$185.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Sway Bar Linkage
706001020
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Adjuster Ring
706001033
Superseded by 706002356
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Adjustment Cam
505073625
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bushing Holder
706001099
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spacer
706001282
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Rear Shock
706001524
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Black, LH Rear Swing Arm
706001646
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Black, RH Rear Swing Arm
706001647
Superseded by 706004525
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Axial Pivot M16
706001664
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sway Bar
706001678
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
LH Protector
706001736
Superseded by 706002482
|
$15.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
RH Protector
706001737
Superseded by 706002483
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#33
Black Spring
706002192
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Deep Black, Compression Spring
706001577
Superseded by 548874840
|
$94.99 | ||
|
Unavailable |
|||
|
#33
Black Spring
706002243
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Stabilizer Bar Bushing
706002246
Superseded by 706004640
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#35
Bushing
706200181
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#36
Cap
706200785
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
Spring Stopper
706200881
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Sleeve
706201587
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#39
Bushing
707001376
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#40
Spacer
706002258
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
