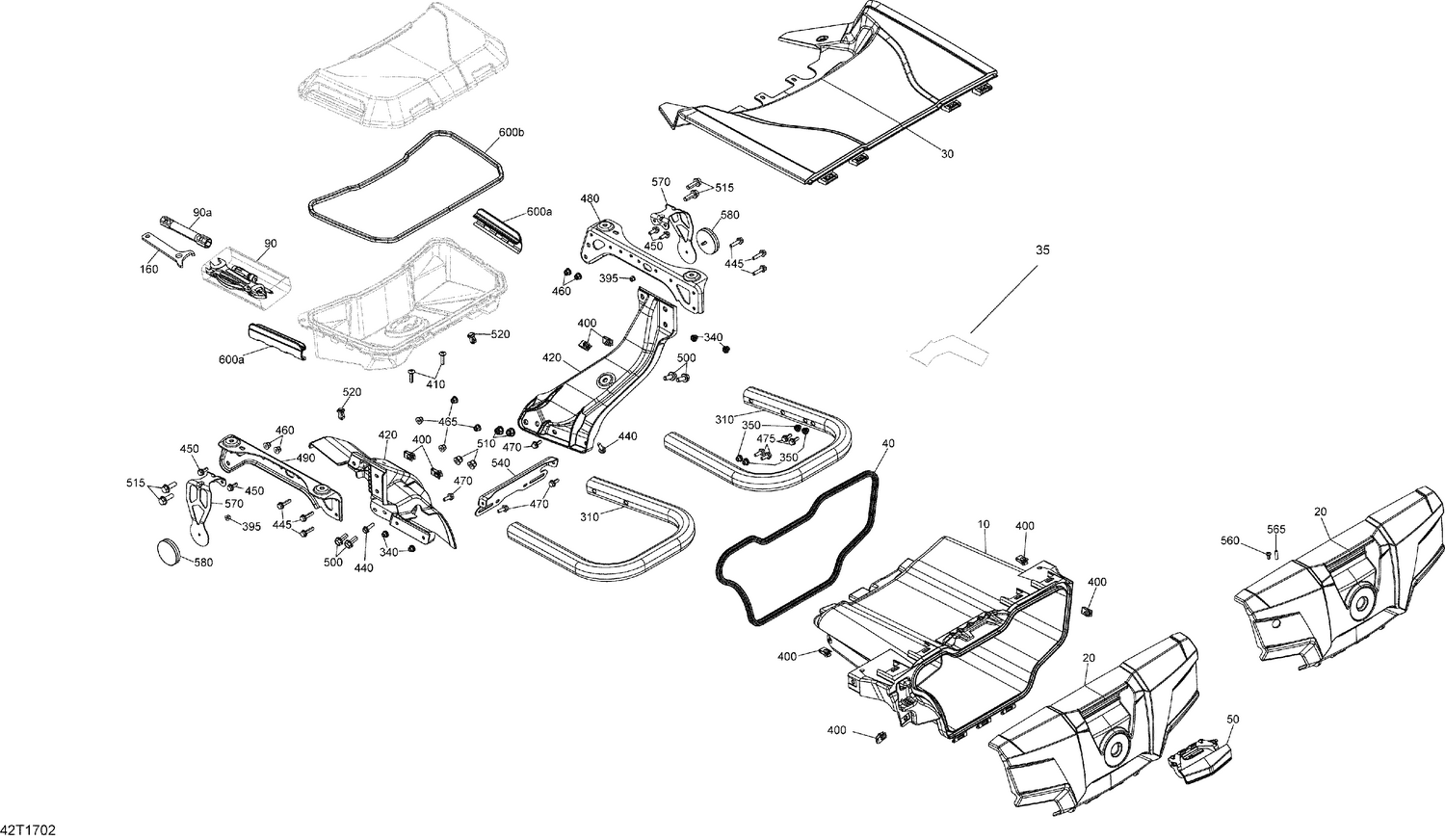

09- Rear Cargo Box - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Rear Storage Box
708300674
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rear Panel
708300150
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rear Panel
708300511
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rear Storage Box Cover
708301212
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rear Storage Box Cover
715002635
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rear Storage Box Cover
715002638
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rear Storage Box Cover
715004097
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rear Storage Box Cover
715004099
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Heat Shield
707002102
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Was 293200163 Neoprene Seal
219704369
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Handle Latch
708200272
Superseded by 708201250
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#90>90a
Tool Kit
704700168
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#90a
Socket Wrench 14/16MM
529000085
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#160
Adjustment Wrench
529000035
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Bumper Ass'y
715001564
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Bumper Ass'y
715002241
Superseded by 715005832
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Bumper Ass'y
715002242
Superseded by 715007915
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Bumper Ass'y
715002242
Superseded by 715007915
|
$46.49 | ||
|
Unavailable |
|||
|
#310
Black Rear Bumper Ass'y
715004101
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Black Rear Bumper Ass'y
715004103
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Black Rear Bumper Ass'y
715004104
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Black Rear Bumper Ass'y
715004104
|
$55.99 | ||
|
Unavailable |
|||
|
#340
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#350
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#395
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#410
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
LH Cargo Support
705006997
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#420
RH Cargo Support
705006998
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#440
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#445
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#450
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#460
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#465
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#470
Hex. Flange Screw M6 X 16, Scotch Grip
207561646
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#475
Hex. Flange Screw M6 X 16
207661634
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#480
LH Support
705004563
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#480
RH Support
705004564
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#510
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#515
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#520
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Plate Support
705004806
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Socket Head Screw M5 X 10
205951046
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#565
Socket Set Screw M5 X 20
206252044
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#570
Reflector Support
705202576
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#580
Red Reflector
705011221
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600>600b
Box Ass'y
708200408
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#600a
Clip
269501945
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#600b
Was 715900411 Neoprene Seal
219704452
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
