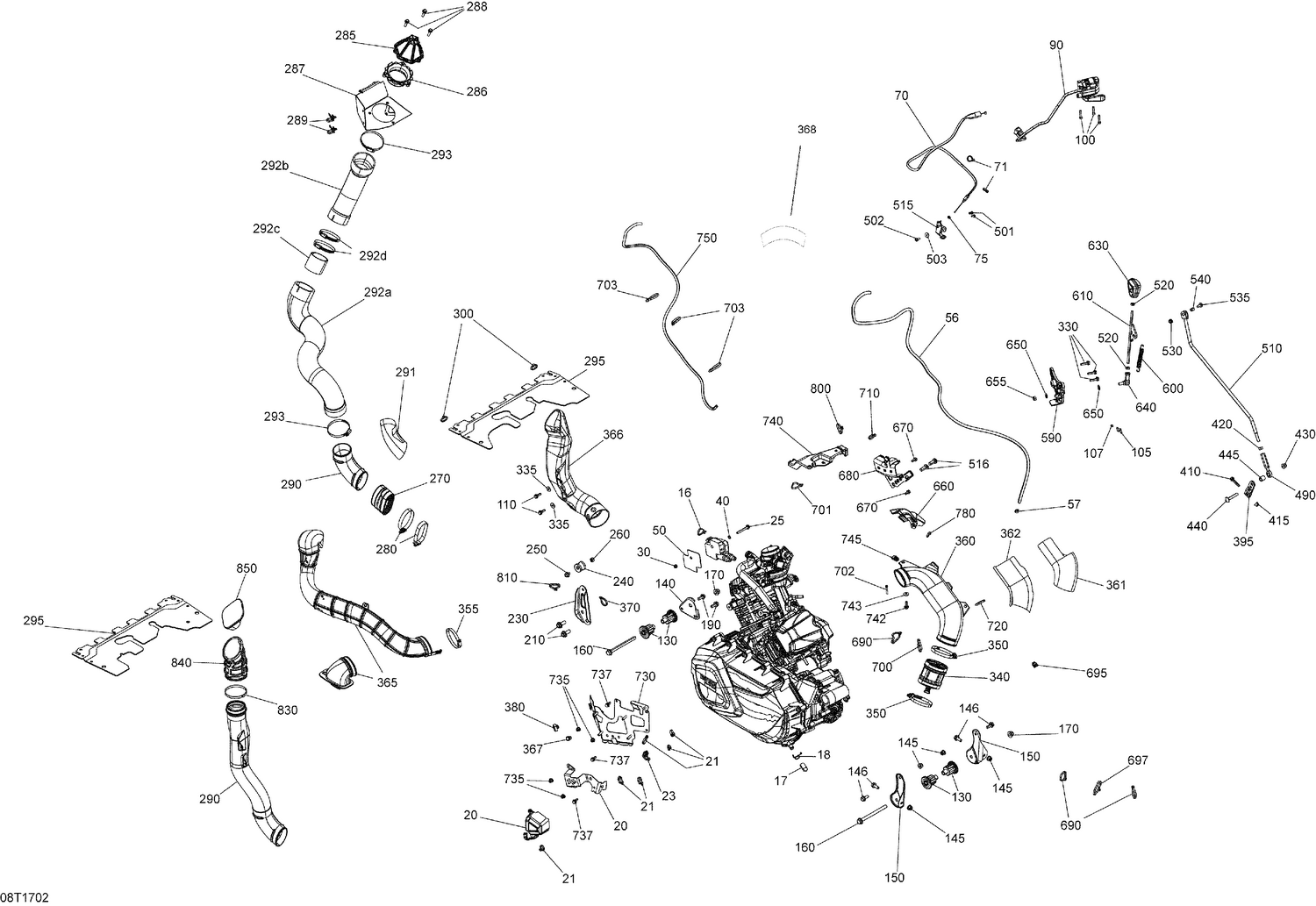

01- Engine And Engine Support - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#16
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Plug
707001185
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
Retainer Clip
707800506
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cover
707000945
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cover
707001563
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#23
Tie-Rap Clip
710002896
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
Insulator Pad
710000073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#56
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Clamp, Oetiker
293650195
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#70
Throttle Cable
707000955
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#71
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#75
Cable Guide
707000434
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Throttle Handle
707000595
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Socket Head Screw M5 X 25
205052588
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#105
SPEED LIMITER - Call your local BRP dealership
707000994
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#105
SPEED LIMITER - Call your local BRP dealership
707000994
|
$15.99 | ||
|
Unavailable |
|||
|
#105
SPEED LIMITER - Call your local BRP dealership
707001927
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#105
SPEED LIMITER - Call your local BRP dealership
707001927
|
$15.49 | ||
|
Unavailable |
|||
|
#107
TORX SCREW M4 X 8 - Call your local BRP dealership
250000332
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Screw M6 X 20, Scotch Grip
207562044
Superseded by 207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
Vibration Damper
707001169
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Engine Support
707000761
Superseded by 707003319
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Rear Engine Bracket
707001191
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
RH Rear Engine Bracket
707001192
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Rear Engine Support
707001193
Superseded by 707003325
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
RH Rear Engine Bracket
707001194
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Rear Engine Bracket
707001191
|
$10.99 | ||
|
Unavailable |
|||
|
#150
RH Rear Engine Bracket
707001192
|
$10.99 | ||
|
Unavailable |
|||
|
#160
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Screw M10 X 25
207602544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#230
Upper Engine Support
707000781
Superseded by 707003326
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#230
Upper Engine Bracket
707001256
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#240
Rubber Isolator
707000949
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
Flange Screw M8 x 10, Scotch Grip
207581046
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Flexibale Adaptor
707001467
Superseded by 707002585
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#285
Filter CVT
707001130
|
|||
|
Available to order. Add to View Price |
|||
|
#285
Filter CVT
707001130
|
|||
|
Unavailable |
|||
|
#285
Filter CVT
707001130
|
|||
|
Unavailable |
|||
|
#286
CVT Filter Base
707001171
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#286
CVT Filter Base
707001171
|
$8.59 | ||
|
Unavailable |
|||
|
#286
CVT Filter Base
707001171
|
$8.59 | ||
|
Unavailable |
|||
|
#287
CVT Filter Support
707001203
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#288
Hex. Flange Screw M6 X 25
207562544
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#289
Tie-Rap 173 mm
293750009
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#290
CVT Air Inlet
707001087
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
CVT Air Inlet
707001163
Superseded by 707002067
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#291
Heat Shield
707001654
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#292a
CVT Air Inlet
707001301
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#292b
CVT Air Inlet
707001302
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#292c
Tube
707001263
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#292d
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#293
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#295
Upper Water Deflector
707001124
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#295
Deflector
707001129
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#330
Hex. Flange Screw M6 X 25
207562544
|
$1.69 | ||
|
Unavailable |
|||
|
#335
Flat Washer M6, Stainless
234062600
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#340
CVT Air Outlet Adaptor
707001168
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Norma Gear Clamp
293650118
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#355
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#360
Air Outlet
706600019
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#361
Heat Shield
707001205
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#362
Heat Shield
707001206
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#365
CVT Cooling Duct Out
706600024
Superseded by 706600400
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#365
Air Outlet
707001496
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#366
Air Outlet
707001497
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#367
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#368
Heat Shield
707002092
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#370
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
Unavailable |
|||
|
#370
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#380
Rubber Stopper
708000506
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#395
Lever
707000911
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#415
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#420
Hex. Nut M8, LH Threads
250100144
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Carriage Bolt M8 X 30
207783044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#440
Carriage Bolt M8 X 50
207785044
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#445
Bushing
293900106
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#490
Ball Joint Ass'y
707000966
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Socket Head Screw M5 X 10
205951046
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#502
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#503
Washer
391301600
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#510
Shifter Rod
707001015
Superseded by 707002068
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Shifter Rod
707001564
Superseded by 707002085
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#515
Fixing Plate
707001042
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#516
Screw Socket M10 X 25
205402556
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#520
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#530
Hex. Flange Nut M6
233161414
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#535
Torx Screw M6 X 20, Scotch Grip
250000446
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#540
Bushing
293900019
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#590
Lever Support
707000971
Superseded by 707003054
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600
Spring
707000577
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Shift Arm
707000840
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#610
Shift Arm
707001003
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#630
Lever Trim
707000965
Superseded by 707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#640
RH Ball Joint
707001959
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#650
Washer
506151252
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#655
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
Unavailable |
|||
|
#660
Cover OPS
707000410
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#670
Hex. Flange Screw M6 X 12
210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#680
Cable Support
707001955
Superseded by 707003053
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#690
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#695
Tie-Rap Clip
710002896
|
$4.39 | ||
|
Unavailable |
|||
|
#697
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#700
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#701
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#702
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#703
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#710
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#720
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
Unavailable |
|||
|
#730
Welded Support
707001498
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#735
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#737
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#740
Air Outlet Support
707001262
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#742
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#743
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#745
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#750
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Unavailable |
|||
|
#780
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#800
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#810
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#830
Crimp Clamp
293650240
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#840
CVT Inlet
707001864
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#850
CVT Filter
707001786
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
