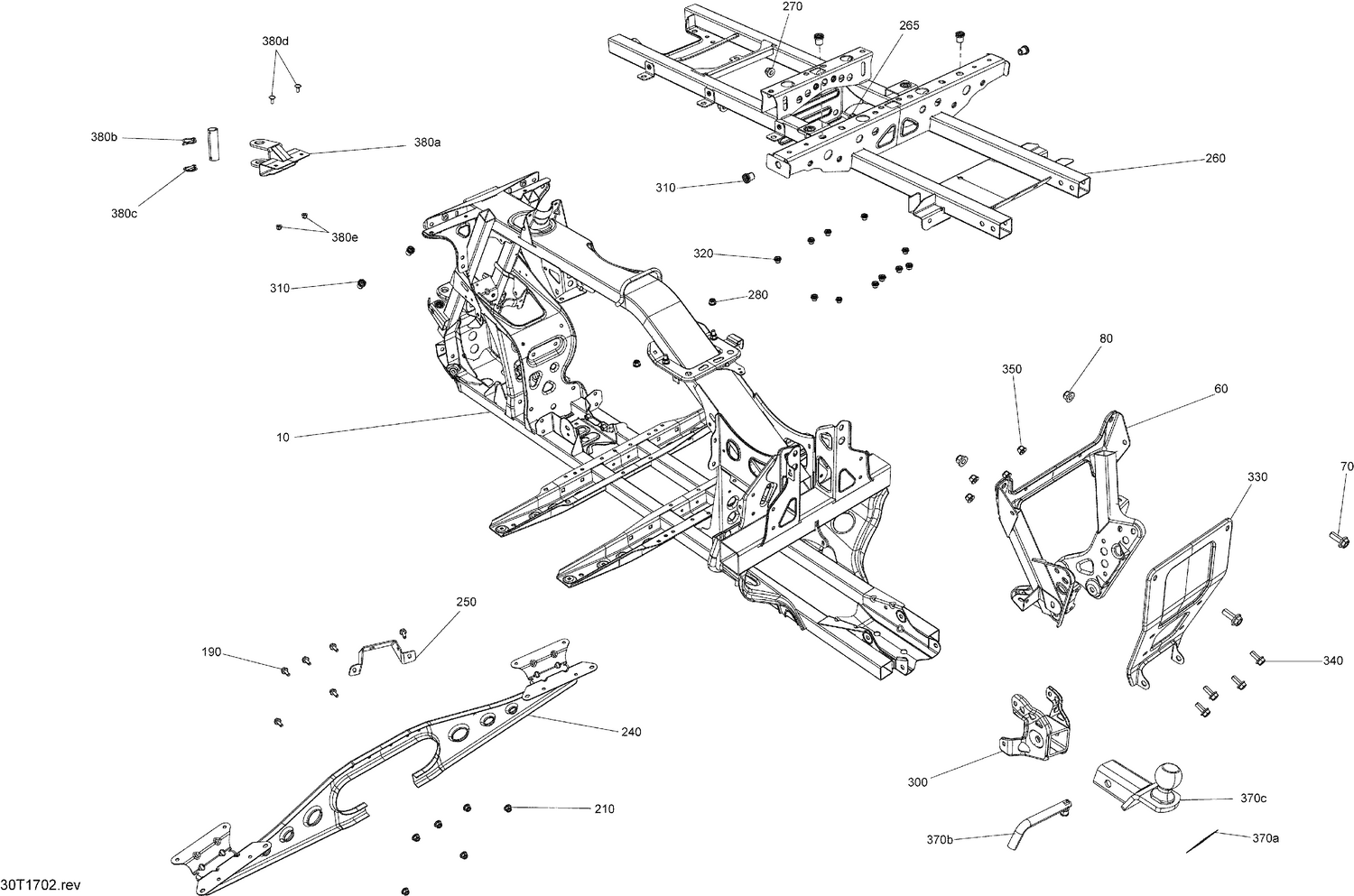

09- Frame - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#250
Master Cylinder Bracket
705203874
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#260
Chassis Extension
705204075
Superseded by 705210821
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Chassis Extension
705204077
Superseded by 705210822
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#265
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#270
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Trailer Hitch
705203294
Superseded by 715005186
|
$128.49 | ||
|
Unavailable |
|||
|
#310
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#320
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#330
Rear Support
705203301
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Rear Support
705203301
|
$43.99 | ||
|
Unavailable |
|||
|
#340
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#370>370b
Trailer Hitch Kit
705205304
Superseded by 705210328
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#370a
Towing Capacity Label
704902700
Superseded by 704908748
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#370b
Hitch Pin
705204490
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#370>370c
REAR HITCH KIT - Call your local BRP dealership
705205995
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#370a
WARNING LABEL - Call your local BRP dealership
704902939
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#370b
Hitch Pin
705204490
|
$52.99 | ||
|
Unavailable |
|||
|
#370c
BALL 50MM - Call your local BRP dealership
705202391
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#380a
Front Coupling Device
705204452
|
|||
|
Unavailable |
|||
|
#380a
Front Coupling Device
705205025
|
|||
|
Unavailable |
|||
|
#380b
Pin
605456511
|
|||
|
Unavailable |
|||
|
#380c
Pin
605456518
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#380d
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#380e
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#10
Black Frame
705205310
Superseded by 705206365
|
$1,049.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Black Frame
705205312
Superseded by 705206363
|
$1,039.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Rear Pillar
705203387
Superseded by 705210818
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Unavailable |
|||
|
#80
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#190
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Footrest Support
705202947
Superseded by 705210817
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
