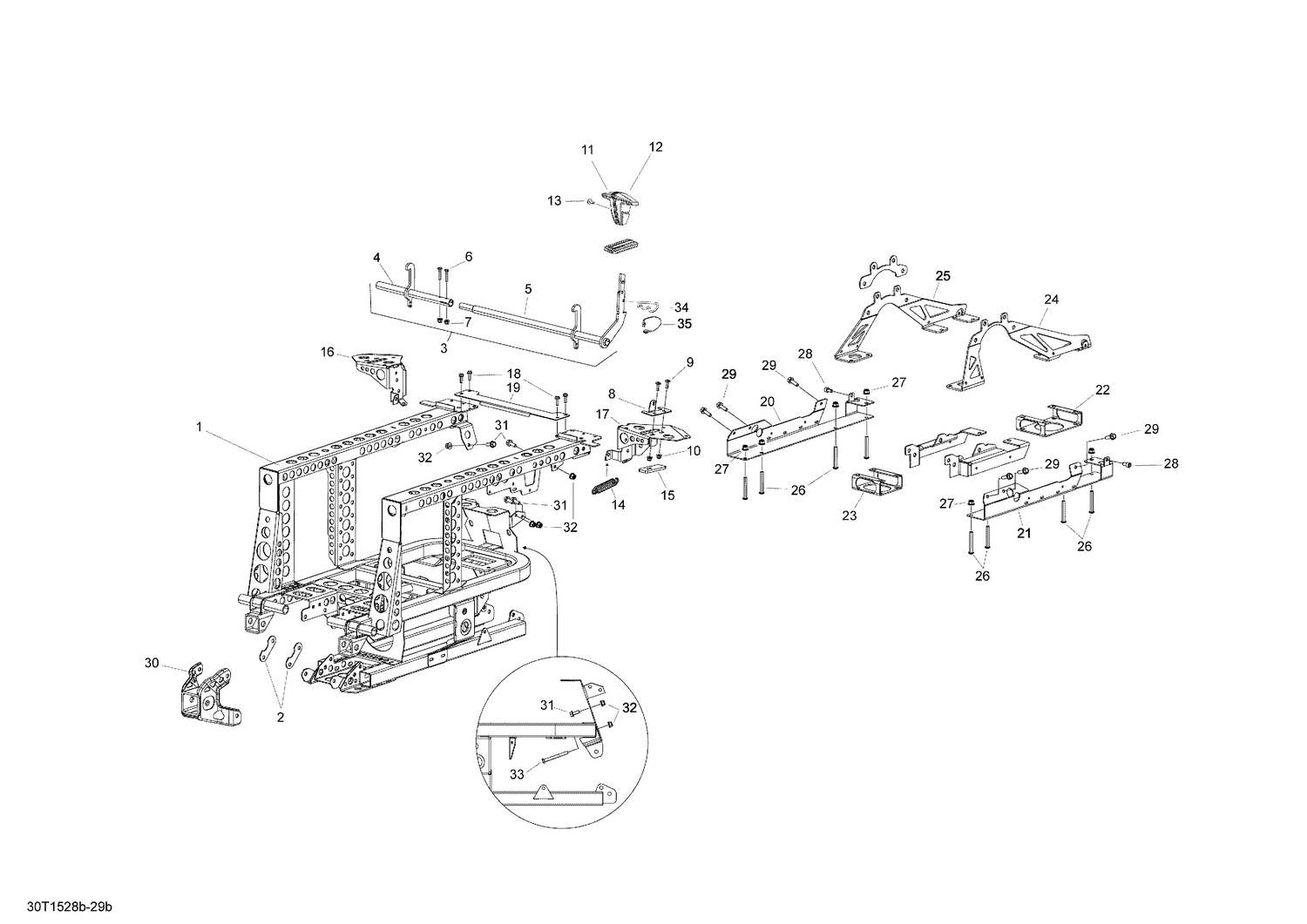

09- Frame _30t1528b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear Frame Painted
705204221
|
$1,039.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support Plate
705203564
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Not Available As Spare Part - Tilt Mechanism
|
|||
|
Unavailable |
|||
|
#4
LH TUBE WELDED - Call your local BRP dealership
705203669
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RH Tube
705203670
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Screw M6 X 30
207063044
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Lever Support
705203834
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Torx Screw M6 X 20
250000128
Superseded by 250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#11
Left Half Knob
705008420
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Right Half Knob
705008048
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Not Available As Spare Part - SCREW
|
|||
|
Unavailable |
|||
|
#14
Spring
415107100
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Rubber Collar
708301280
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LH Rear Fender Support
705203611
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RH Rear Fender Support
705203612
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex. Flange Screw M6 X 20, Scotch Grip
250000331
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
FILLER PLATE - Call your local BRP dealership
705203954
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LH Lower Beam Reinforcement
705203724
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RH Lower Beam Reinforcement
705203725
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Front Support Plate
705203726
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Rear Support Plate
705203727
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LH Differential Support Reinforcement
705203728
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RH Differential Support Reinforcement
705203729
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Torx Screw M8 X 60, Scotch Grip
250000383
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Forming Screw HD.DIN.7500E
250000678
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
Hex Forming Screw DIN.7500D
250000376
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
Trailer Hitch
715002812
Superseded by 715006155
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#33
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
Cotter Spring
505073670
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#35
Retainer Cable
293750069
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
