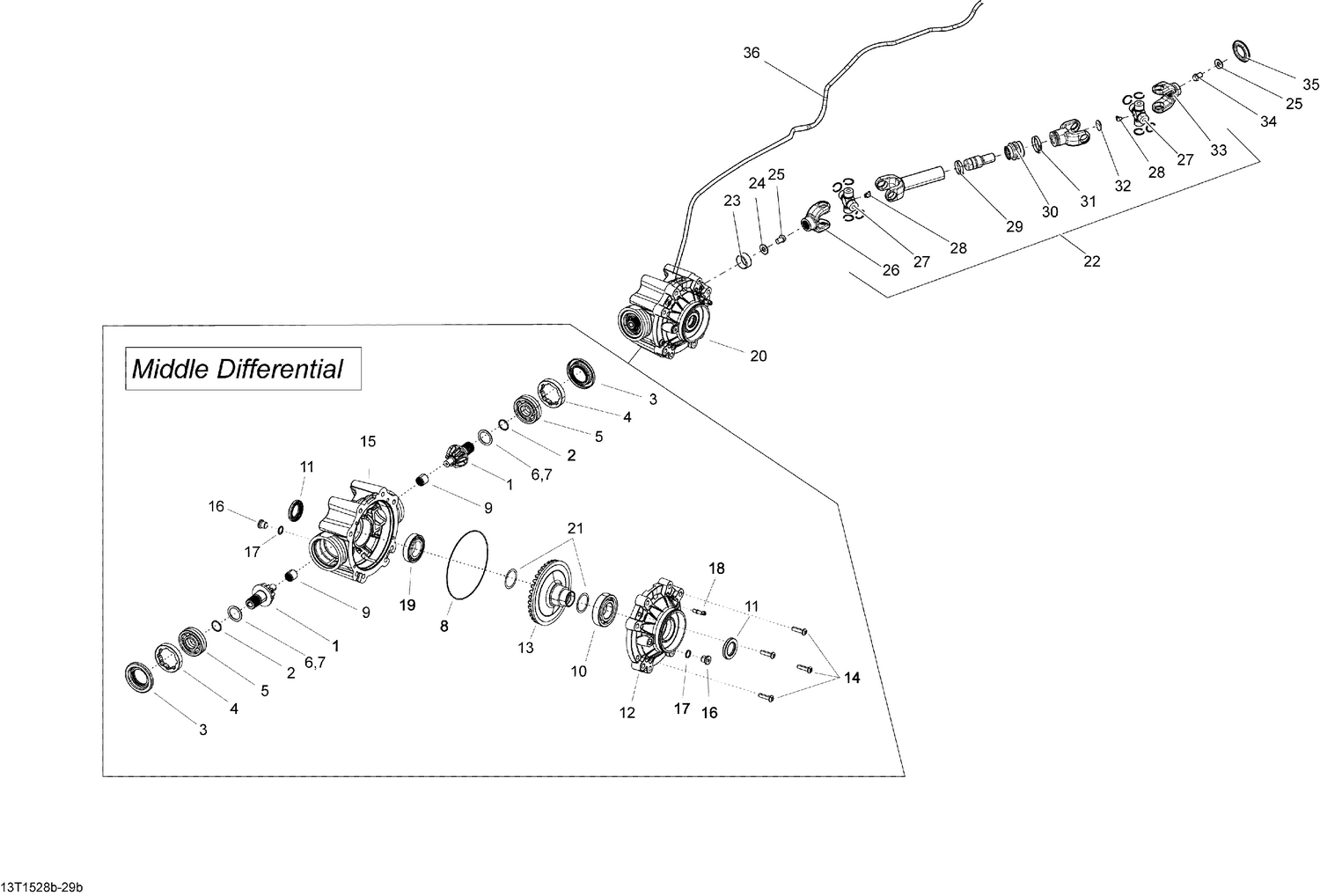

08- Drive System, Rear Middle Diff_13t1528b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION 10 TOOTH - Call your local BRP dealership
705501571
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
705500267
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
Oil Seal
705401481
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Nut
705500987
Superseded by 705502059
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ball Bearing
705500260
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pinion Gear Shim
705501162
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Pinion Gear Shim 1.67 mm
703500049
Superseded by 705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seal
705500265
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
Needle Bearing
705501408
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Ball Bearing
705501389
Superseded by 705502738
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Seal
705501996
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cover Machined
705501918
|
|||
|
Unavailable |
|||
|
#13
Gear, 36 Tooth
705501397
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership
205483046
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
Middle Differential Crakcase Machined
705501920
|
|||
|
Unavailable |
|||
|
#16
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
VENT VALVE - Call your local BRP dealership
705500893
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ball Bearing
705500749
Superseded by 705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Final Drive Unit
705501917
Superseded by 705502230
|
|||
|
Available to order. Add to View Price |
|||
|
#21
Differential Shim 0.02 mm
703500548
Superseded by 705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
Shaft Ass'y Kit
705501258
Superseded by 703500991
|
$328.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Wear Ring
705400036
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
Fixe Yoke
715900101
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Universal Joint
715500371
Superseded by 715900326
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Grease Fitting
715900184
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
Crimp Clamp
509000045
Superseded by 293650333
|
$4.49 | ||
|
Unavailable |
|||
|
#30
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
Oetiker Gear Clamp 44.0MM
293650138
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER - Call your local BRP dealership
715900187
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Fixed Joint
715900129
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Hex Flange Screw M12 X 16
250000359
Superseded by 250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
