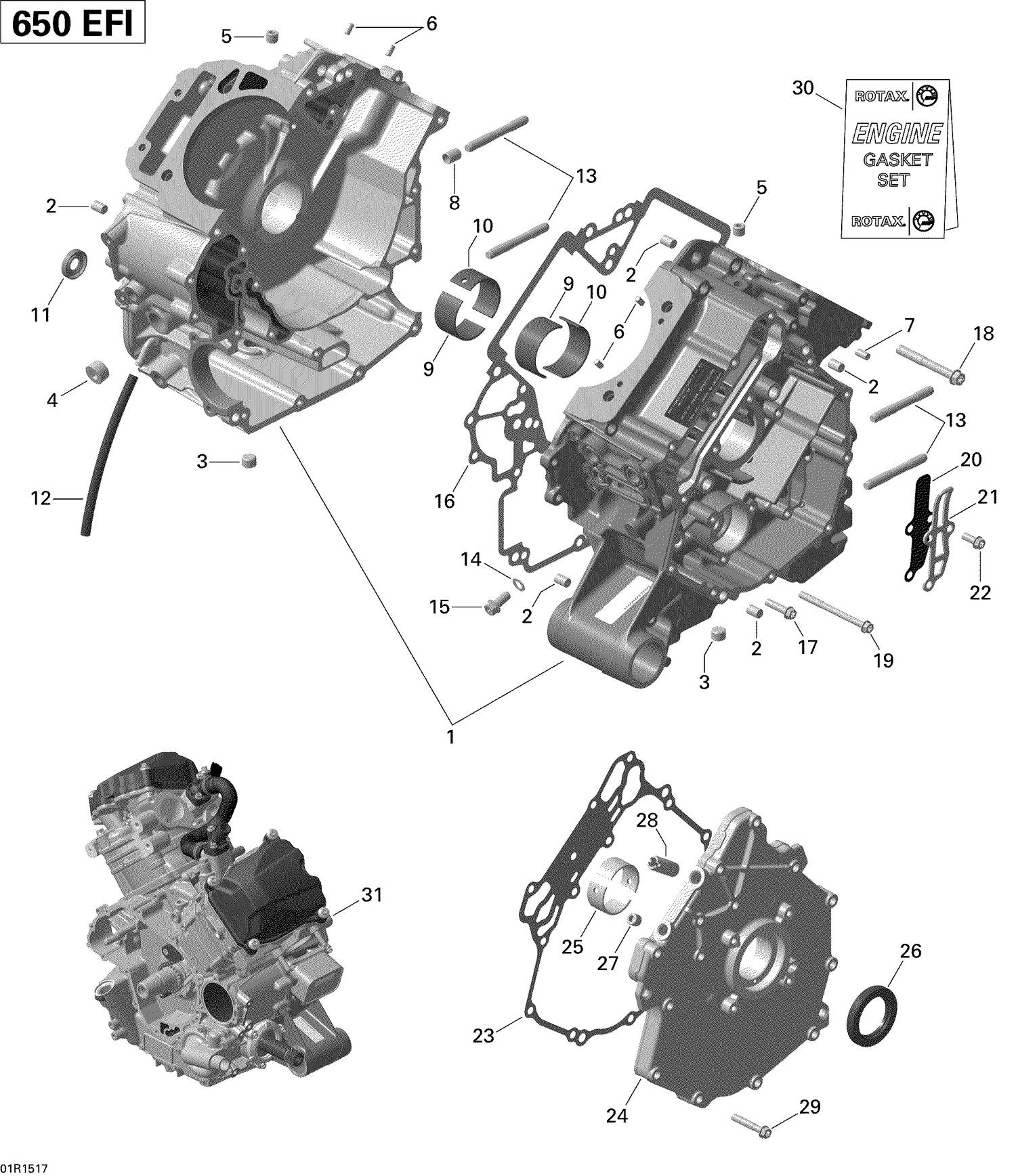

01- Crankcase _01r1517 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Crankcase Ass'y
420685253
|
$1,150.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Plug Screw M12x1,5
420840657
Superseded by 420840658
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
Plug Screw M18 X 1.5 - Call your local BRP dealership
420240170
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
Plug Screw M10 X 1
420641323
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Needle Pin
420932780
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Dowel Pin 10 X 13
420929670
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Plain Bearing
420233960
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Plain Bearing
420233965
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Seal
420650310
Superseded by 420650315
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Was 415110000 Polyurethane Hose 5.2 mm
219704414
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Stud
420240814
Superseded by 420240816
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
Sealing Ring
420950141
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Torx Flange Screw M8 X 16
420440852
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Gasket
420651225
Superseded by 420651227
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Flange Screw M6 X 25
420641238
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M8 X 65
420440402
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
Torx Flange Screw M6 X 75
420440657
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Reed Valve
420224720
Superseded by 420224721
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Reed Valve Stop
420224725
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Torx Flange Screw M6 X 16
420641048
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Gasket
420651211
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PTO Cover Ass'y
420612128
Superseded by 420612335
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Bearing Sleeve
420233995
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Oil Seal
420631933
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Plug Screw M10 X 1
420641323
|
$14.49 | ||
|
Unavailable |
|||
|
#28
Hose Nipple
420256332
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
Gasket Set
420684144
Superseded by 420684154
|
$381.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Part - Long Block, 650EFI
|
|||
|
Unavailable |
|||
